2020 Kawasaki Teryx KRX® 1000 Ignition System Diagram

← All diagrams

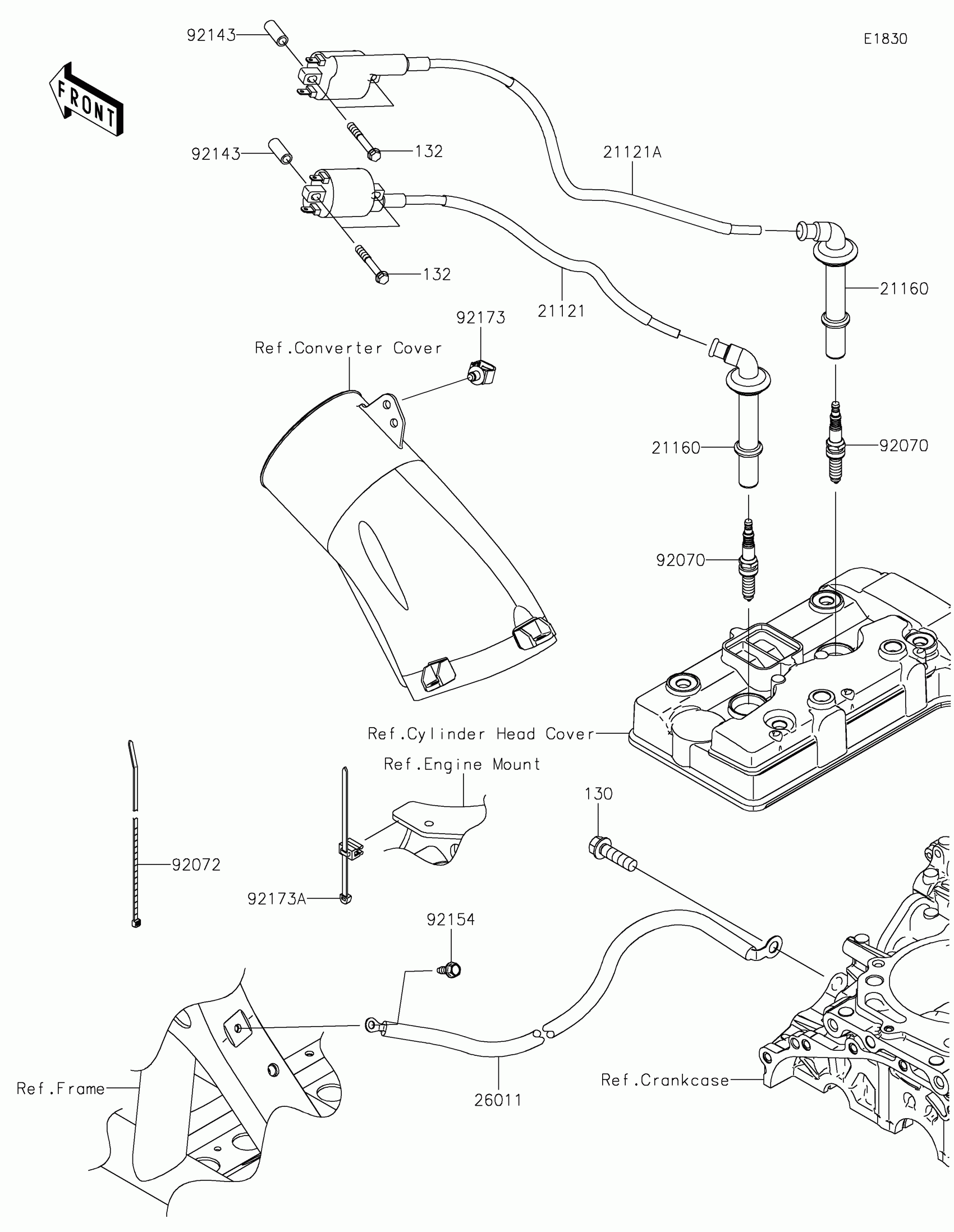

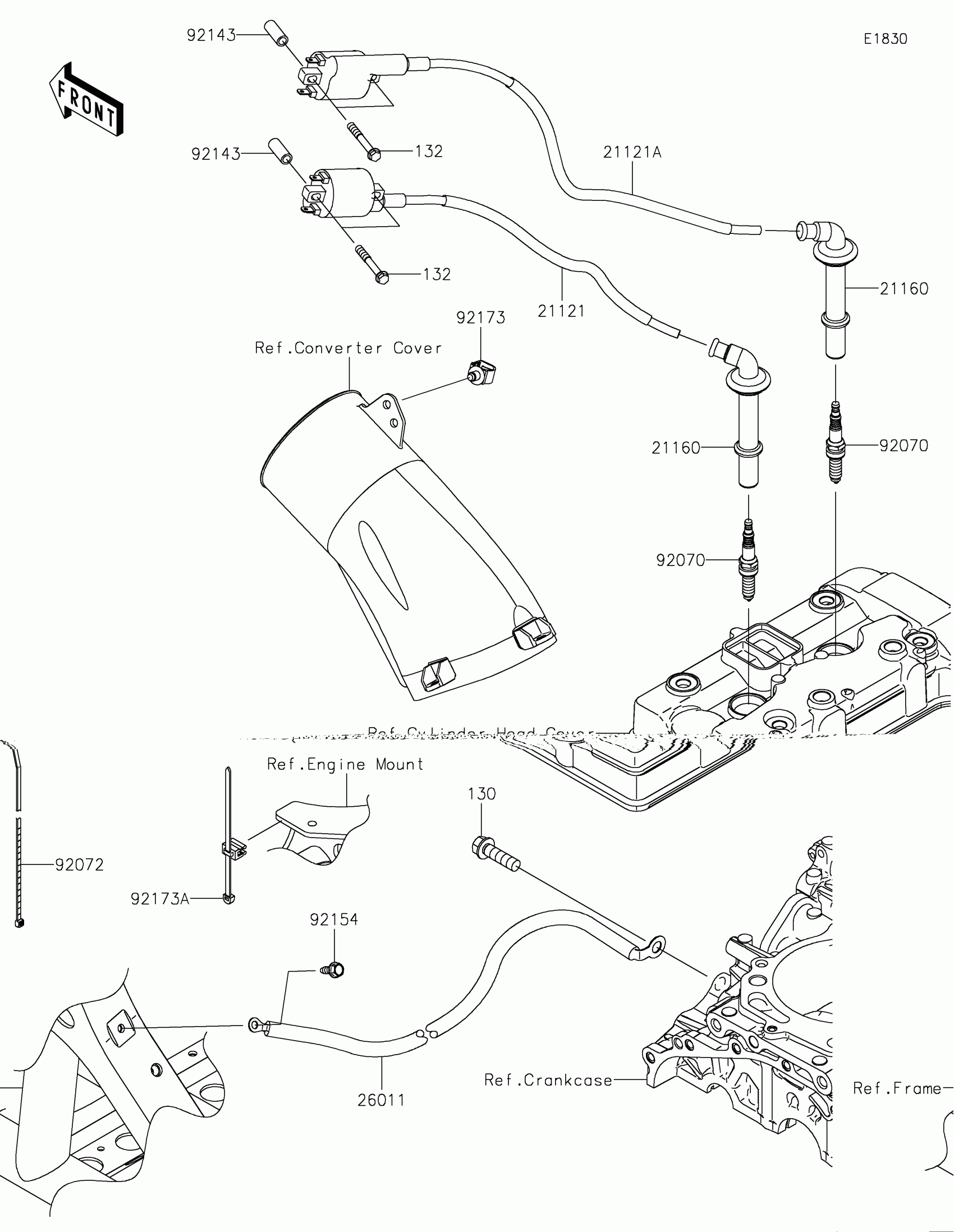

Find the part on the Ignition System diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Kawasaki Teryx KRX® 1000 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21121

COIL-IGNITION,#1

21121-0736

1

$71.36

In stock

21121A

COIL-IGNITION,#2

21121-0737

1

$72.70

In stock

21160

CAP-ASSY-PLUG

21160-0027

1

$45.82

In stock

26011

WIRE-LEAD

26011-1874

1

$39.22

In stock

92070

1

$18.98

In stock

92072

BAND,L=292.1

92072-3509

1
Out of stock

92143

COLLAR

92143-1046

1

$4.42

In stock

92154

BOLT,FLANGED,6X16

92154-0551

1

$1.44

In stock

92173

CLAMP,12MM DIA.

92173-0736

1

$4.01

In stock

92173A

CLAMP

92173-2089

1

$2.29

In stock

130

BOLT-FLANGED,10X35

130BA1035

1

$2.63

In stock

132

1

$3.53

In stock
