2020 Kawasaki Teryx KRX® 1000 Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2020 Kawasaki Teryx KRX® 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

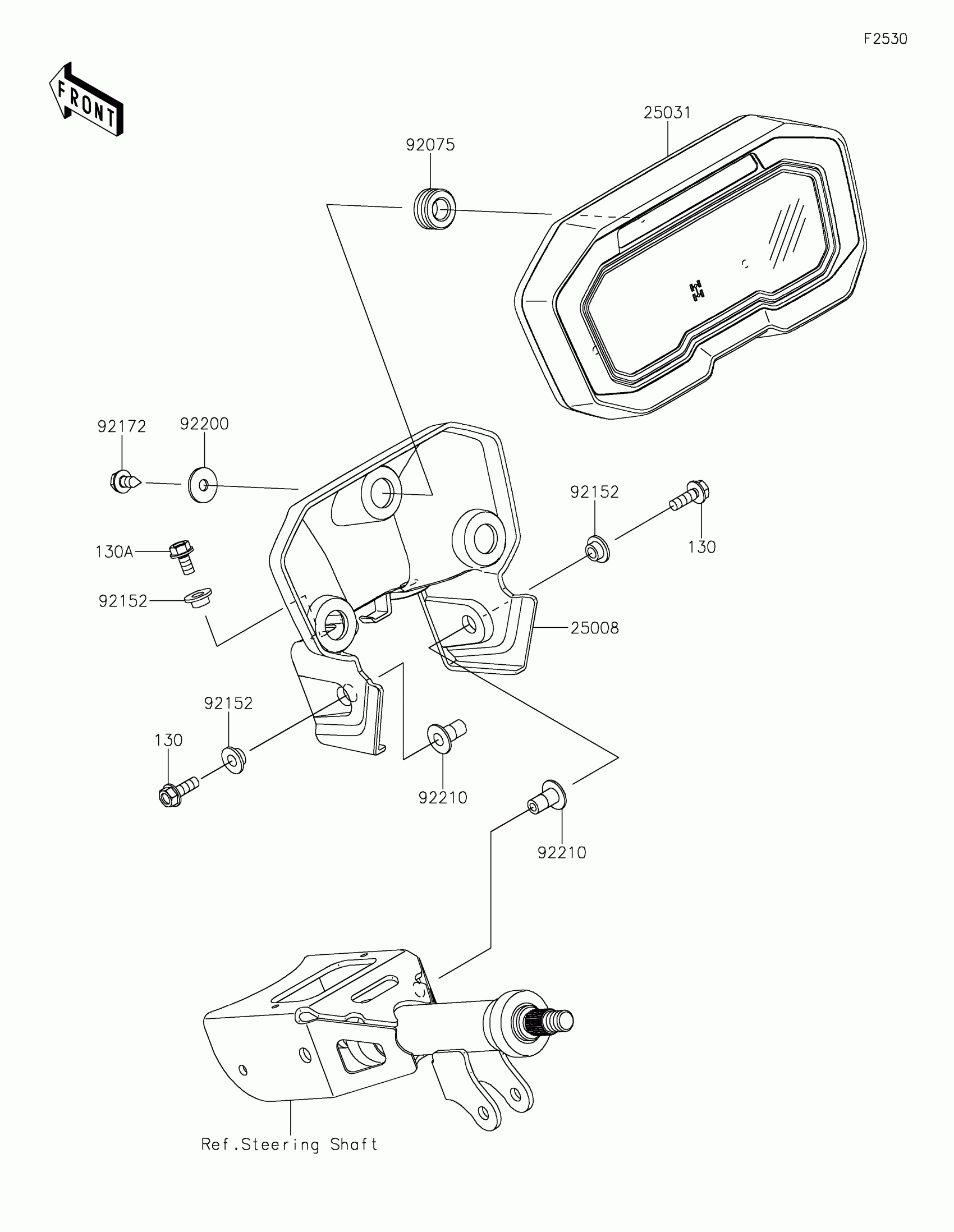

2020 Kawasaki Teryx KRX® 1000 Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

25008

BRACKET-METER

25008-0049

1

$5.39

In stock

25031

METER-ASSY,LCD

25031-0850

1

$474.83

In stock

92075

DAMPER

92075-1898

1

$3.72

In stock

92152

COLLAR,6.5X10X6.2

92152-1511

1

$3.49

In stock

92172

SCREW,TAPPING,6X16

92172-1313

1

$1.39

In stock

92200

WASHER,6.5X20X1.6

92200-0283

1
Out of stock

92210

NUT,METER BKT SIDE

92210-1760

1

$2.46

In stock

130

BOLT-FLANGED,6X18

130BA0618

1

$1.36

In stock

130A

BOLT-FLANGED,6X12

130CA0612

1

$3.15

In stock
