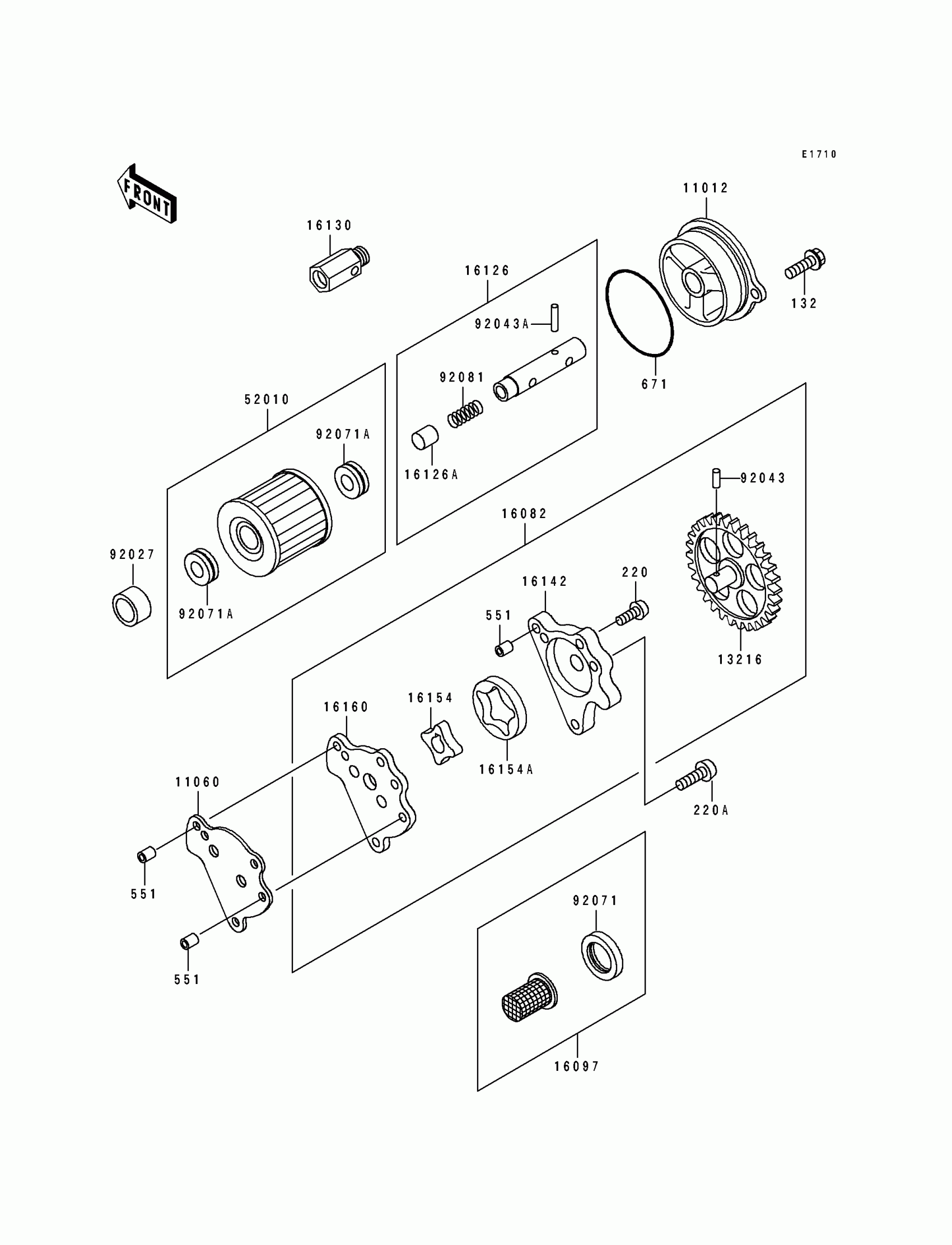

Kawasaki Tengai Oil Pump Diagram

#

Description
Price

11012

CAP,OIL FILTER

11012-1695

Unavailable

11060

GASKET,OIL PUMP

11060-1115

$4.58

13216

GEAR-COMP,OIL PUMP

13216-1110

Unavailable

16082

PUMP-ASSY-OIL

16082-1088

$165.03

16097

FILTER-ASSY-OIL

16097-1001

$9.30

16126

PISTON-ASSY,VALVE,BY-PASS

16156-002

$18.77

16126A

VALVE

92136-002

$4.14

16130

VALVE-ASSY-RELIEF

16130-1001

$41.95

16142

COVER-PUMP

16142-1078

$38.81

16154

ROTOR-PUMP,INNER

16154-1069

$35.48

16154A

ROTOR-PUMP,OUTER

16154-1070

$35.48

16160

BODY

16160-1137

$36.42

52010

ELEMENT-OIL FILTER

16099-004

$7.06

92027

COLLAR,13X20X9

92027-1695

$7.54

92043

PIN,DOWEL,4X12.8

92042-041

$5.71

92043A

PIN,SPRING,2.2X13.5

92043-123

$4.17

92071

GROMMET,OIL STRAINER

92071-100

$4.14

92071A

GROMMET,OIL FILTER

92071-101

$4.14

92081

SPRING,PISTON

92081-043

$4.14

132

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

220

SCREW-PAN-CROS,6X16

220B0616

Unavailable

220A

SCREW PAN HEAD 6X25

220B0625

Unavailable

551

PIN-DOWEL,6X8

551A0608

$3.53

671

O RING,55MM

671B2555

$4.67
