1991 Kawasaki Tengai Radiator Diagram

← All diagrams

Find the part on the Radiator diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

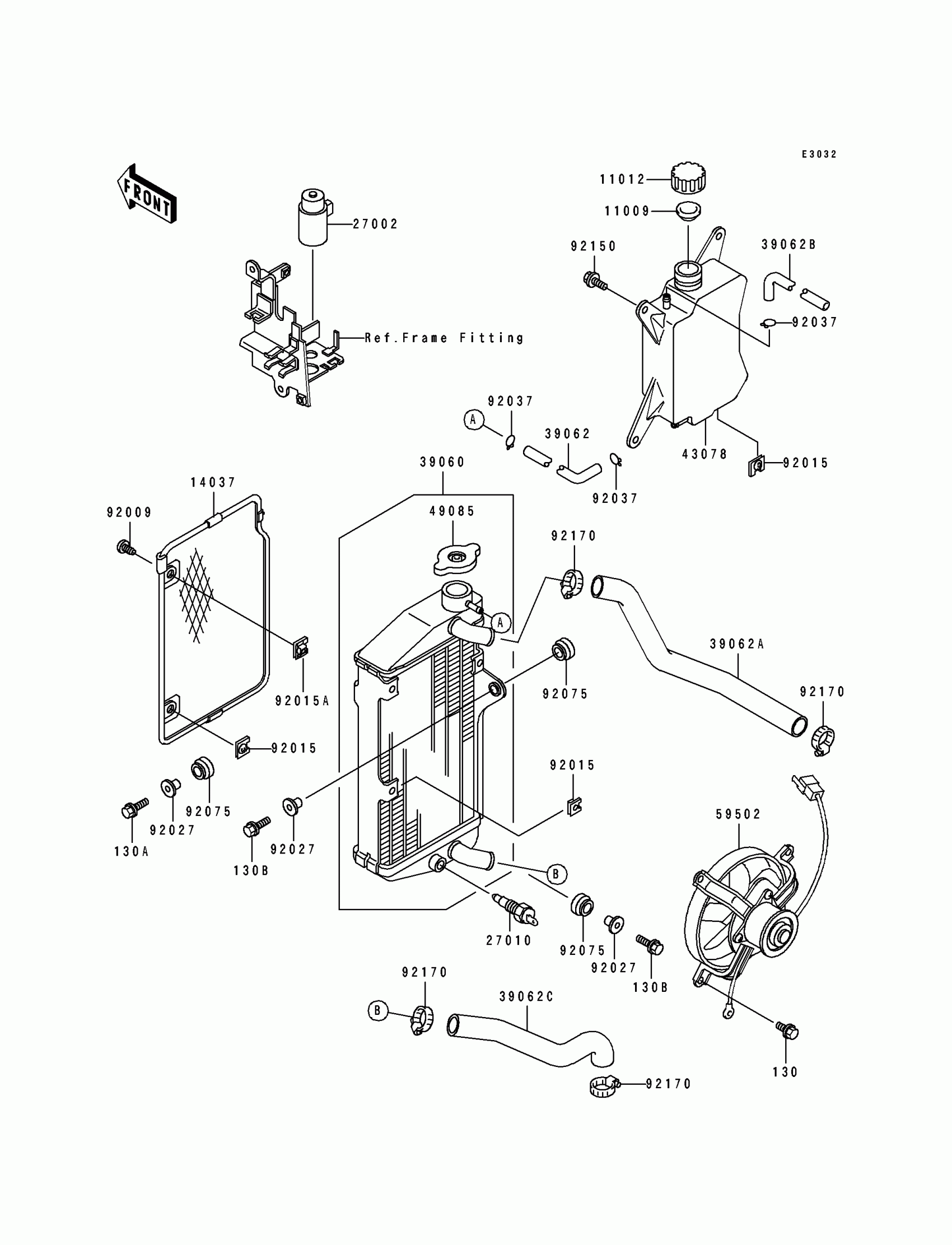

1991 Kawasaki Tengai Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11012

CAP

11012-1084

1

$1.31

In stock

14037

SCREEN

14037-1088

1

$98.73

In stock

27002

RELAY-ASSY

27002-1051

1

$49.55

In stock

27010

SWITCH,FAN

27010-1167

1

$131.65

In stock

39060

RADIATOR

39060-1074

1
Out of stock

39062

HOSE-COOLING

39062-1125

1

$23.82

In stock

39062A

1

$49.75

In stock

39062B

1

$23.82

In stock

39062C

1

$37.36

In stock

43078

RESERVOIR

43078-1083

1

$58.48

In stock

49085

CAP-ASSY-PRESSURE

49085-1003

1

$33.98

In stock

59502

FAN-ASSY

59502-1082

1

$609.59

In stock

92009

SCREW,6X12

92009-1480

1
Out of stock

92015

NUT

92015-1487

1

$3.80

In stock

92015A

NUT,6MM

92015-1758

1

$5.45

In stock

92027

COLLAR,6.5X10X14.1

92027-1183

1

$4.37

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92075

DAMPER

92075-1352

1

$5.16

In stock

92150

BOLT,FLANGED,6X16

92150-1506

1

$3.97

In stock

92170

CLAMP,COOLING HOSE

92170-1033

1

$11.99

In stock

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

130A

BOLT-FLANGED

130J0620

1
Out of stock

130B

BOLT-FLANGED,6X25

130J0625

1
Out of stock
