1991 Kawasaki Tengai Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

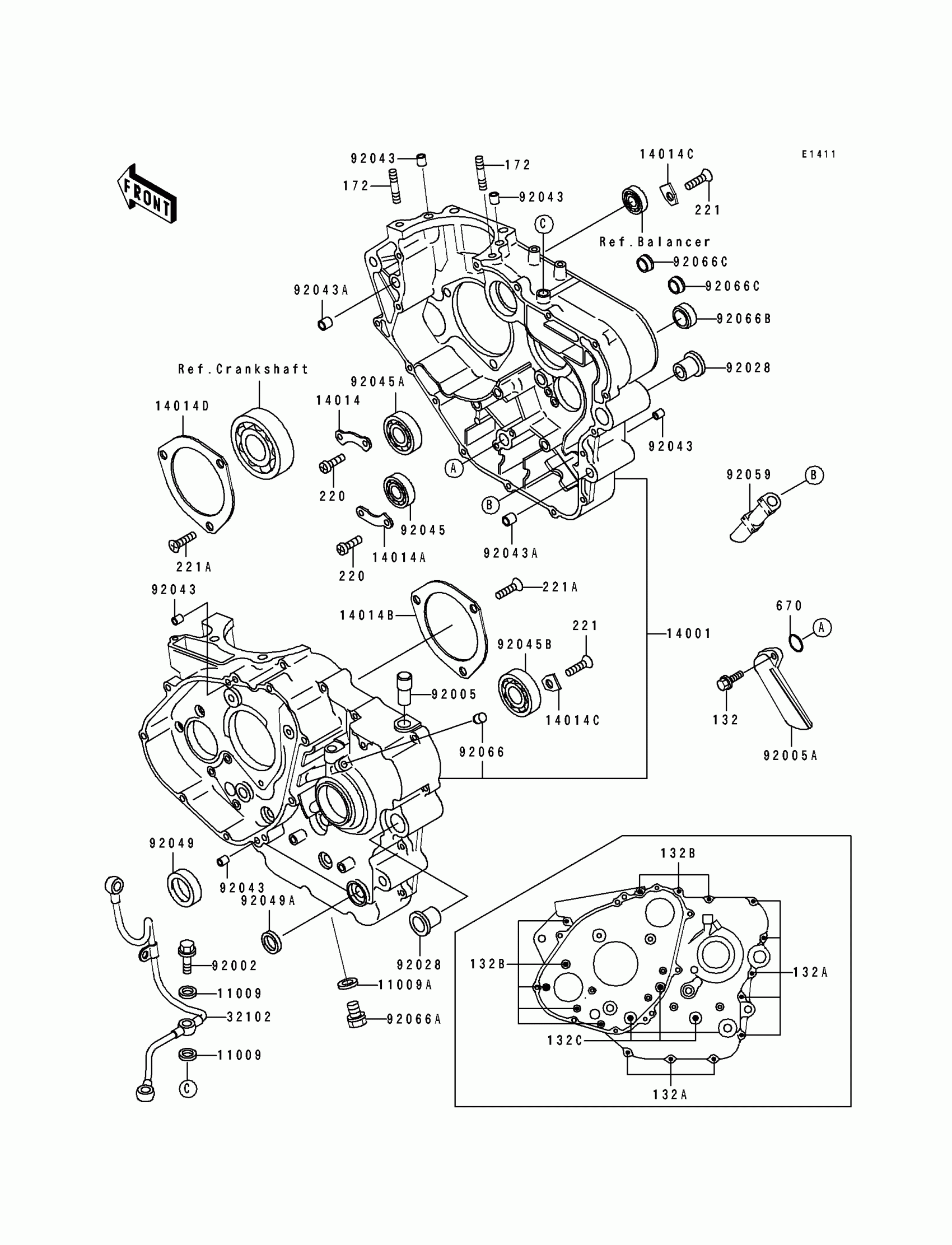

1991 Kawasaki Tengai Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,10X14.5X1.5

11009-1105

1

$5.15

In stock

11009A

GASKET,12X22X2

92065-097

1

$0.76

In stock

14001

SET-CRANKCASE

14001-5266

1
Out of stock

14014

PLATE-POSITION

14014-037

1
Out of stock

14014A

PLATE-POSITION

14014-1015

1
Out of stock

14014B

PLATE-POSITION

14014-1051

1
Out of stock

14014C

PLATE-POSITION

14014-1057

1
Out of stock

14014D

PLATE-POSITION

14014-1083

1
Out of stock

32102

PIPE,CRANKCASE-HEAD

32102-1353

1

$111.49

In stock

92002

BOLT,BANJO,10X25

92002-1170

1

$9.22

In stock

92005

FITTING,BREATHER

14067-006

1

$19.78

In stock

92005A

FITTING

92005-1152

1
Out of stock

92028

BUSHING,SWING ARM

92028-1261

1

$16.31

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92043A

PIN,11.5X14X14

92043-1279

1

$3.97

In stock

92045

BEARING-BALL,#6905

92045-036

1

$24.62

In stock

92045A

BEARING-BALL,TMB205

92045-1105

1

$24.68

In stock

92045B

1

$44.18

In stock

92049

SEAL-OIL,TC32457

92049-1159

1
Out of stock

92049A

SEAL-OIL

92050-082

1
Out of stock

92059

TUBE,BREATHER

92059-1833

1

$13.54

In stock

92066

PLUG,OIL LINE,7.2X8

92066-1012

1

$5.66

In stock

92066A

1

$4.88

In stock

92066B

PLUG,RCA207

92066-1264

1

$7.88

In stock

92066C

PLUG

92066-1282

1

$5.66

In stock

132

BOLT-FLANGED-SMALL

132G0620

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X50

132J0650

1
Out of stock

132C

BOLT-FLANGED-SMALL

132J0880

1
Out of stock

172

BOLT-STUD,8X22

172G0822

1
Out of stock

220

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

221

1

$1.73

In stock

221A

1

$0.63

In stock

670

O RING,18MM

670D2018

1

$1.61

In stock
