1991 Kawasaki Tengai Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

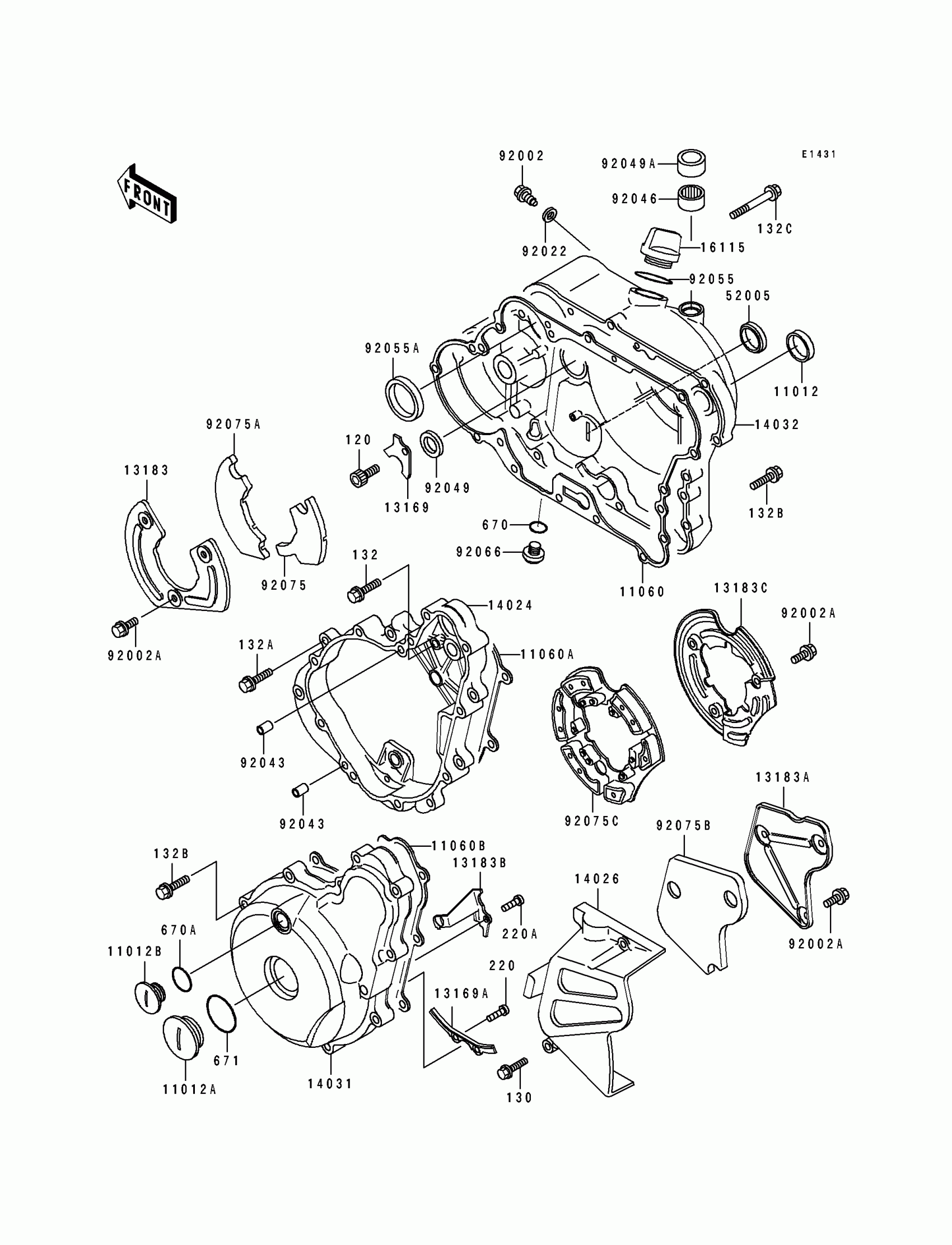

1991 Kawasaki Tengai Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1567

1

$9.49

In stock

11012A

CAP

11012-1693

1
Out of stock

11012B

CAP,TOP MARK

11012-1694

1

$7.39

In stock

11060

GASKET,CLUTCH COVER

11060-1111

1

$33.51

In stock

11060A

GASKET,GENERATOR CASE COVER

11060-1112

1
Out of stock

11060B

GASKET,GENERATOR COVER

11060-1113

1
Out of stock

13169

PLATE,OIL SEAL

13169-1735

1

$7.49

In stock

13169A

1

$8.63

In stock

13183

PLATE

13183-1122

1
Out of stock

13183A

PLATE

13183-1133

1
Out of stock

13183B

PLATE,GENERATOR

13183-1144

1
Out of stock

13183C

PLATE

13183-1146

1
Out of stock

14024

COVER,GENERATOR CASE

14024-1773

1
Out of stock

14026

COVER-CHAIN

14026-1146

1
Out of stock

14031

COVER-GENERATOR

14031-1237

1
Out of stock

14032

COVER-CLUTCH

14032-1275

1

$355.97

In stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

52005

GAUGE,OIL LEVEL

52005-1009

1

$14.45

In stock

92002

BOLT,FLANGED,6X9.5

92002-1356

1

$5.64

In stock

92002A

BOLT,6X8

92002-1944

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,SCY 15X30X7

92049-1158

1
Out of stock

92049A

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92055A

RING-O,62.6X66X3.1

92055-1221

1

$7.04

In stock

92066

PLUG,DRAIN

92066-1156

1

$8.93

In stock

92075

DAMPER

92075-1939

1

$12.86

In stock

92075A

DAMPER

92075-1940

1

$13.71

In stock

92075B

DAMPER

92075-1943

1
Out of stock

92075C

DAMPER

92075-1959

1
Out of stock

120

BOLT-SOCKET,6X10

120P0610

1
Out of stock

130

BOLT-FLANGED,6X25

130J0625

1
Out of stock

132

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X30

132J0630

1
Out of stock

132C

BOLT-FLANGED-SMALL

132J0680

1
Out of stock

220

SCREW PAN HEAD 5X10

220B0510

1
Out of stock

220A

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

670

O RING,11MM

670B2011

1
Out of stock

670A

O RING,18MM

670B2018

1

$1.25

In stock

671

O RING,40MM

671B2540

1

$4.93

In stock
