1991 Kawasaki Tengai Cylinder/piston Diagram

← All diagrams

Find the part on the Cylinder/piston diagram for your 1991 Kawasaki Tengai, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

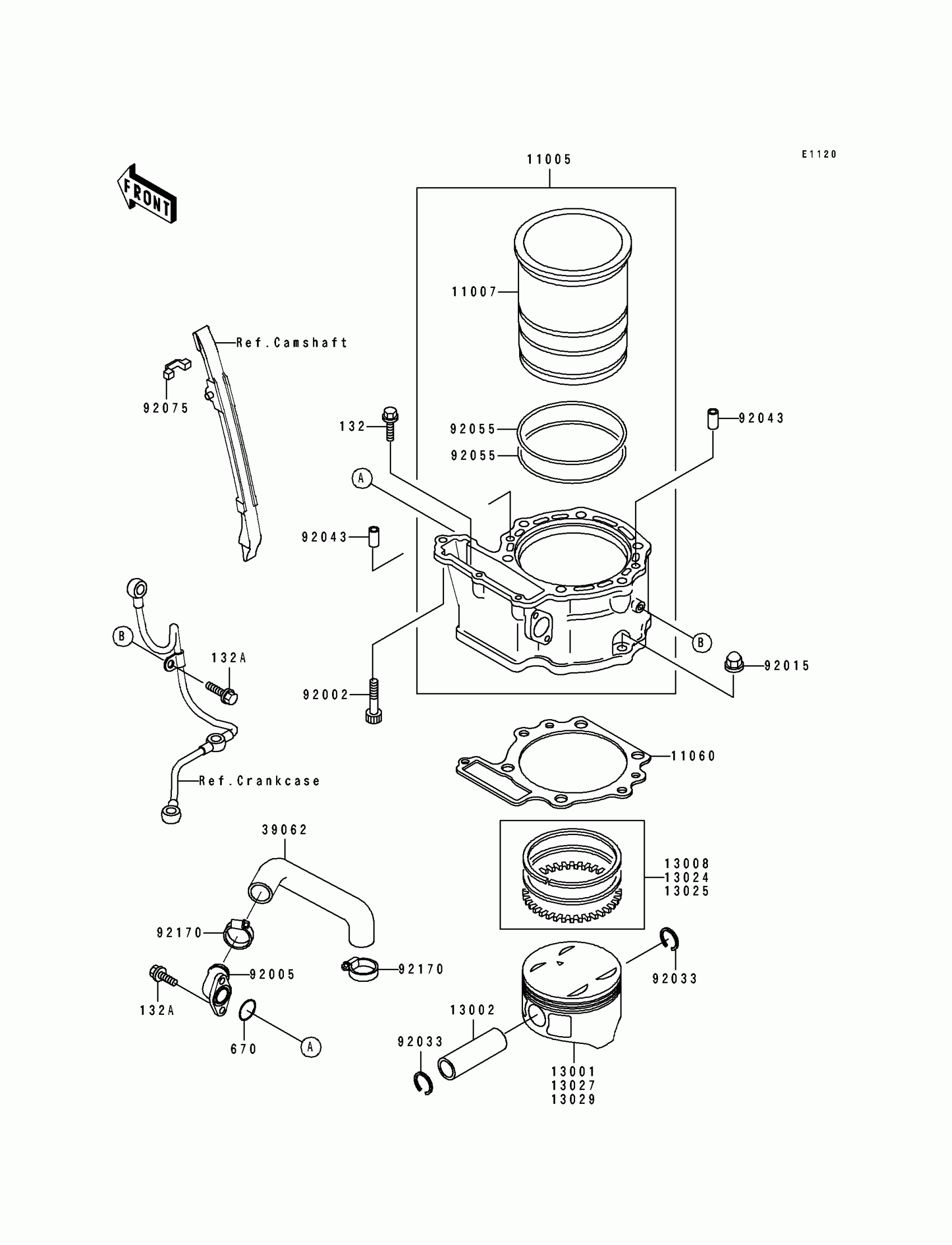

1991 Kawasaki Tengai Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11005

CYLINDER-ENGINE

11005-1588

1
Out of stock

11007

LINER-CYLINDER

11007-1093

1
Out of stock

11060

1

$10.86

In stock

13001

PISTON-ENGINE,STD

13001-1284

1
Out of stock

13002

PIN-PISTON

13002-1069

1
Out of stock

13008

RING-SET-PISTON,STD

13008-1081

1
Out of stock

13024

RING-SET-PISTON LL,O/S 1.00

13024-1071

1
Out of stock

13025

RING-SET-PISTON L,O/S 0.50

13025-1078

1
Out of stock

13027

PISTON-ENGINE LL,O/S 1.00

13027-1153

1
Out of stock

13029

PISTON-ENGINE L,O/S 0.50

13029-1176

1
Out of stock

39062

HOSE-COOLING,PUMP-CYLINDER

39062-1216

1
Out of stock

92002

BOLT,SOCKET,8X35

92002-1409

1

$4.85

In stock

92005

FITTING

92005-1122

1
Out of stock

92015

NUT,CAP,8MM,BLACK

92015-1174

1
Out of stock

92033

RING-SNAP

92033-1226

1

$3.10

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92055

RING-O

92055-1368

1

$15.46

In stock

92075

DAMPER

92075-1968

1

$4.85

In stock

92170

CLAMP,COOLING HOSE

92170-1033

1

$11.99

In stock

132

BOLT-FLANGED-SMALL

132G0625

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X12

132J0612

1
Out of stock

670

O RING,18MM

670B2018

1

$1.25

In stock
