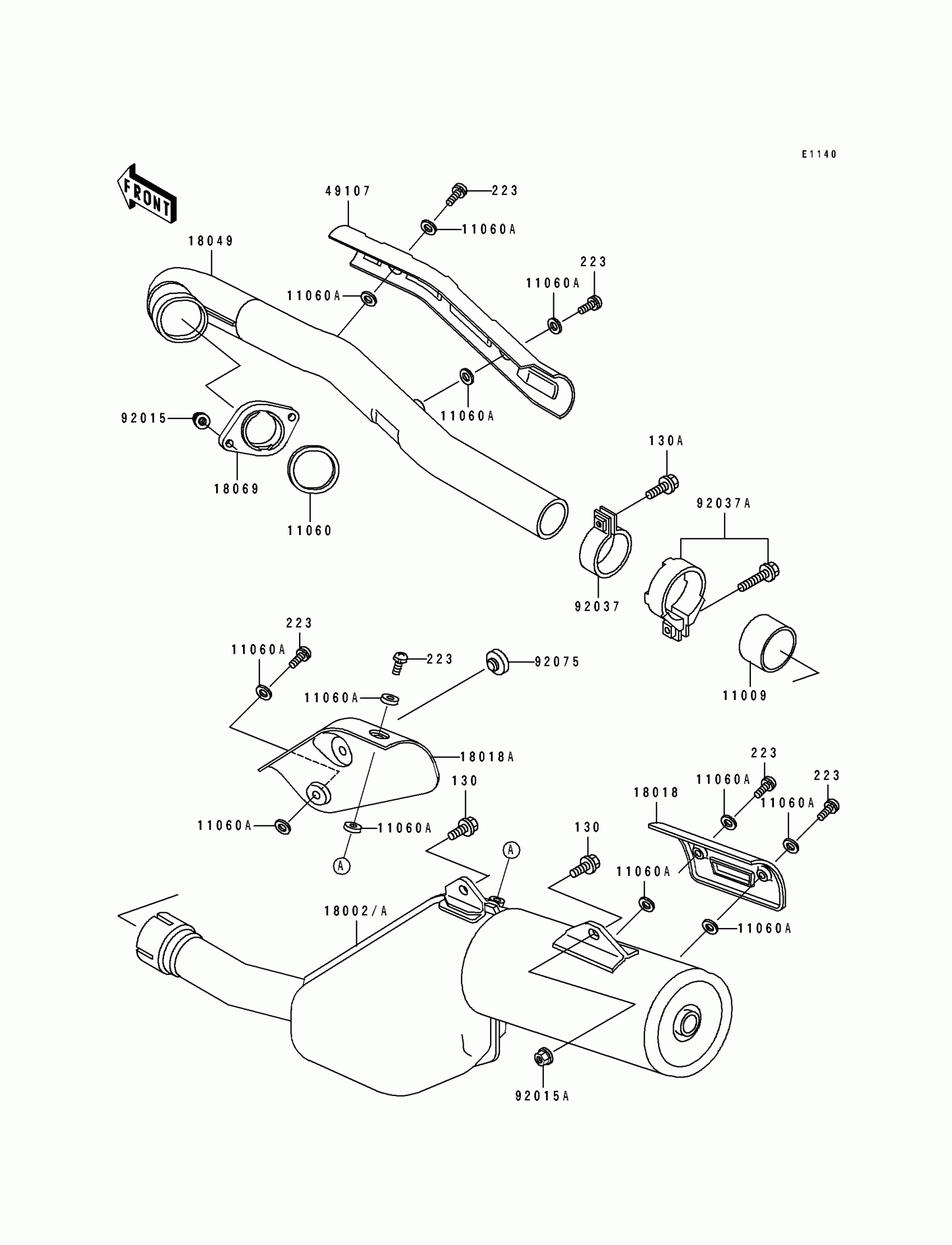

Kawasaki Tengai Muffler Diagram

#

Description
Price

11009

GASKET,EXHAUST PIPE CONNECTING

11009-1666

$28.56

11060

GASKET,EXHAUST PIPE HOLDER

11060-1108

$7.01

11060A

GASKET,6.2X11.5X1.5

11060-1109

$3.49

18002

BODY-COMP-MUFFLER

18002-1886

Unavailable

18018

PLATE-HEAT GUARD

18018-1053

$18.34

18018A

PLATE-HEAT GUARD

18018-1082

$31.14

18049

PIPE-EXHAUST

18049-1460

$234.94

18069

HOLDER-EXHAUST PIPE

18069-1063

$33.48

49107

COVER-EXHAUST PIPE,FR

49107-1073

$75.00

92015

NUT,CAP,8MM,BLACK

92015-1174

$3.81

92015A

NUT,8MM

92015-1402

$3.57

92037

CLAMP,43MM

92037-1888

$18.47

92037A

CLAMP

92037-1910

$24.93

92075

DAMPER RUBB MAIN STND

92075-005

$3.29

130

BOLT-FLANGED,8X16

130J0816

Unavailable

130A

BOLT-FLANGED,8X20

130J0820

Unavailable

223

SCREW-PAN-WS-CROS

223C0610

$3.14
