1980 Yamaha SS440D Primary Sheave Diagram

← All diagrams

Find the part on the Primary Sheave diagram for your 1980 Yamaha SS440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

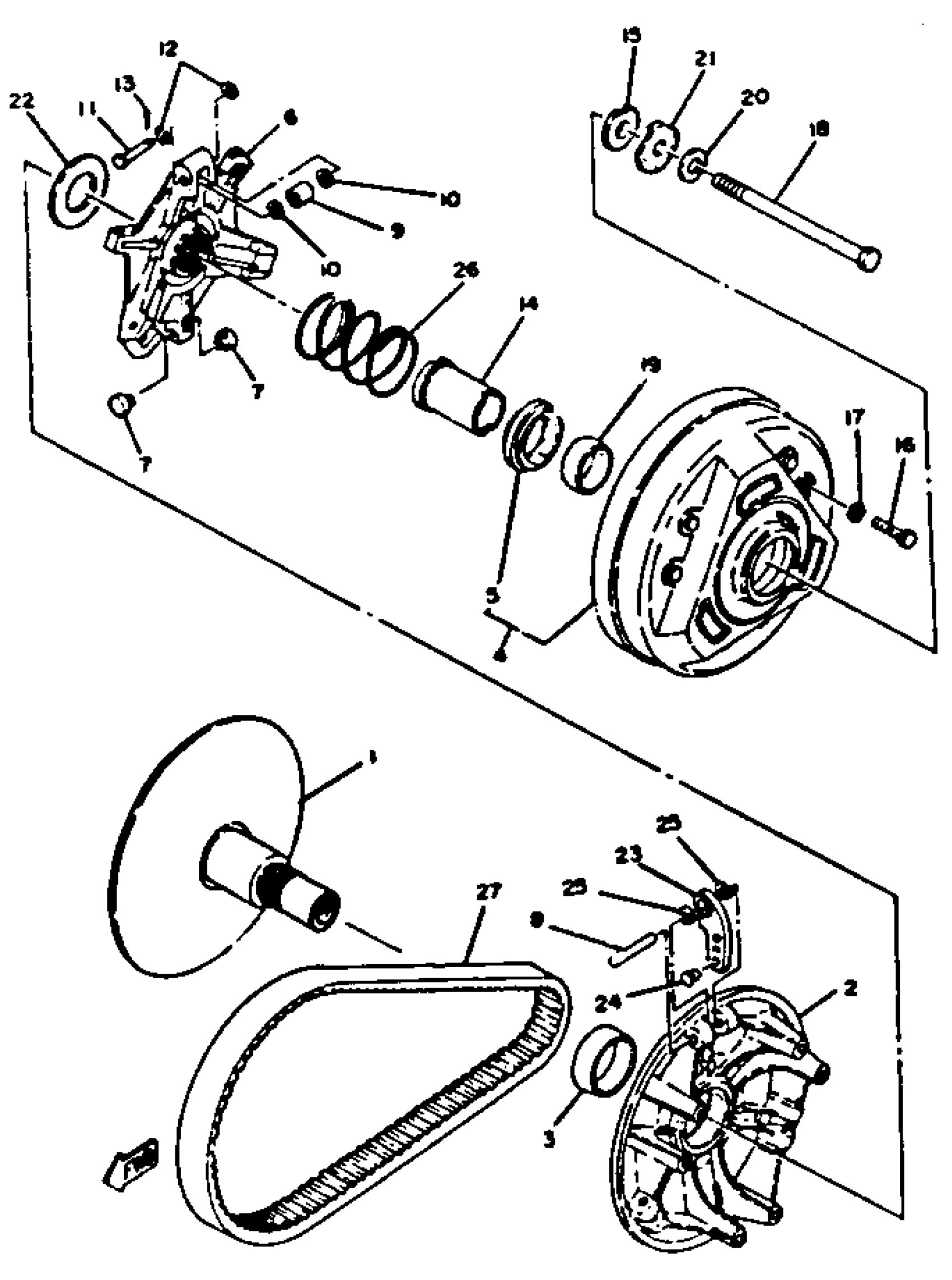

1980 Yamaha SS440D Primary Sheave Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PRI FIXED SHEAVE

8J0-17610-01-00

1
Out of stock

2

SHEAVE, PRI SLIDING

8E7-17621-01-00

1
Out of stock

3

BUSH, SPEC''L SHAPE

90389-41021-00

1
Out of stock

4

PRI. SHEAVE CAP

8E7-W1762-00-00

1
Out of stock

5

SEAT, SPRING

8E7-17644-02-00

1
Out of stock

6

SPIDER

8A7-17627-00-00

1
Out of stock

7

SLIDER

8F2-17653-00-00

1

$10.03

In stock

8

PIN, DOWEL (8V8)

93607-44190-00

1
Out of stock

9

COLLAR (8A7)

90387-06560-00

1

$6.32

In stock

10

WASHER (8J0)

90202-06113-00

1

$3.32

In stock

11

PIN, W/HOLE (8G6)

90240-06062-00

1

$8.97

In stock

12

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

13

PIN, COTTER

91490-25020-00

1

$2.94

In stock

14

CLUTCH TUNE KIT

(8G9-00000-50-00)

1
Out of stock

14

CLUTCH SUB ASSEMBLY

8K2-17602-09-00

1
Out of stock

14

EIGHT KIT

8K4-17000-10-00

1
Out of stock

14

COLLAR

90387-28721-00

1
Out of stock

15

SPACER 1

8J0-17654-00-00

—

$6.58

In stock

16

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

BOLT

90101-13406-00

1
Out of stock

19

BUSH, SPEC''L SHAPE

90389-34020-00

1
Out of stock

20

WASHER, SPRING

90204-13010-00

1
Out of stock

21

WASHER, LOCK

90215-13047-00

1
Out of stock

22

WASHER, PLATE

90201-32710-00

1
Out of stock

23

WEIGHT

8K4-17632-00-00

1
Out of stock

24

RIVET, COUNTER SUNK (8G8)

90261-06017-00

—
Out of stock

25

WASHER, PLATE(8E7)

90201-07641-00

—

$3.32

In stock

26

SPRING, compression

90501-50578-00

1
Out of stock

27

V-BELT

89X-17641-01-00

1

$48.52

In stock

27

CLUTCH TUNE KIT

(8G9-00000-50-00)

1
Out of stock

27

CLUTCH SUB ASSEMBLY

8K2-17602-09-00

1
Out of stock

27

EIGHT KIT

8K4-17000-10-00

1
Out of stock
