TRACK SUSPENSION 2

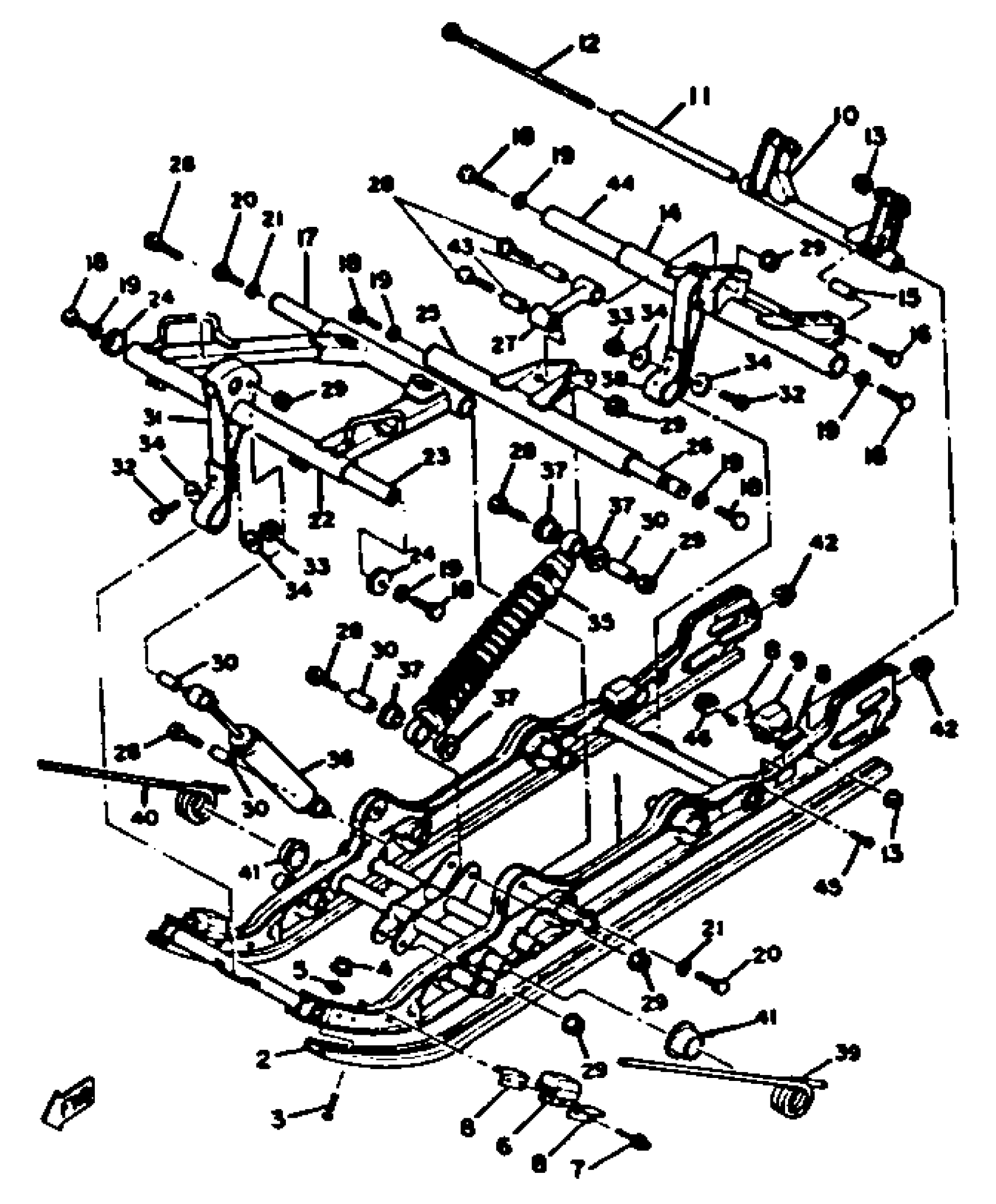

1980 Yamaha SS440D Track Suspension 2 Diagram
Find the part on the Track Suspension 2 diagram for your 1980 Yamaha SS440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
FRAME SLIDING
(8K4-47410-00-00)
2
RUNNER, SLIDING 1
8K2-47421-00-XX
3
SCREW, FLAT HEAD
92702-08060-00
6
DAMPER 2
8K2-47457-00-00
9
DAMPER 1
8K2-47456-00-00
10
BRACKET 3
(8K2-47417-00-00)
11
COLLAR
90387-08632-00
12
BOLT, HEXAGON (97101-08245)
97321-08245-00
14
ARM, PIVOT 2
8K2-47332-01-00
16
. BOLT
90101-08557-00
17
SHAFT 3
8K2-47485-00-00
19
WASHER, TTH
92907-10400-00
22
ARM, PIVOT 1
8K2-47331-00-00
24
SPACER
885-47341-00-00
25
BRACKET 5
8K2-47463-00-00
26
SHAFT 2
8K2-47475-00-00
27
BRACKET 6
8K2-47464-00-00
28
. BOLT
90101-08557-00
31
STOPPER 1
8E3-47495-00-00
35
SHOCK ABSORBER
8L8-47480-00-00
36
SHOCK ABSORBER 2
8K4-47481-00-00
37
COLLAR
90387-13758-00
38
STOPPER 1
(8K2-47495-01-00)
39
SPRING, torsion
90508-80410-00
40
SPRING, torsion
90508-80411-00
41
COLLAR
90387-30759-00
43
COLLAR
90387-08775-00
44
SHAFT 2
88T-47475-00-00
