1980 Yamaha SS440D Fuel Tank Diagram

← All diagrams

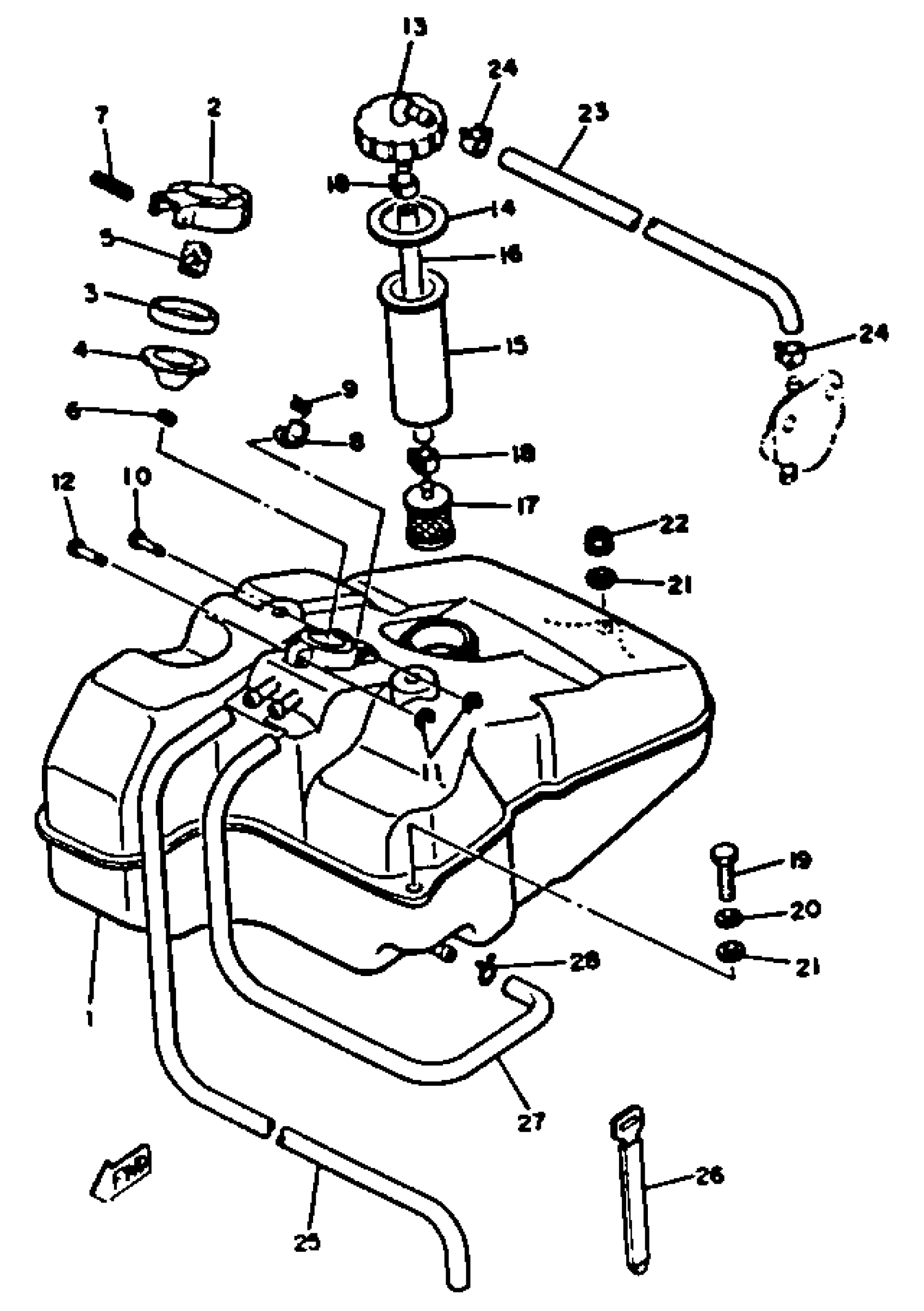

Find the part on the Fuel Tank diagram for your 1980 Yamaha SS440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Yamaha SS440D Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK SET

99999-01675-00

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

DISK,CAP

813-24613-01-00

1

$18.71

In stock

4

GASKET, CAP 1

89A-24641-00-00

1

$9.35

In stock

5

SPRING, CAP

90501-20130-00

1

$6.80

In stock

6

PIN, SPRING

91690-30016-00

1

$5.88

In stock

7

PIN, SPRING

91609-25032-00

1

$1.83

In stock

8

HOOK

83M-24628-00-00

1

$19.68

In stock

9

SPRING, TORSION(81E)

90508-10715-00

—

$5.48

In stock

10

PIN (813)

90249-03017-00

1

$2.25

In stock

11

CIRCLIP (604)

93430-02001-00

1

$6.69

In stock

12

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

13

PIPE, SUCTION 1

8K4-24335-00-00

1
Out of stock

14

GASKET, CAP

8K4-24612-00-00

1
Out of stock

15

PIPE, SUCTION 2

8K4-24336-00-00

1
Out of stock

16

HOSE

91A30-07036-00

1
Out of stock

17

FILTER ASSY

8H5-24560-00-00

1

$11.47

In stock

18

CLIP

90467-11028-00

1

$5.14

In stock

19

BOLT, HEXAGON

97017-08025-00

—

$7.46

In stock

20

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

21

WASHER, PLATE (12X)

90201-087F0-00

—

$3.71

In stock

22

NUT, NYLON

95717-08300-00

—

$2.57

In stock

23

HOSE

(90446-11166-00)

1
Out of stock

24

CLIP

90467-11028-00

1

$5.14

In stock

25

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

—

$23.43

In stock

26

BAND

341-26397-01-00

1
Out of stock

27

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

—

$12.58

In stock

28

CLIP (8L2)

90467-08017-00

—

$7.51

In stock
