1980 Yamaha SS440D Track Drive 2 Diagram

← All diagrams

Find the part on the Track Drive 2 diagram for your 1980 Yamaha SS440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

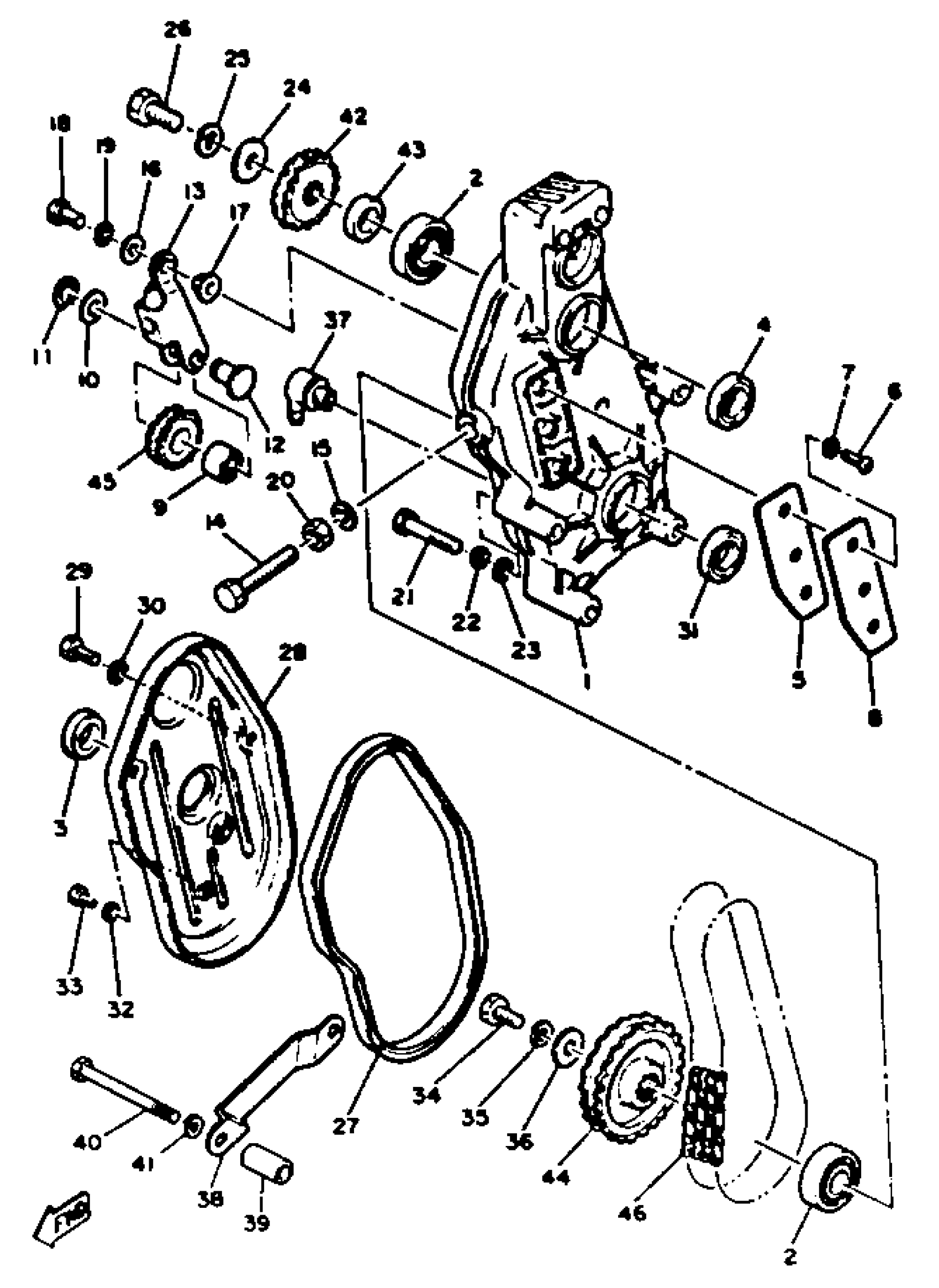

1980 Yamaha SS440D Track Drive 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

8K4-47541-00-00

1
Out of stock

2

BEARING (80N)

93306-20570-00

—

$54.59

In stock

3

CAP

148-22315-00-00

1

$6.40

In stock

4

OIL SEAL (8K4)

93102-27204-00

1

$14.64

In stock

5

GASKET (8K4-47592-00)

86K-47592-00-00

1
Out of stock

6

SCREW, PAN

98507-06014-00

1

$6.18

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

PLATE

8K4-47591-00-00

1
Out of stock

9

BRG,CYL-CAL ROLLER 11G KY

93315-21227-00

1

$39.37

In stock

10

WASHER, PLATE (583)

90201-12631-00

1
Out of stock

11

CIRCLIP(10Y)

99009-12400-00

1

$3.08

In stock

12

PIN, SPECL SHAPE

90249-12135-00

1
Out of stock

13

HOLDER

8K4-47613-00-00

1
Out of stock

14

BOLT, HEXAGON (8F3)

90101-10357-00

—

$6.52

In stock

15

WASHER SEAL 256111730200

90210-10004-00

1

$4.11

In stock

16

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

17

COLLAR (8K4)

90387-08301-00

—

$2.62

In stock

18

BOLT (682)

97013-08025-00

—

$6.80

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

NUT (682)

95380-10700-00

1

$5.78

In stock

21

BOLT

97021-08065-00

1
Out of stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

23

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

24

WASHER, PLATE

90201-140A6-00

1
Out of stock

25

WASHER(6TC)

92907-14100-00

—

$5.62

In stock

26

BOLT

90101-14468-00

1
Out of stock

27

RING, HOUSING

8K4-47558-00-00

1
Out of stock

28

CAP, HOUSING

8K4-47543-00-00

1
Out of stock

29

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

30

WASHER (821)

90210-08002-00

—

$5.68

In stock

31

OIL SEAL (25X44X6-810)

93102-25081-00

—
Out of stock

32

WASHER, SEAL (7G5)

90210-06006-00

—

$5.72

In stock

33

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

34

BOLT(6TD)

97017-10025-00

—

$6.82

In stock

35

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

36

WASHER, PLATE(8BV)

90201-100S7-00

—

$9.75

In stock

37

PIPE, JOINT

8E4-24461-00-00

1
Out of stock

38

STAY 1

8K4-47565-00-00

1
Out of stock

39

COLLAR (8K4)

90387-101A1-00

—

$3.78

In stock

40

BOLT (97321-08090)

97023-08090-00

1
Out of stock

41

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

42

SPROCKET, chain drive (15T)

8K4-17682-50-00

1
Out of stock

42

SPROCKET, chain drive (16T)

8K-41768-26-00

1
Out of stock

42

SPRKT, CHAIN DR 17T

(8K4-17682-70-00)

1
Out of stock

42

SPROCKET, chain drive (18T)

8K4-17682-80-00

1
Out of stock

42

SPRKT, CHAIN DR 19T

(8K4-17682-90-00)

1
Out of stock

43

COLLAR

90387-25798-00

1
Out of stock

44

SPROCKET, CHN DRVN

(8K4-47548-90-00)

1
Out of stock

44

SPROCKET, chain driven (31T)

8K-44758-70-00

1
Out of stock

44

SPROCKET, chain driven (33T)

8K-44758-71-00

1
Out of stock

44

SPROCKET, chain driven (35T)

8K-44758-72-00

1
Out of stock

45

WHEEL

8K4-47612-00-00

1
Out of stock

46

CHAIN (DID35TS-2 64L)

94880-04064-00

1
Out of stock

46

CHAIN (DID35TS-2 66L)

94880-04066-00

1
Out of stock

46

CHAIN (DID35TS-2 68L)

94-88004-06-80

1
Out of stock

46

CHAIN (DID-35TS-2 70L)

94880-04070-00

1
Out of stock
