1980 Yamaha SS440D Track Suspension 1 Diagram

← All diagrams

Find the part on the Track Suspension 1 diagram for your 1980 Yamaha SS440D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

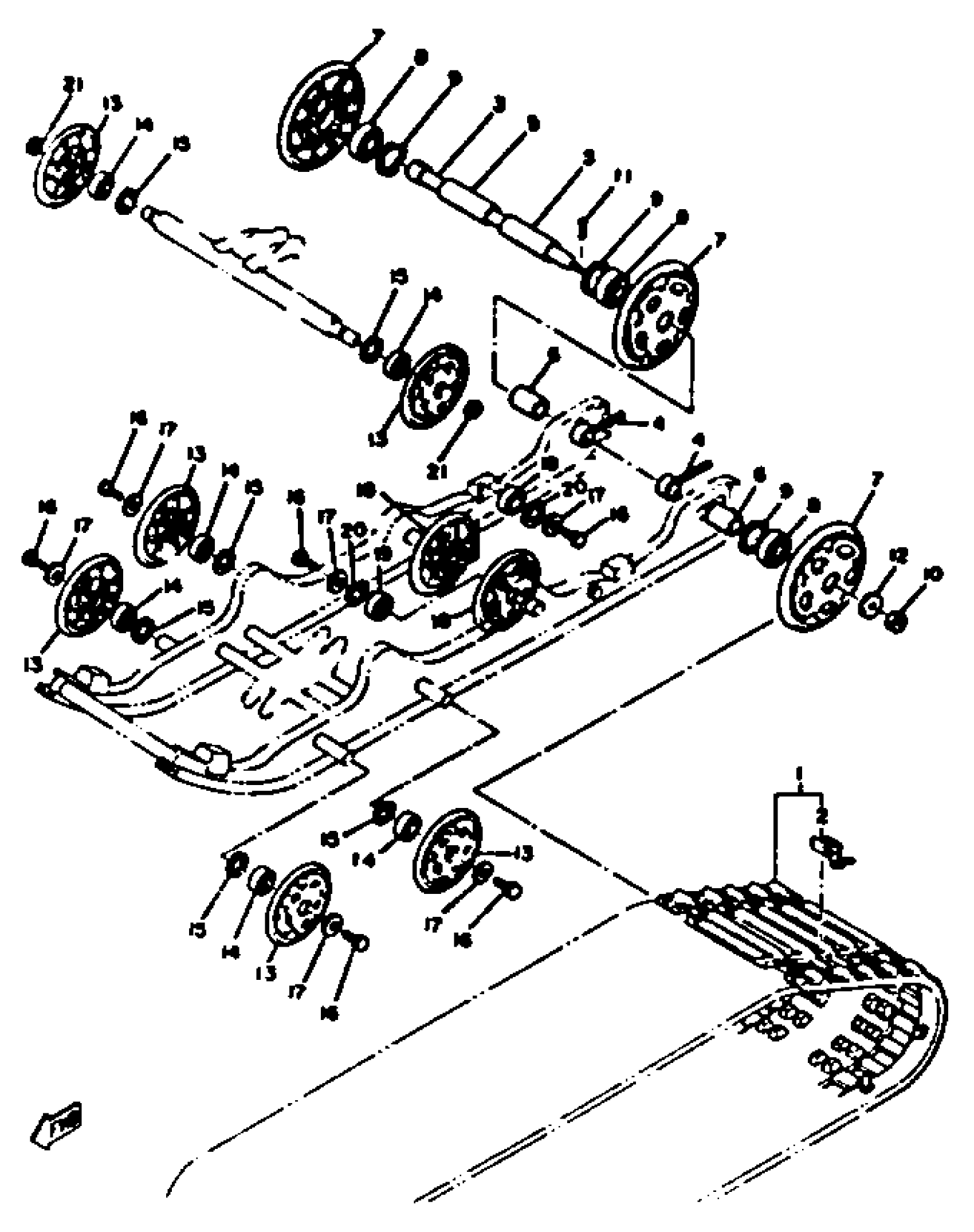

1980 Yamaha SS440D Track Suspension 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRACK ASY

8V0-47110-00-00

1
Out of stock

2

METAL, SLIDE

8A5-47115-00-00

1
Out of stock

3

AXLE, REAR

(8K2-47521-02-00)

1
Out of stock

4

COLLAR 3

8K2-47479-01-00

1

$25.69

In stock

5

COLLAR

90387-20756-00

1
Out of stock

6

COLLAR

90387-21757-00

1
Out of stock

7

GUIDE WHEEL COMP.

8K2-47530-00-00

1

$117.57

In stock

8

1

$33.86

In stock

9

CIRCLIP(48Y)

99009-47500-00

1

$7.66

In stock

10

NUT, U (4PM)

95617-12100-00

1

$3.69

In stock

11

PIN COTTER

91490-30025-00

1
Out of stock

12

WASHER, PLATE (8K2)

90201-120A5-00

1

$5.00

In stock

13

SUSPENTION WHEEL COMP

87M-47320-00-00

1

$77.13

In stock

14

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

15

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

16

BOLT (8K2)

90109-08559-00

—

$6.92

In stock

17

WASHER (8G1)

90201-08681-00

—

$6.22

In stock

18

SUSPENTION WHEEL COMP

87M-47320-00-00

1

$77.13

In stock

19

BEARING(8AB)

93306-00444-00

1

$35.70

In stock

20

CIRCLIP(5U8)

99009-42500-00

1

$6.77

In stock

21

CIRCLIP(1AR)

99009-20400-00

—
Out of stock
