1981 Yamaha SR500H (SR500H) Taillight Diagram

← All diagrams

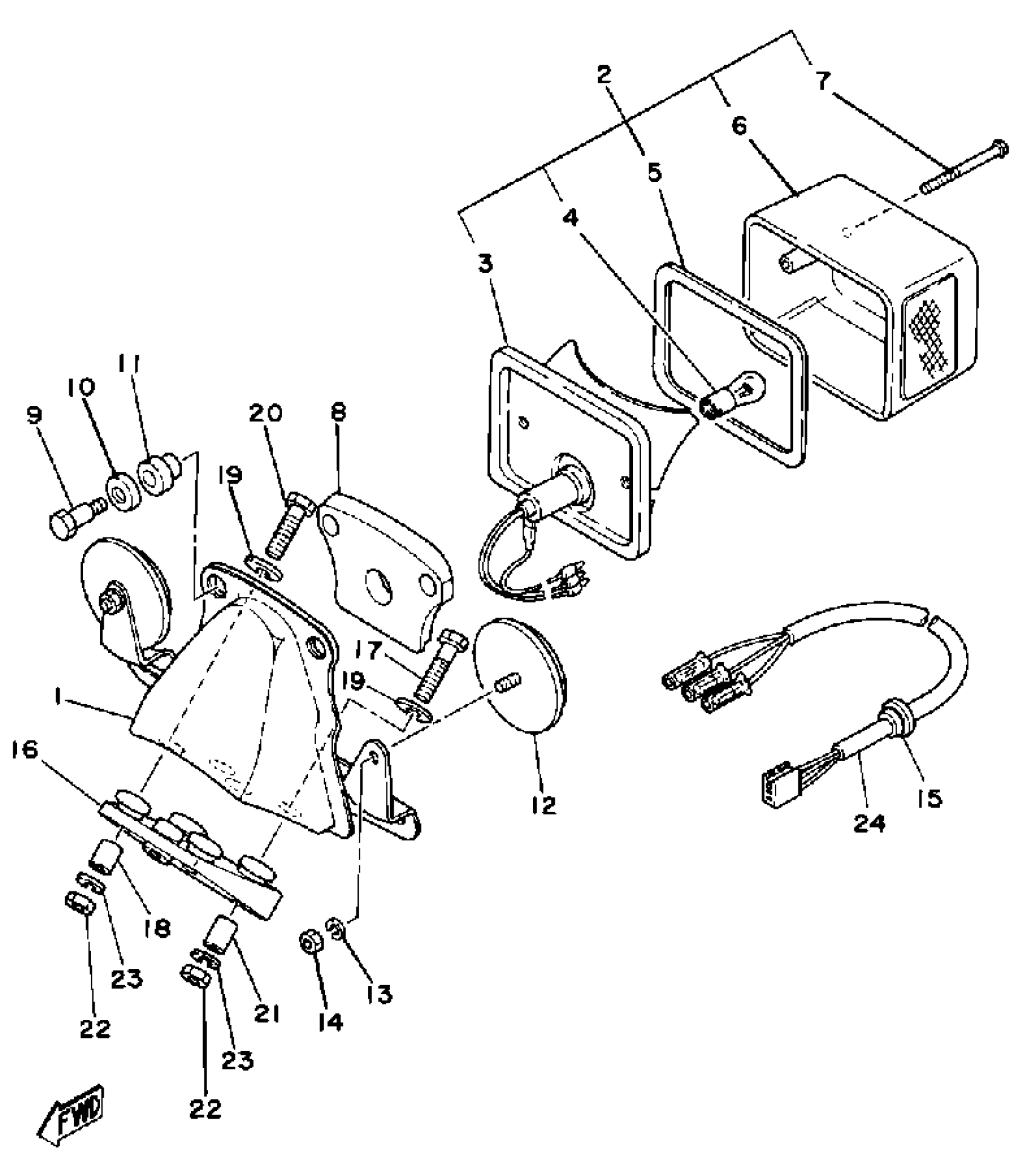

Find the part on the Taillight diagram for your 1981 Yamaha SR500H (SR500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR500H (SR500H) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, LICENSE

2J2-84751-00-93

1
Out of stock

2

TAILLIGHT UNIT ASSY

1W9-84710-61-00

1

$96.22

In stock

3

TAILLIGHT UNIT ASSY

1W9-84710-61-00

1

$96.22

In stock

4

1

$10.02

In stock

5

GASKET, TAIL LENS

1M1-84523-60-00

1

$11.03

In stock

6

LENS, TAIL LAMP

1M1-84521-60-00

1

$35.69

In stock

7

SCREW, ADJUSTING

5BF-8433E-00-00

1

$6.11

In stock

8

SEAT, BASE

1M1-84512-60-00

—
Out of stock

9

BOLT 337847520000

90109-06005-00

1

$6.29

In stock

10

WASHER, SPECIAL

2H7-84754-00-00

1
Out of stock

11

DAMPER

1M1-84527-60-00

1
Out of stock

12

REFLECTOR, REAR 1

449-85131-02-00

1

$25.74

In stock

13

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

14

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

15

GROMMET 152845180000

90480-12013-00

1
Out of stock

16

DAMPER, TAIL LAMP.

2J2-84753-00-00

—
Out of stock

17

BOLT, HEXAGON

97017-06030-00

—

$3.00

In stock

18

COLLAR

90387-07020-00

—

$6.17

In stock

19

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

20

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

21

COLLAR(2UJ)

90387-061V1-00

—

$6.46

In stock

22

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

CORD, TAILLIGHT

3Y3-84517-00-00

1
Out of stock
