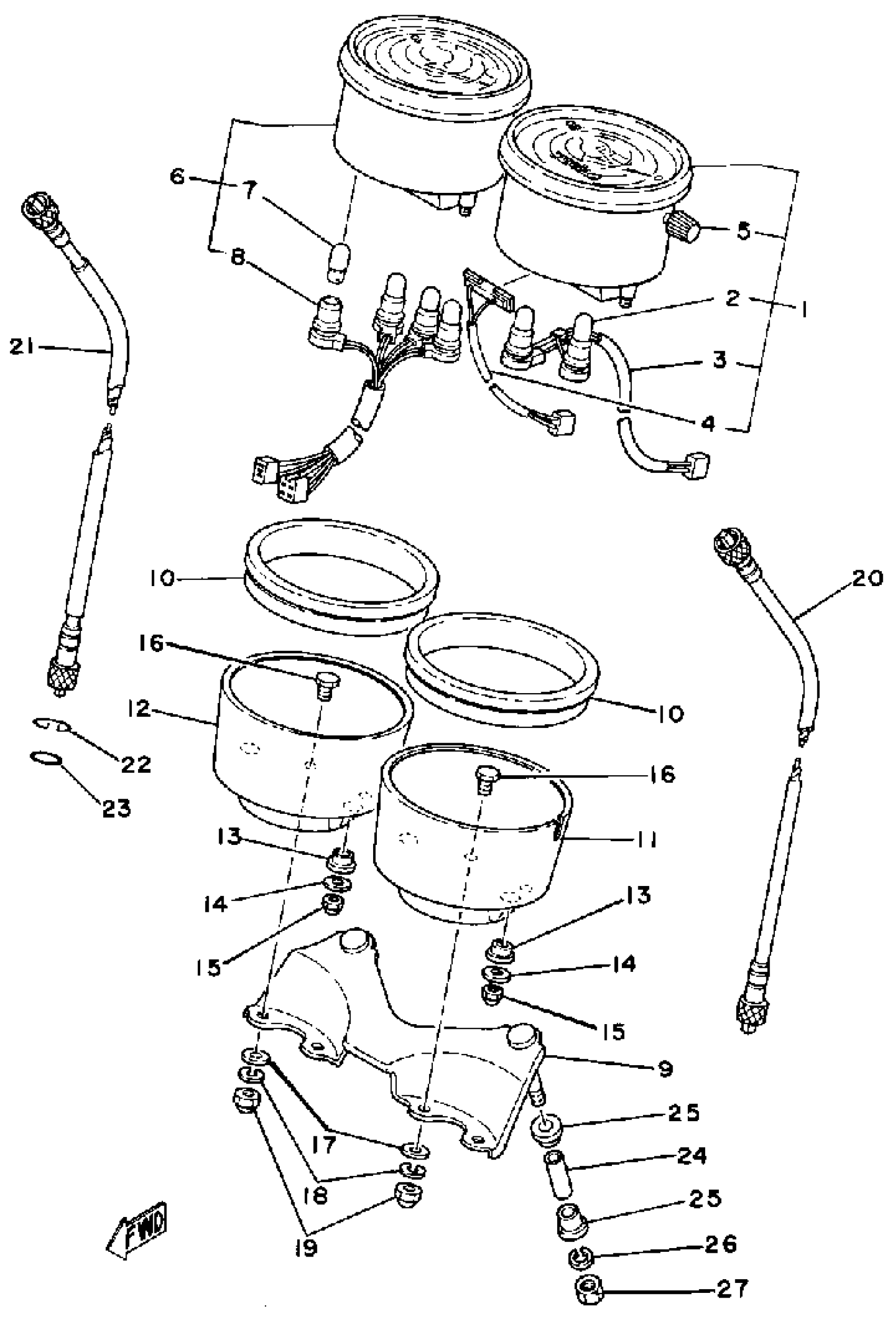

Find the part on the Speedometer Tachometer diagram for your 1981 Yamaha SR500H (SR500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SR500H (SR500H) Speedometer Tachometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPEEDOMETER ASSEMBLY

(3H1-83570-A1-00)

1
Out of stock

2

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

3

SOCKET, METER

(3H1-83536-00-00)

1
Out of stock

4

SENDER

(2J2-83556-00-00)

1
Out of stock

5

KNOB, TRIP METER

4SV-83578-00-00

1
Out of stock

6

TACHOMETER ASSEMBLY

(3H1-83540-00-00)

1
Out of stock

7

BULB, MTR.12V3.4W

4G1-84744-00-XX

1
Out of stock

8

SOCKET CORD ASSEMBLY

(3H1-83520-00-00)

1
Out of stock

9

BRACKET, METER

2J2-83519-00-00

1
Out of stock

10

DAMPER

3H3-83513-00-00

1
Out of stock

11

COVER, SPEEDOMETER

2J2-83507-00-00

1
Out of stock

12

COVER, TACHOMETER

2J2-83508-00-00

1
Out of stock

13

DAMPER, METER COVER FITTING

584-83523-00-00

—
Out of stock

14

WASHER, PLATE (8J0)

90201-05725-00

—

$6.80

In stock

15

NUT (CROWN)

95303-05800-00

1
Out of stock

16

BOLT

584-83546-00-00

—
Out of stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

19

NUT (J17)

95380-06800-00

—

$6.74

In stock

20

SPEEDOMETER CABLE ASSY

16M-83550-01-00

—
Out of stock

21

TACHOMETER CABLE ASSY

2J2-83560-10-00

—
Out of stock

22

RING, STOP

102-25137-00-00

—
Out of stock

23

O-RING (26H)

93210-14579-00

—

$5.69

In stock

24

COLLAR (2J2)

90387-06676-00

—

$2.83

In stock

25

DAMPER

1JK-83541-00-00

—
Out of stock

26

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

27

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
