1981 Yamaha SR500H (SR500H) Handle Switch Lever Diagram

← All diagrams

Find the part on the Handle Switch Lever diagram for your 1981 Yamaha SR500H (SR500H), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

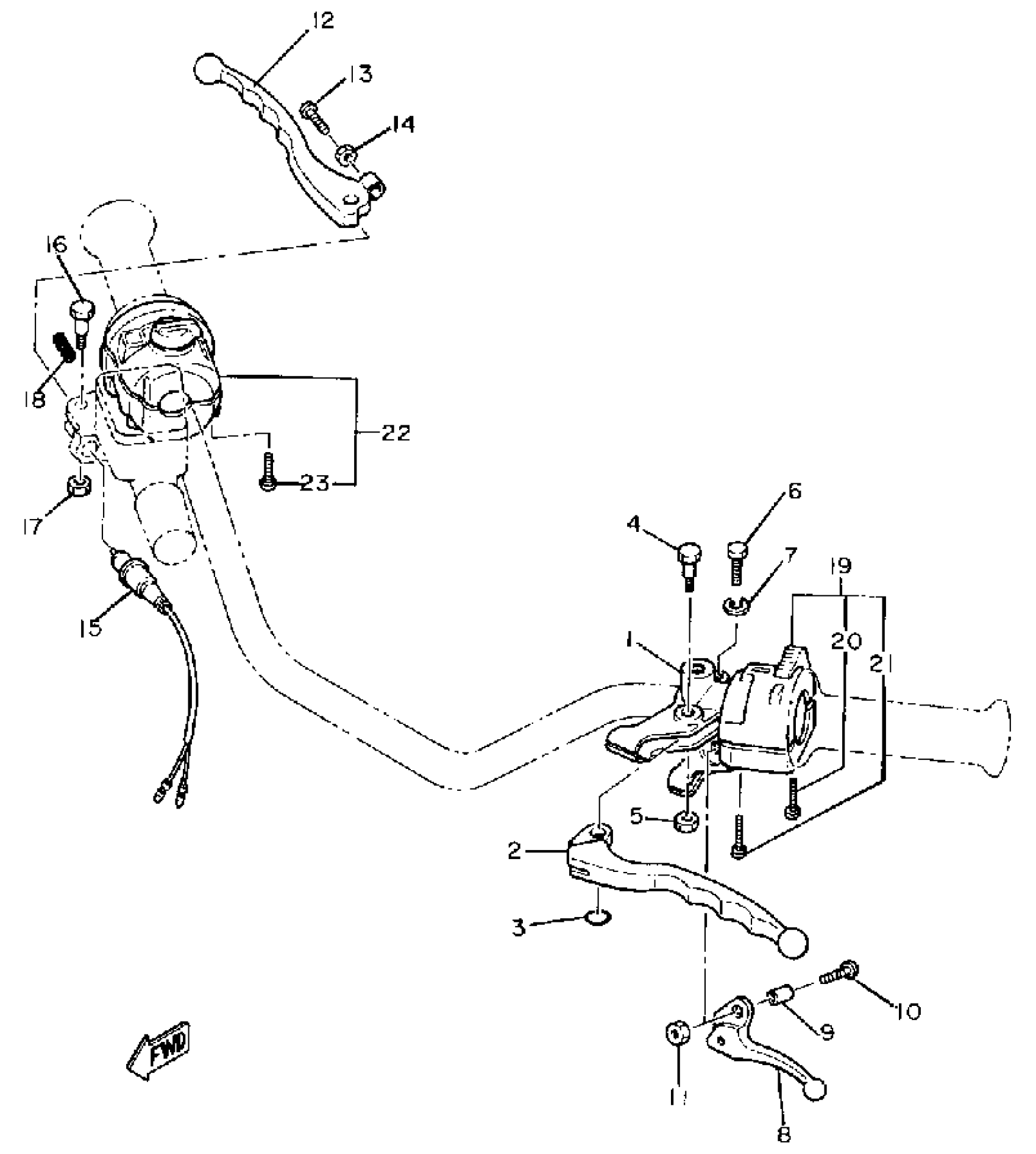

1981 Yamaha SR500H (SR500H) Handle Switch Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, LEVER (L.H)

583-82911-02-00

—

$67.22

In stock

2

LEVER L

2H0-83912-31-00

1

$26.37

In stock

3

O-RING (2H7)

93210-11368-00

1

$4.80

In stock

4

BOLT(1FG)

90109-06798-00

1
Out of stock

5

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

6

BOLT, HEXAGON

97013-06022-00

1

$1.20

In stock

7

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

8

LEVER, DECOMPRESSION

583-83981-00-00

1
Out of stock

9

COLLAR, LEVER 1

5BE-83913-00-00

1
Out of stock

10

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

11

NUT, U

95617-05100-00

1

$6.68

In stock

12

LEVER 2

4L0-83922-00-00

1

$41.88

In stock

13

SCREW (2L0)

90149-06131-00

1

$6.17

In stock

14

NUT HEXAGON 306839270000

90170-06010-00

1

$6.17

In stock

15

FRONT STOP SWITCH ASSY

26H-83980-00-00

1
Out of stock

16

BOLT (4L0)

90109-06577-00

—

$5.38

In stock

17

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

18

—

$6.17

In stock

19

SWITCH, HANDLE 3

2J3-83973-60-98

1
Out of stock

20

SCREW, PAN HEAD

98517-05030-00

—

$7.92

In stock

21

SCREW, PAN

98507-05035-00

—

$6.69

In stock

22

SWITCH, HANDLE 1

2J2-83976-00-98

1
Out of stock

23

SCREW, PAN HEAD

98517-05030-00

—

$7.92

In stock
