2019 Suzuki RV200L9 OIL Pump Diagram

← All diagrams

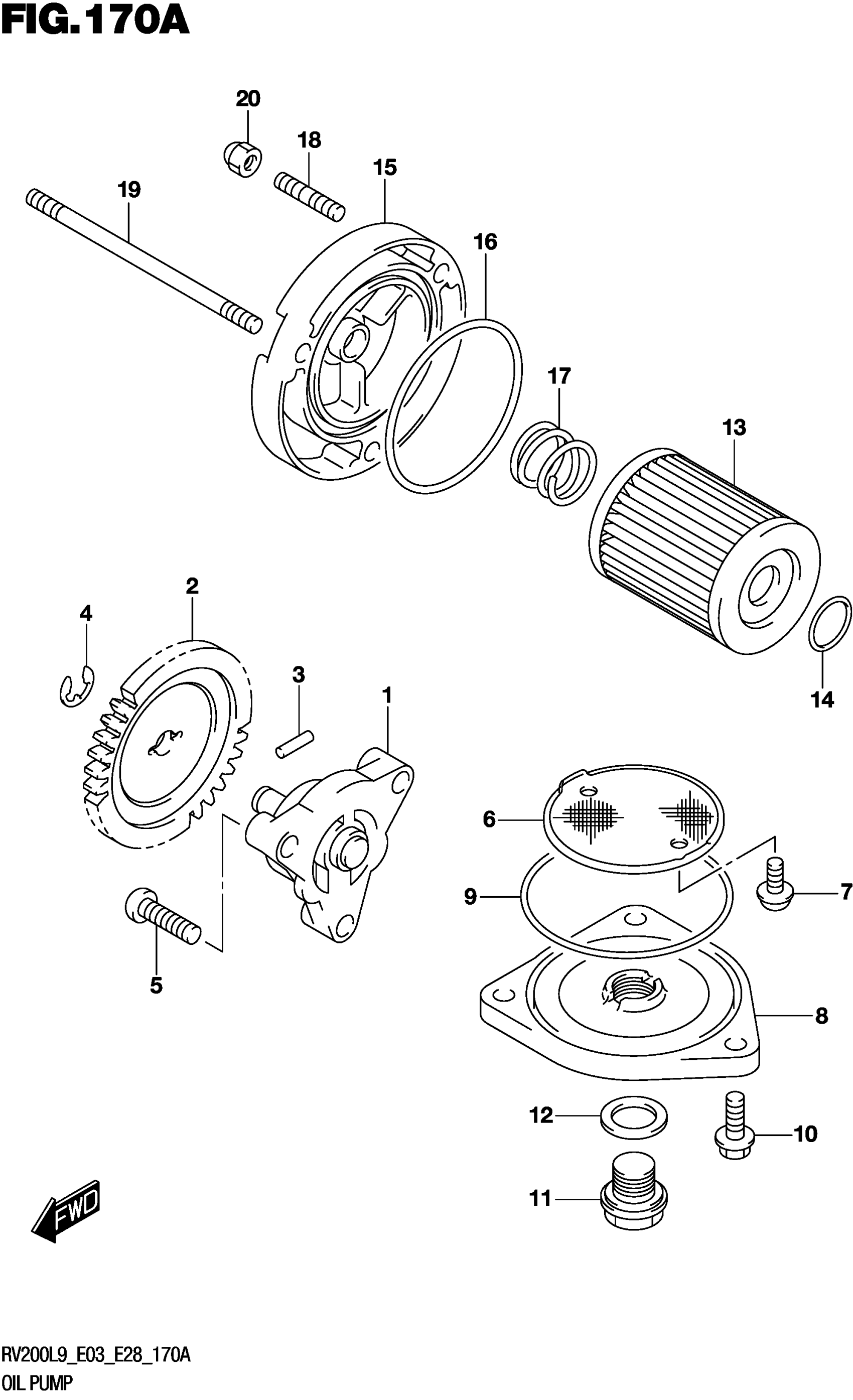

Find the part on the OIL Pump diagram for your 2019 Suzuki RV200L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki RV200L9 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, ENG OIL

16400-42A01

1
Out of stock

2

GEAR

16331-35C00

1
Out of stock

3

PIN (2.5X11.8)

09261-02008

1

$1.77

In stock

4

E-RING

08332-1106A

1
Out of stock

5

SCREW

02112-0625A

3
Out of stock

6

STRAINER, ENGINE OIL

16520-05202

1

$5.95

In stock

7

SCREW

02112-7512A

2
Out of stock

8

CAP, OIL STR

16523-05200

1

$14.63

In stock

9

1

$3.08

In stock

10

BOLT

01547-0620A

3
Out of stock

11

1

$3.63

In stock

12

GASKET (13.8X18.8X4.8)

09168-14002

1
Out of stock

13

FILTER ASSY, ENG OIL

16510-25C00

1

$7.44

In stock

14

.O-RING (D:1.9,ID:13)

09280-13004

1
Out of stock

15

CAP, OIL FILTER

16512-13G00

1
Out of stock

16

.O-RING (D:2.4,ID:52.6)

09280-54001

1
Out of stock

17

SPRING (L:14.5)

09440-18002

1
Out of stock

18

STUD BOLT

09108-06123

2
Out of stock

19

STUD BOLT (L:90)

09108-06108

1
Out of stock

20

NUT

08313-1006A

3

$1.97

In stock
