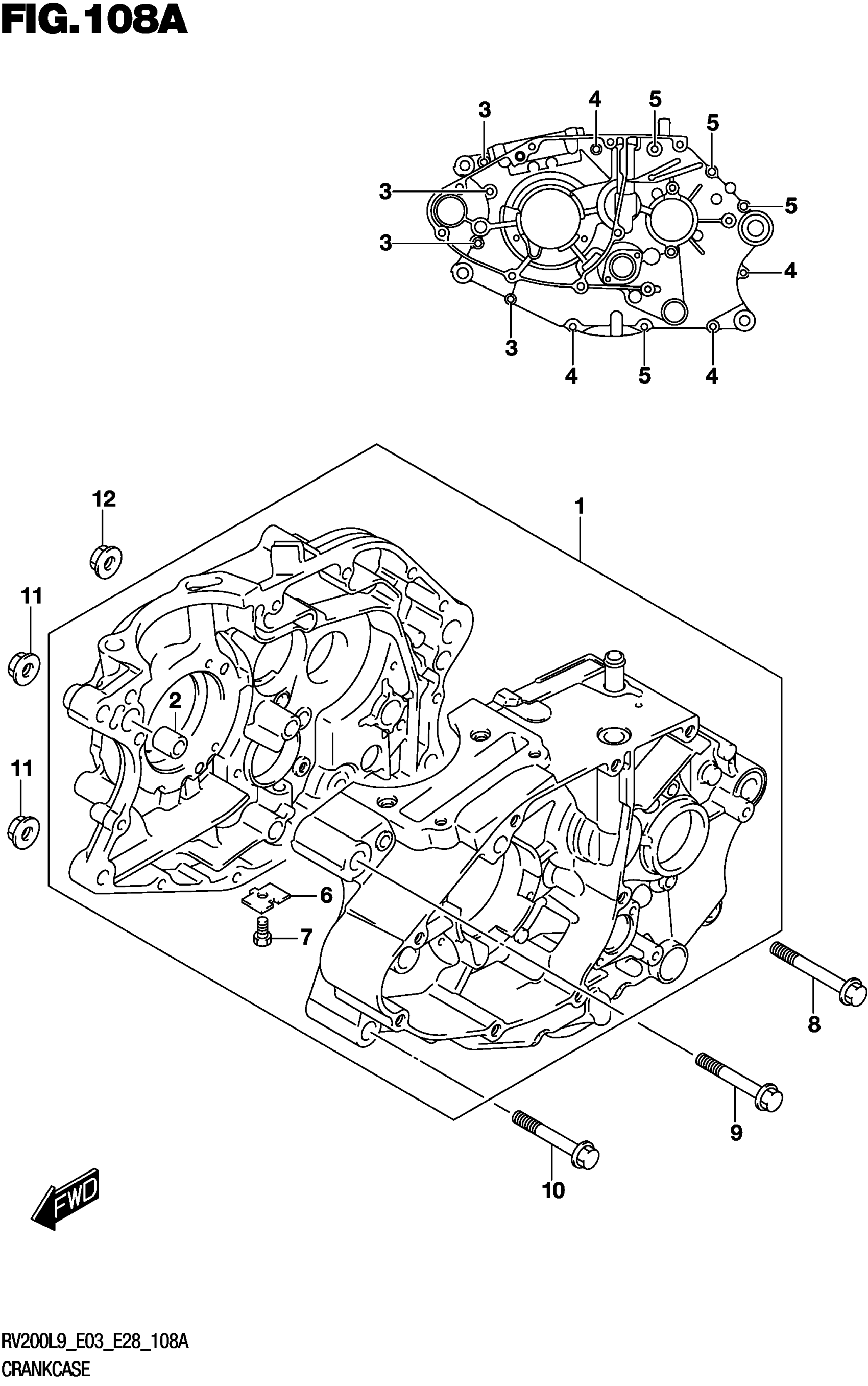

Suzuki RV200L9 (2019) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

11300-42A60

Unavailable

2

PIN (10.4X13X18)

04211-13189

$2.25

3

.BOLT

01547-0655A

$2.53

4

BOLT

01547-0660A

$2.80

5

BOLT,CARB This part replaces 01547-06757.

09103-06522

$3.20

6

.PLATE, OIL GALLEY PLUG

11319-05200

$3.80

7

.BOLT

01500-0610A

$2.43

8

BOLT, FRONT LH

09103-08112

$9.15

9

BOLT (10X80)

09103-10370

$7.95

10

BOLT (10X80)

09103-10370

$7.95

11

NUT (M10)

09159-10115

$3.31

12

NUT

08319-3108A

$2.38
