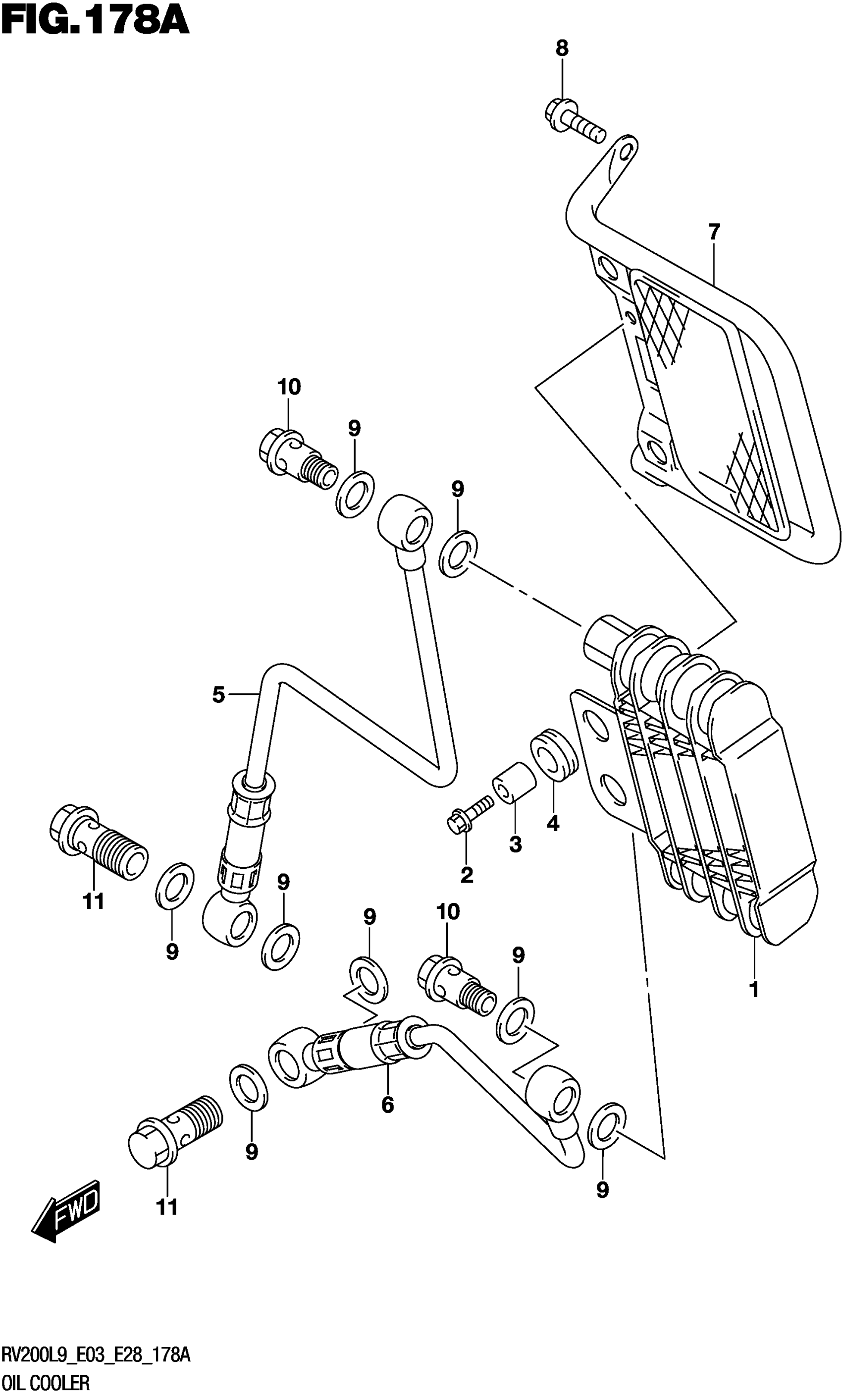

Suzuki RV200L9 (2019) OIL COOLER Diagram

#

Description
Price

1

COOLER ASSY, OIL

16600-13E00

$632.28

2

BOLT (6X20)

09116-06201

$2.97

3

SPACER (6.5X10X10)

09180-06310

$1.99

4

CUSHION

09320-10015

$2.61

5

HOSE, OIL COOLER UPR

16460-13G00

Unavailable

6

HOSE, OIL COOLER LWR

16470-13G00

Unavailable

7

GUARD, OIL COOLER

16640-42A00

Unavailable

8

BOLT

01550-0616A

$2.01

9

.GASKET (14X20X1.5)

09168-14015

$2.09

10

BOLT, UNION

09360-12012

$12.57

11

UNION (14X27)

09360-14012

$10.10
