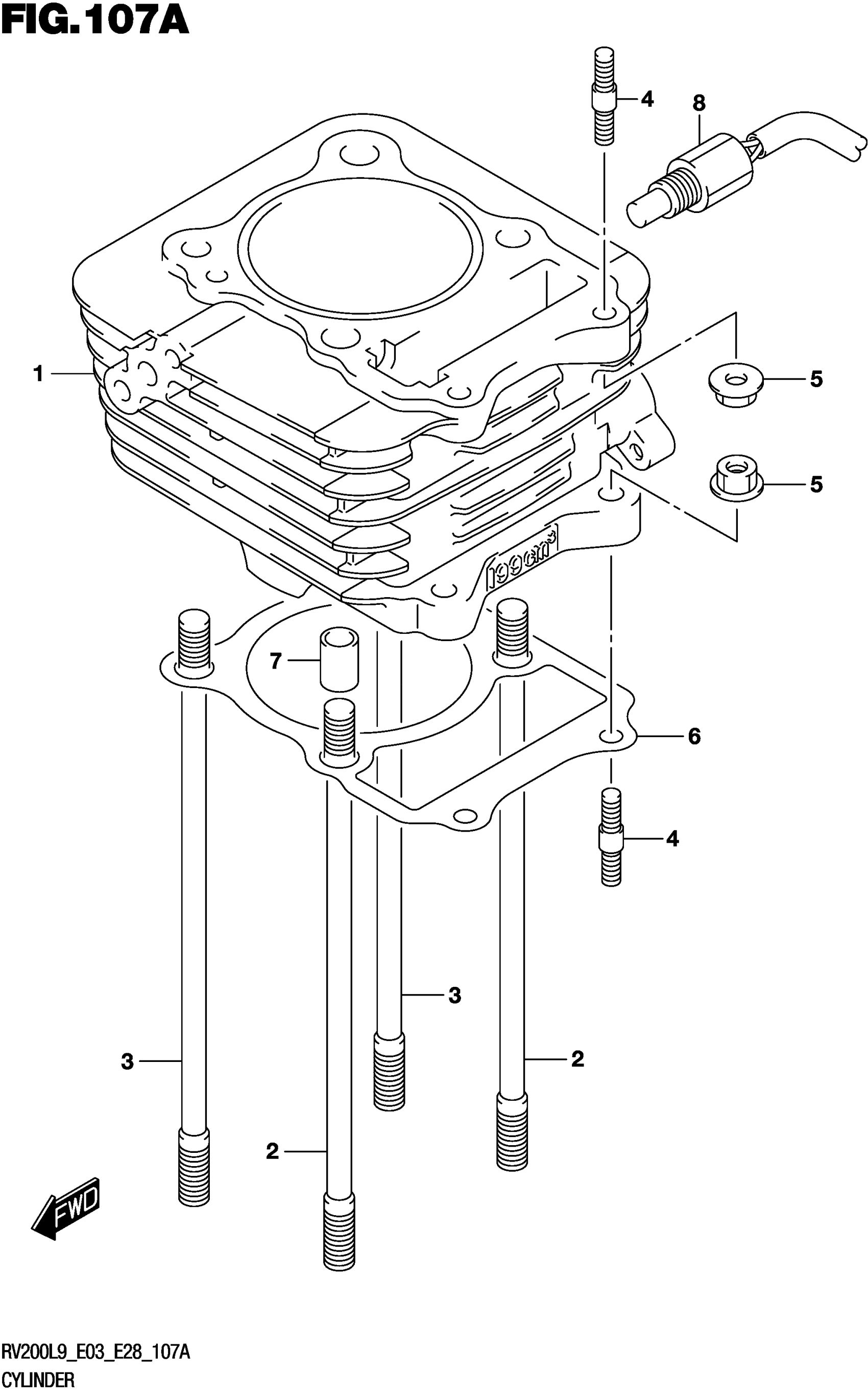

Suzuki RV200L9 (2019) CYLINDER Diagram

#

Description

Price

1

CYLINDER

11211-42A70-0F0

Unavailable

2

STUD BOLT

09108-08195

$5.27

3

STUD BOLT (8X167)

09108-08184

$5.65

4

STUD BOLT

01421-0625A

$2.07

5

NUT (6X12)

08316-1006A

$2.25

6

.GASKET

11241-42A10

$5.41

7

PIN

04211-11149

$1.82

8

SENSOR,ENGINE TEMP This part replaces 13640-32G00.

13640-32G01

$48.45
