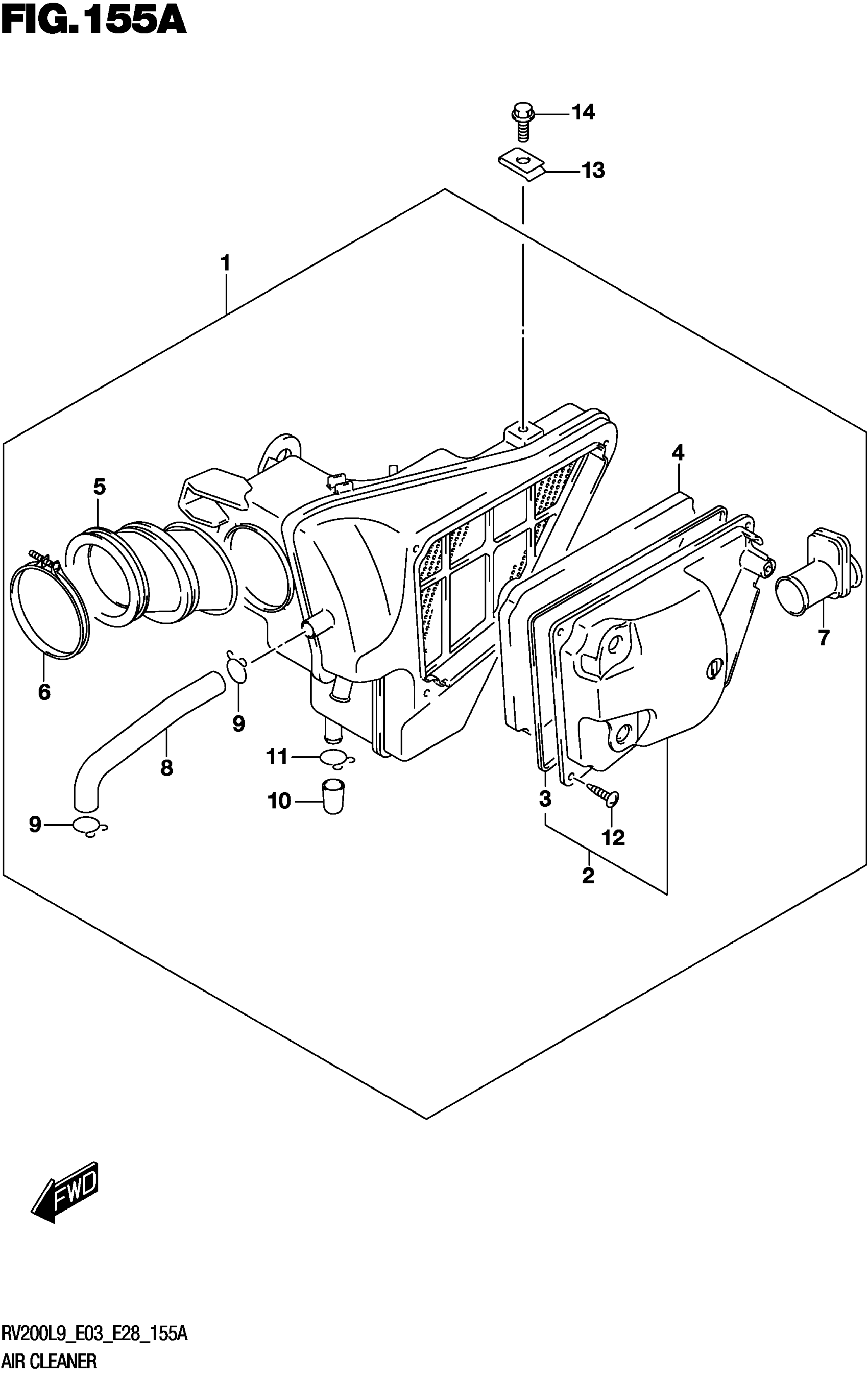

Suzuki RV200L9 (2019) AIR CLEANER (RV200L9 E03) Diagram

#

Description
Price

1

CLEANER ASSY,AI This part replaces 13700-13GC0.

13700-13GC1

$190.62

2

CAP,AIR CLEANER This part replaces 13740-13G01.

13740-13G02

$34.88

3

..GASKET, AIR CLEANER CAP

13746-13G00

$4.80

4

.FILTER ASSY

13780-13G02

$12.04

5

.TUBE, OUTLET

13881-13GC0

Unavailable

6

.CLAMP (L:25)

09402-52208

$4.99

7

TUBE,INLET This part replaces 13891-13GC0.

13891-13GC1

$27.55

8

.TUBE, BREATHER

13853-13G00

$14.05

9

.CLIP

09401-14301

$2.17

10

.PLUG

13859-41B10

$7.26

11

.CLIP

09401-14301

$2.17

12

SCREW

03541-0520A

$1.88

13

NUT (M6)

09148-06021

$3.48

14

BOLT

01550-0616A

$2.01
