2019 Suzuki RV200L9 Crankcase Cover Diagram

← All diagrams

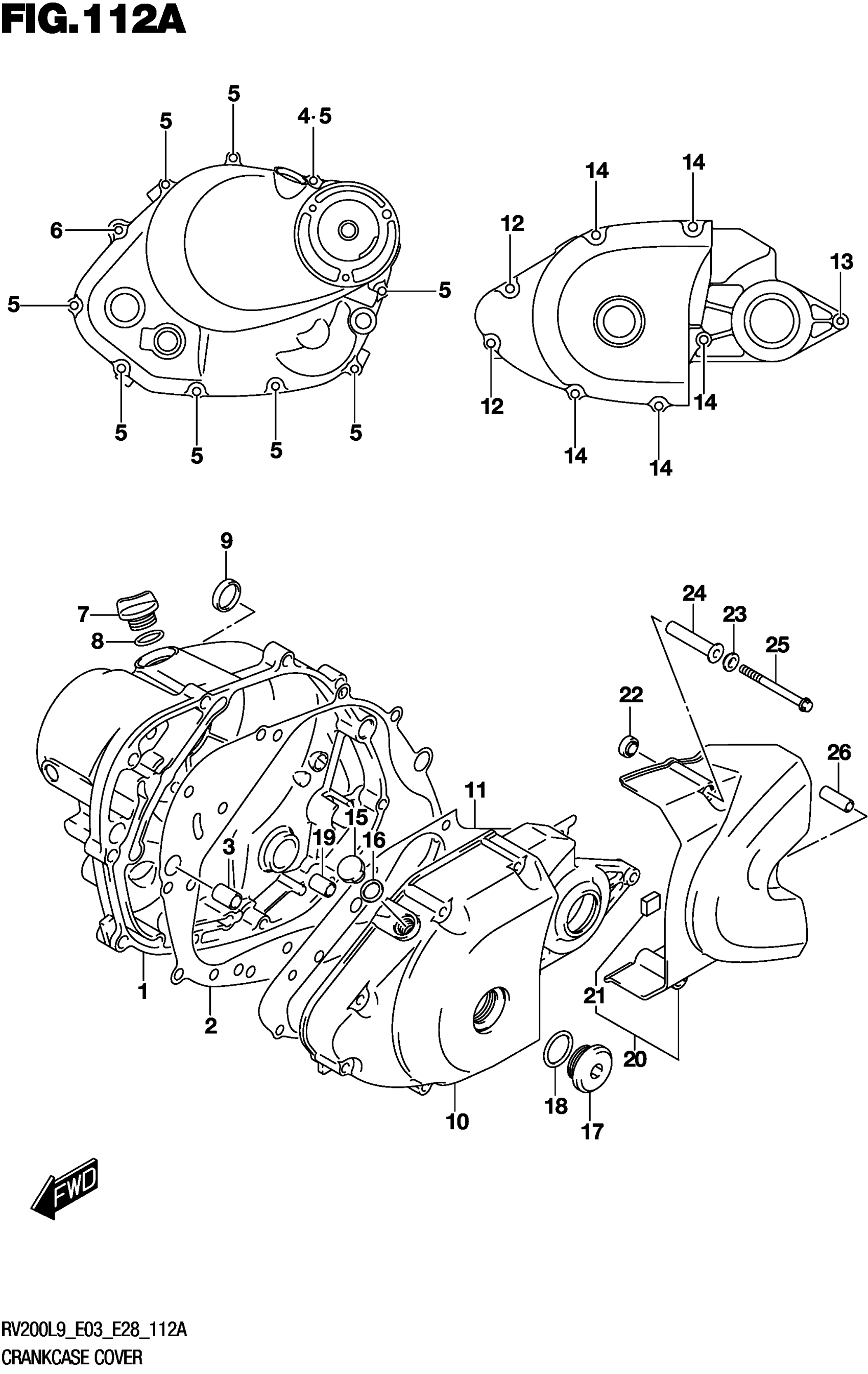

Find the part on the Crankcase Cover diagram for your 2019 Suzuki RV200L9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Suzuki RV200L9 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH

11340-42A70

1
Out of stock

2

.GASKET, CLUTCH COVER

11482-05211

1

$12.78

In stock

3

PIN (10.4X13X18)

04211-13189

2
Out of stock

4

GASKET (5.8X13X1.2)

09168-06023

1
Out of stock

5

BOLT

01547-0630A

9

$2.48

In stock

6

BOLT

01547-0645A

1
Out of stock

7

PLUG,ENGINE OIL FILLER

11971-25D00

1
Out of stock

8

O-RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

9

PLUG

11342-12C51

1

$12.02

In stock

10

COVER, MAGNETO

11351-13G10

1

$170.32

In stock

11

1

$10.97

In stock

12

BOLT

01547-0640A

2
Out of stock

13

.BOLT (6X45)

09103-06293

1

$2.75

In stock

14

BOLT

01547-0650A

5
Out of stock

15

PLUG (12X9)

09247-12104

1

$2.92

In stock

16

GASKET (12.1X16.2X3.7)

09168-12002

1
Out of stock

17

PLUG (26X9)

09259-26011

1

$10.69

In stock

18

O-RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

19

PIN

04211-09129

1
Out of stock

20

1

$62.05

In stock

21

1

$2.43

In stock

22

WASHER (8.7X16X5)

09161-09005

2

$2.52

In stock

23

WASHER (8.7X15X2.1)

09161-09006

2

$2.56

In stock

24

SPACER (6.5X9X47.1)

09180-06321

2

$7.03

In stock

25

BOLT

01547-0660A

2

$2.92

In stock

26

1

$2.17

In stock
