1972 Yamaha DT2 (RT2) OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

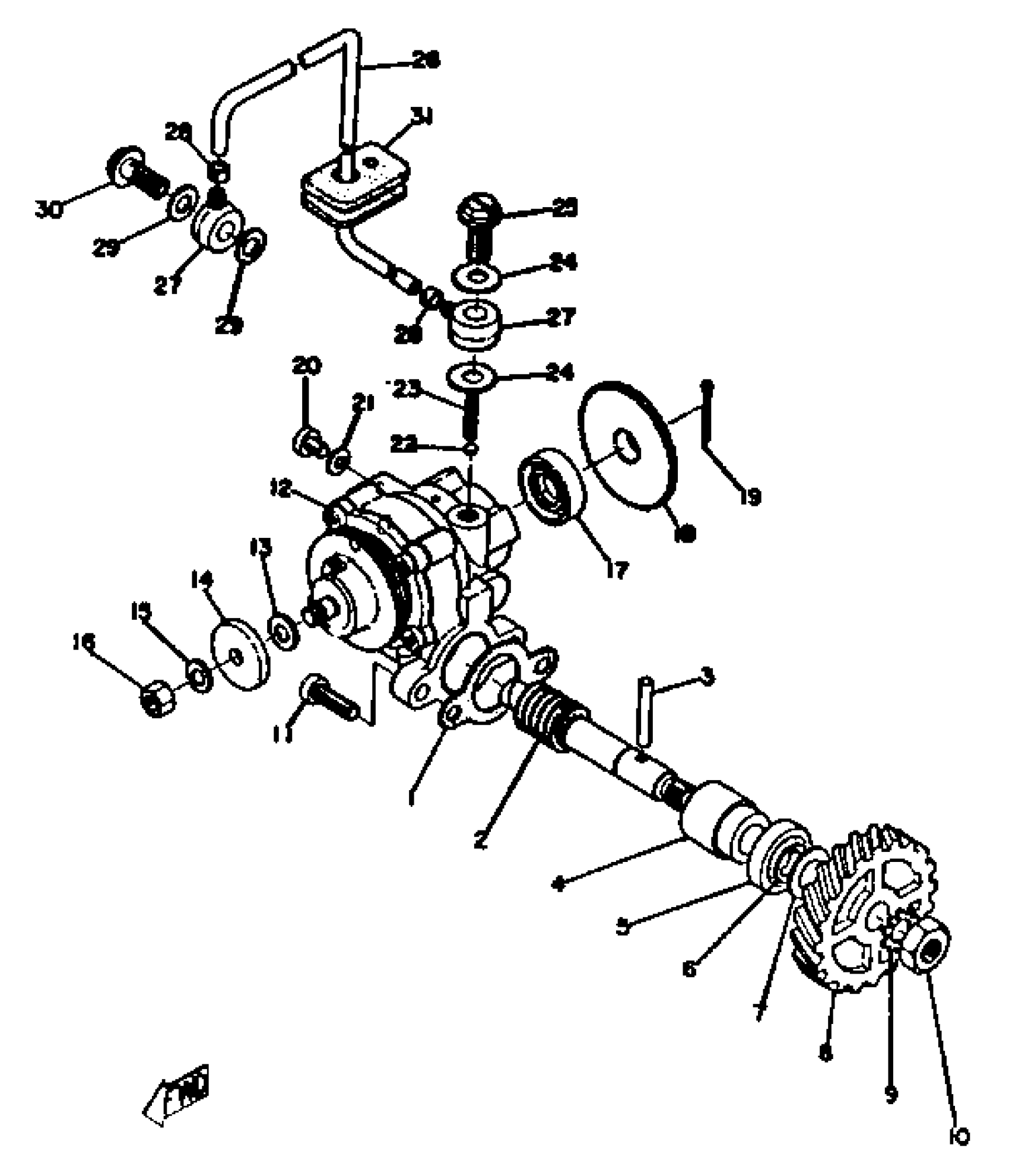

1972 Yamaha DT2 (RT2) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

(214-13101-04-00)

1
Out of stock

1

OIL PUMP ASSEMBLY

(275-13101-03-00)

1
Out of stock

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

SHAFT, WORM (278-13175-00)

278-13175-01-00

1
Out of stock

2

. HOLDER, OIL PIPE

(363-13174-00-00)

1
Out of stock

3

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

4

BEARING, SHAFT

(A00-67465-00-00)

1
Out of stock

5

OIL SEAL (10X22X7-137)

93101-10002-00

1

$6.68

In stock

6

CIRCLIP(2R6)

99001-08600-00

1
Out of stock

7

WASHER, PLATE(52H)

90201-105J4-00

1

$6.88

In stock

8

. HOLDER, OIL PIPE

(363-13174-00-00)

1
Out of stock

9

WASHER (688)

92990-08400-00

1

$3.46

In stock

10

. NUT

95380-08700-00

1

$3.07

In stock

11

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

13

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

14

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

15

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

16

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

17

OIL SEAL (J10)

93101-10090-00

—

$6.17

In stock

18

PLATE, STARTER

(137-13128-00-00)

1
Out of stock

19

. PIN, COTTER

91401-12018-00

1
Out of stock

20

SCREW, BIND

98980-04008-00

1

$3.26

In stock

21

GASKET 137131870000

90430-04004-00

—
Out of stock

22

BALL

93505-32002-00

—

$2.22

In stock

23

SPRING, COMPRESSION

(90501-02017-00)

1
Out of stock

24

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

25

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

26

HOSE (L700)

90445-05M07-00

1
Out of stock

27

BANJO, DELIVERY PIPE

214-13162-01-00

—

$26.11

In stock

28

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

29

GASKET(3FP)

90430-06224-00

—

$4.32

In stock

30

BOLT UNION 137131650000

90401-06001-00

—

$7.48

In stock

31

. HOLDER, OIL PIPE

(363-13174-00-00)

1
Out of stock
