1972 Yamaha DT2 (RT2) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

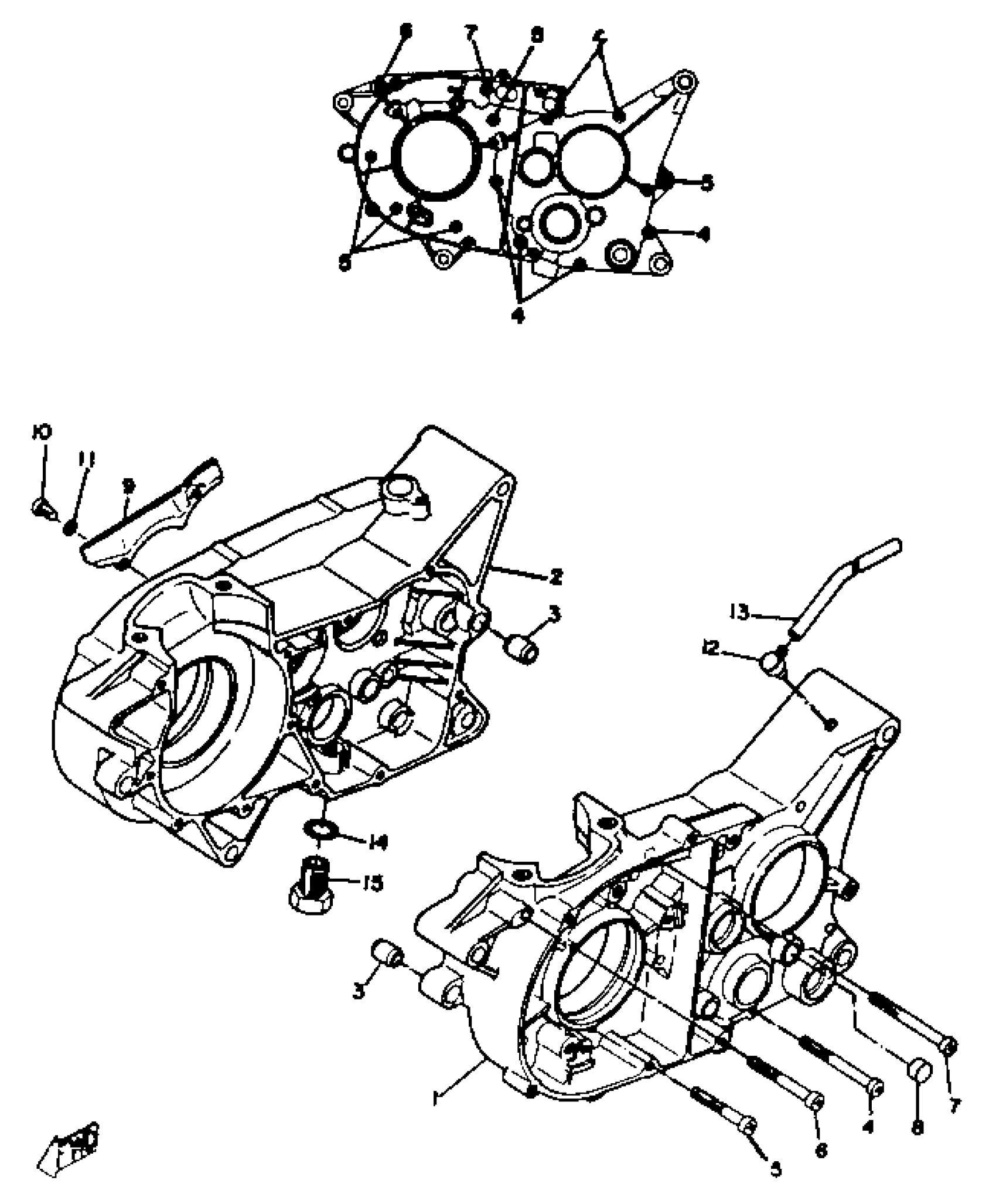

1972 Yamaha DT2 (RT2) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(275-15111-01-00)

1
Out of stock

1

CRANKCASE 1

(291-15111-00-00)

1
Out of stock

2

CRANKCASE 2

(275-15121-01-00)

1
Out of stock

2

CRANKCASE 2

(291-15121-00-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

SCREW PAN HEAD

98580-06565-00

—
Out of stock

5

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

6

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

7

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

7

SCREW PAN HEAD

98580-06565-00

—
Out of stock

8

PLUG, BLIND

214-15385-00-00

—

$6.72

In stock

9

COVER

(214-15492-00-00)

1
Out of stock

10

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

BREATHER

583-15371-00-00

1
Out of stock

13

HOSE(7EG)

90446-07241-00

—

$7.42

In stock

14

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

15

BOLT

90109-14385-00

—

$13.66

In stock
← Crank Piston Crankcase Cover →
