1972 Yamaha DT2 (RT2) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

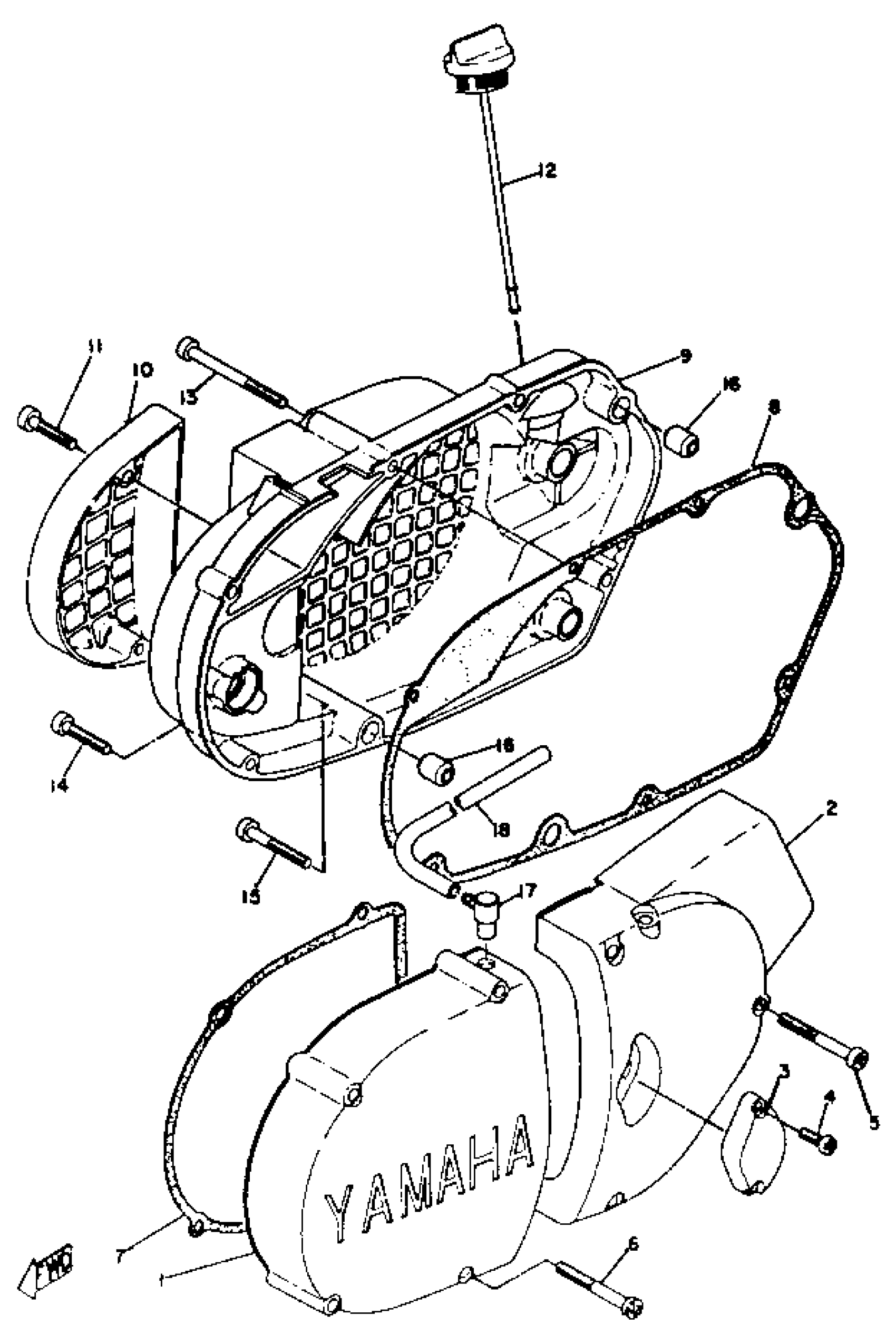

1972 Yamaha DT2 (RT2) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

(291-15411-00-00)

1
Out of stock

2

COVER, CRANKCASE R

233-15421-00-00

1
Out of stock

3

COVER, CAP

233-15417-00-00

1
Out of stock

4

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

5

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

6

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

7

GASKET, CRANKCASE COVER

214-15451-09-00

1

$17.41

In stock

8

GASKET, CRANKCASE COVER

308-15461-09-00

—

$32.25

In stock

9

COVER, CRANKCASE 3

(291-15431-01-00)

1
Out of stock

10

COVER, OIL PUMP

(291-15416-00-00)

1
Out of stock

11

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

12

PLUG, OIL

278-15363-00-00

1
Out of stock

13

SCREW PAN HEAD

98580-06565-00

—
Out of stock

14

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

15

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

16

PIN, DOWEL

99530-12016-00

—

$4.12

In stock

17

BREATHER

583-15371-00-00

—
Out of stock

18

HOSE (395-14197-00)

90446-07094-00

1
Out of stock
