1972 Yamaha DT2 (RT2) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

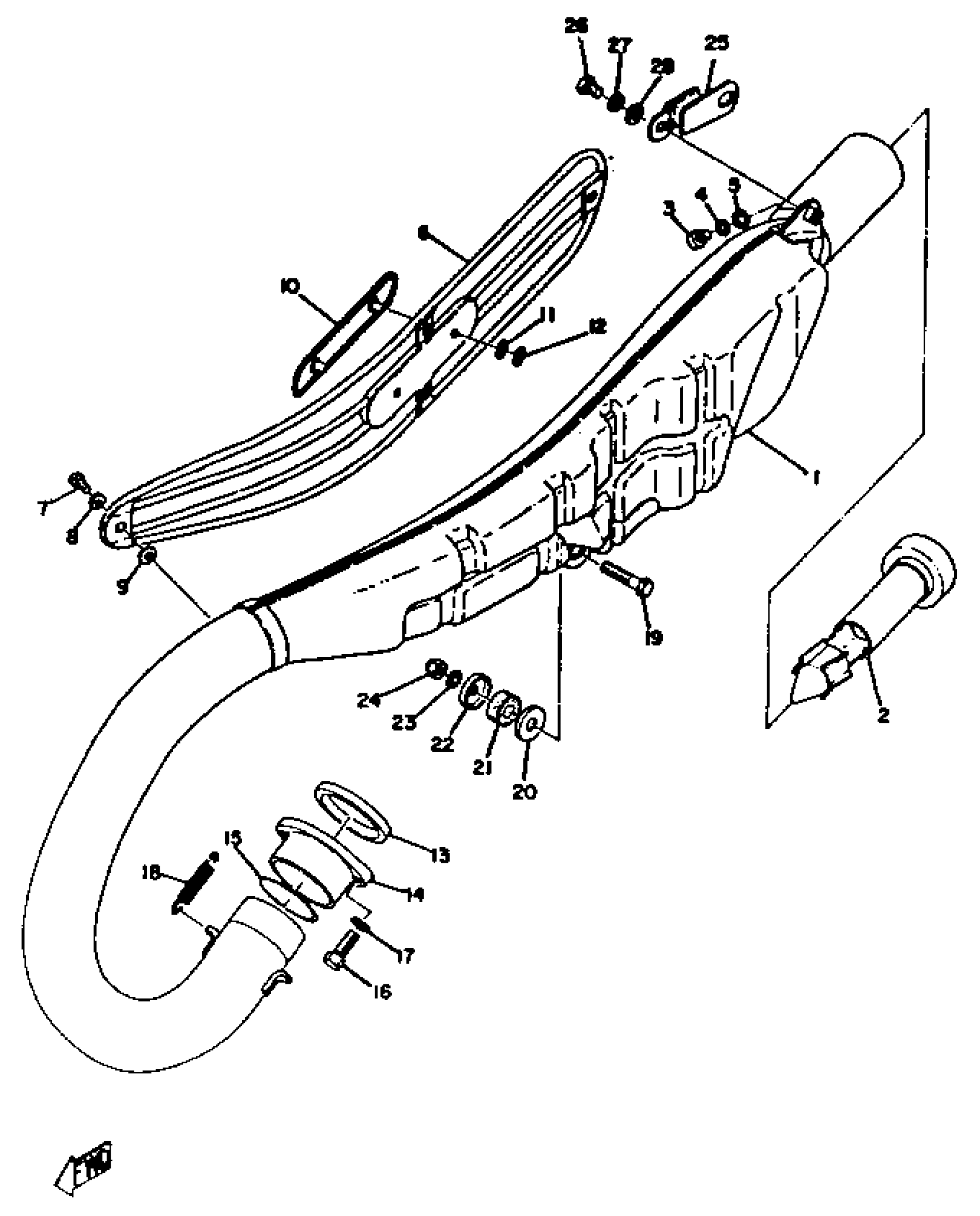

1972 Yamaha DT2 (RT2) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

311-14610-30-00

1
Out of stock

2

. PIPE, OUTLET

291-14752-30-00

1
Out of stock

3

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

4

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

5

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

6

PROTECTOR, MUFF 1

(312-14718-10-00)

1
Out of stock

7

SCREW, BIND(J45)

98980-06012-00

1

$4.70

In stock

8

WASHER, PLATE(3MT)

90202-05188-00

1

$6.18

In stock

9

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

10

EMBLEM, PROTECTOR

308-14729-00-00

1
Out of stock

10

EMBLEM, PROTECTOR

311-14729-00-00

1
Out of stock

11

WASHER PLATE 174283160000

90202-04003-00

1

$6.69

In stock

12

NUT SPRING 116283170100

90183-04005-00

1

$0.74

In stock

13

GASKET, EXHAUST PIPE

214-14613-09-00

1

$15.83

In stock

14

EXHAUST PIPE ASSEMBLY L

(291-14610-30-00)

1
Out of stock

15

GASKET

248-14623-10-00

—

$6.22

In stock

16

BOLT(3DM)

97024-06020-00

—

$6.17

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

SPRING 214-14683-01

90506-12029-00

—

$6.49

In stock

19

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

20

PLATE, MUFFLER

(214-14793-01-00)

1
Out of stock

21

GROMMET (16R)

90480-14329-00

—

$6.68

In stock

22

PLATE, MUFFLER

(214-14793-01-00)

1
Out of stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

COLLAR (J10)

90387-06026-00

—

$6.91

In stock

25

STAY, MUFFLER 1

308-14771-00-00

1
Out of stock

26

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

27

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

28

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock
