1972 Yamaha DT2 (RT2) Decompression Valve Diagram

← All diagrams

Find the part on the Decompression Valve diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

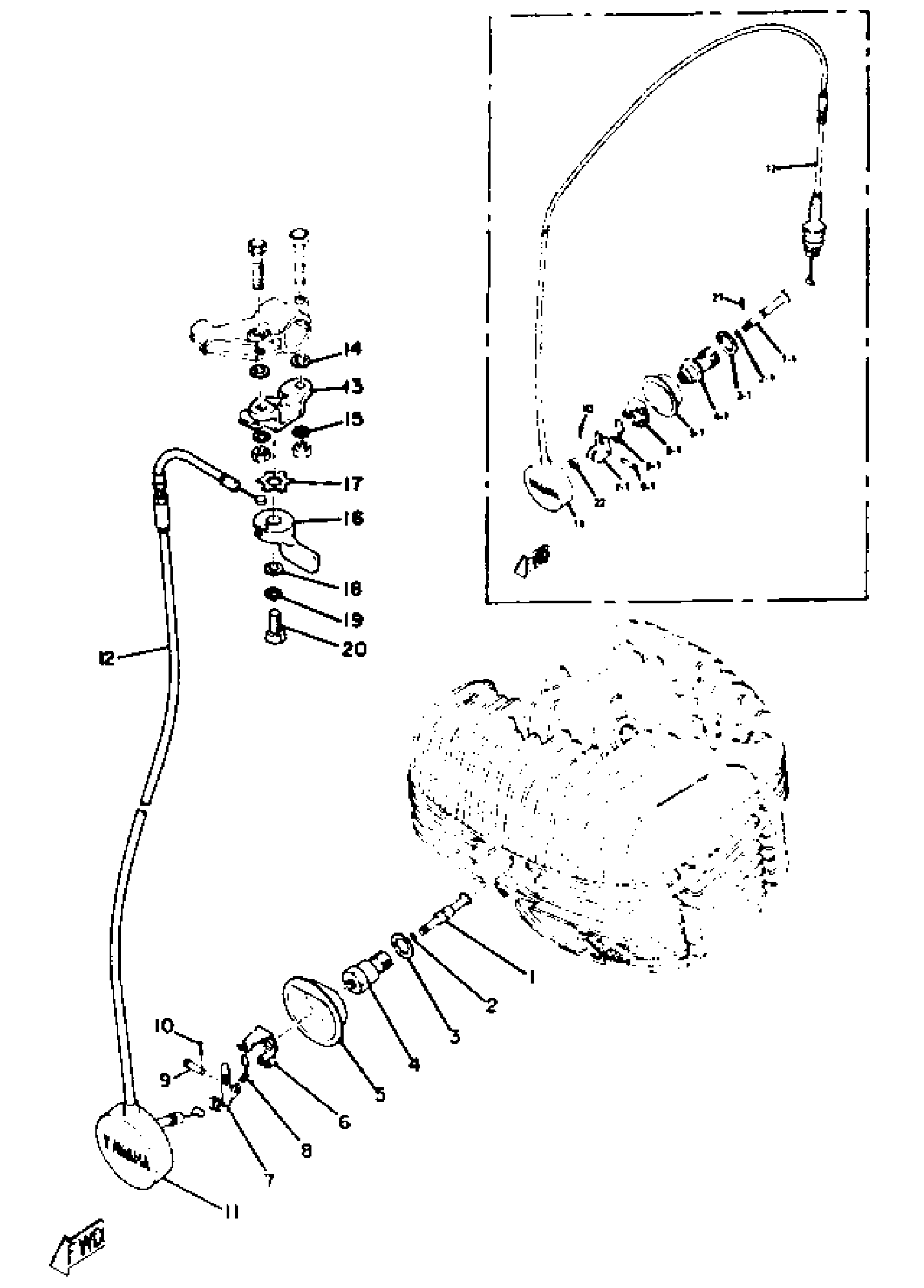

1972 Yamaha DT2 (RT2) Decompression Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

DECOMP KIT

(363-12200-00-00)

1
Out of stock

1

. HOLDER, CABLE

363-12273-00-00

1
Out of stock

1

. PLATE

363-12279-00-00

1
Out of stock

1

. VALVE, DECOMPRESSION

363-12281-01-00

1
Out of stock

1

. LEVER, DECOMPRESSION

363-12282-00-00

1
Out of stock

1

. BRACKET, DECOMPRESSION

363-12283-01-00

1
Out of stock

1

VALVE, DCOMP 001

(812-12281-00-00)

1
Out of stock

1

. PIN

90240-03003-00

1
Out of stock

1

GASKET (583 OIL TANK)

90430-22123-00

1

$8.06

In stock

1

. SPRING

90508-10010-00

1
Out of stock

1

. O-RING

93210-05215-00

1
Out of stock

2

O-RING (210)

93210-04092-00

1

$2.88

In stock

3

GASKET

812-11198-00-00

1

$6.46

In stock

4

BRACKET, DCOMP

(275-12283-00-00)

1
Out of stock

5

PLATE

275-12279-00-00

1
Out of stock

6

HOLDER, CABLE

812-12273-00-00

1
Out of stock

7

LEVER, DCOMP

275-12282-01-00

1
Out of stock

8

SPRING, TORSION

90508-10183-00

1
Out of stock

9

PIN, CLEVIS

90240-03002-00

1
Out of stock

10

PIN, COTTER

91490-16020-00

1

$6.23

In stock

11

COVER, DECOMPRESSION

275-12278-00-00

1
Out of stock

12

CABLE, STARTER 1

275-26331-00-00

1
Out of stock

13

HOLDER, DCOMP LEVER

(275-83984-00-00)

1
Out of stock

14

WASHER, PLATE

(90202-06040-00)

1
Out of stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

LEVER, DCOMP

275-83981-00-00

1
Out of stock

17

WASHER (357)

90209-10131-00

—

$7.94

In stock

18

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

21

PIN, COTTER

91490-16020-00

1

$6.23

In stock

22

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock
