1972 Yamaha DT2 (RT2) Crank Piston Diagram

← All diagrams

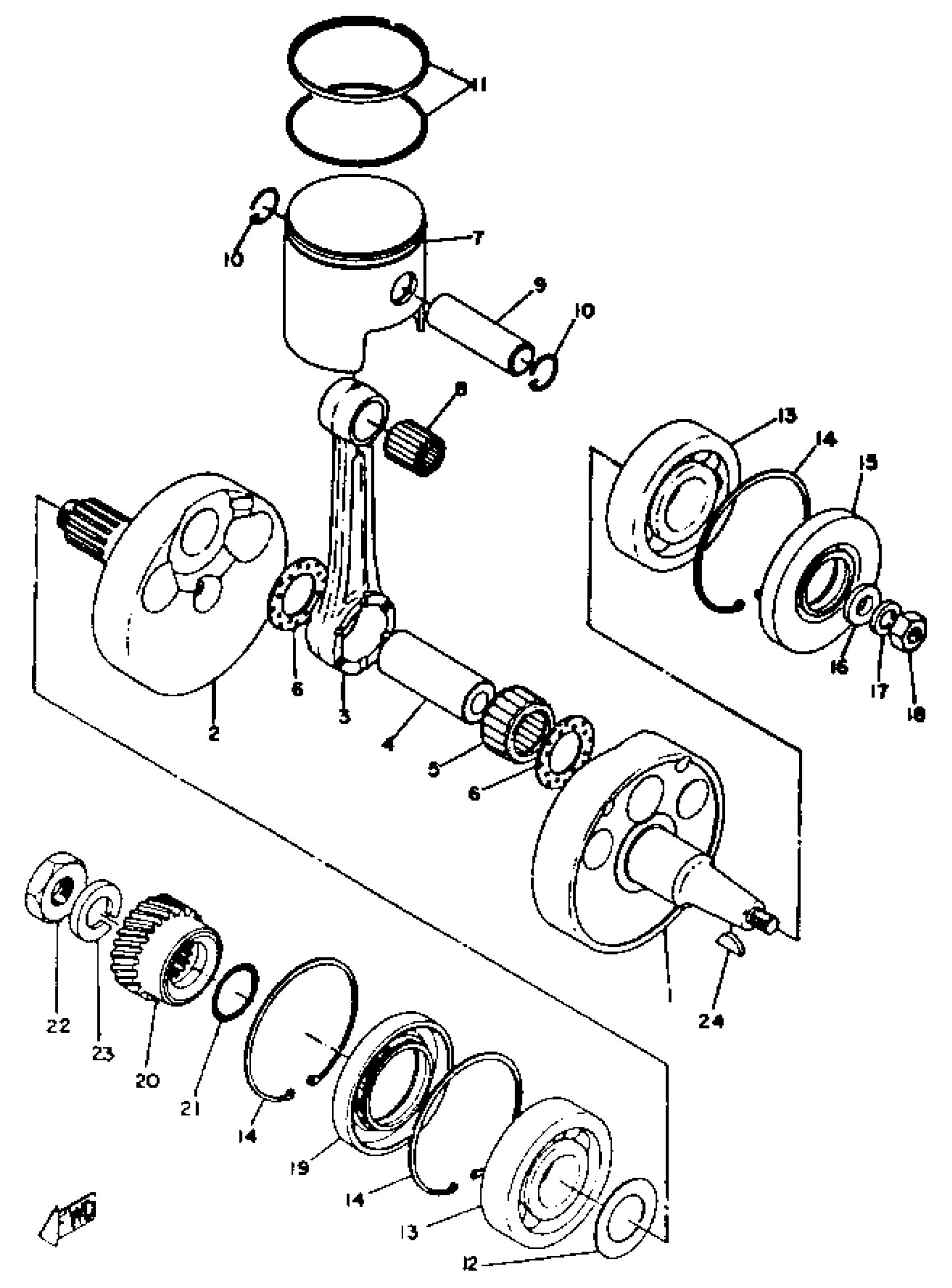

Find the part on the Crank Piston diagram for your 1972 Yamaha DT2 (RT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha DT2 (RT2) Crank Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK 1

(214-11412-01-00)

1
Out of stock

1

CRANKSHAFT ASSEMBLY

(275-11400-00-00)

1
Out of stock

1

CRANK 1

275-11422-00-00)

1
Out of stock

1

CRANKSHAFT ASSEMBLY

(311-11400-01-00)

1
Out of stock

2

CRANK 2

(214-11422-01-00)

1
Out of stock

2

CRANK 2

(275-11422-00-00)

1
Out of stock

3

. ROD, CONNECTING

431-11651-00-00

1
Out of stock

3

. ROD, CONNECTING

510-11651-00-00

1
Out of stock

4

. PIN, CRANK 1 (DIA 24MM)

214-11681-00-00

1
Out of stock

4

PIN, CRANK

2X4-11681-00-00

1

$73.68

In stock

5

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

—

$66.55

In stock

5

BRG,CYL-CAL ROLLER (8R6)

93310-524K4-00

1

$110.95

In stock

6

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

6

WASHER 275116850000

90209-25085-00

1

$10.43

In stock

7

PISTON STD (.96MM STD)

308-11631-01-96

1
Out of stock

7

PISTON 1 O/S 0.25 (0.25MM 1ST O.S)

308-11635-01-00

1
Out of stock

7

PISTON 2 O/S 0.50 (0.50MM 2ND O.S)

308-11636-01-00

1
Out of stock

7

PISTON STD (.96MM STD) (311-11631-00-96)

438-11631-01-96

1
Out of stock

7

PISTON 1 O/S 0.25 (0.25MM 1ST O.S) (438-11635-02)

438-11635-01-00

1
Out of stock

7

PISTON 2 O/S 0.50 (0.50MM 2ND O.S) (438-11636-02)

438-11636-01-00

1
Out of stock

8

—

$32.87

In stock

9

PIN, PISTON

214-11633-00-00

—

$27.84

In stock

9

PIN, PISTON

275-11633-00-00

—

$30.66

In stock

10

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

11

PISTON RINGSET STD

(308-11610-01-00)

1
Out of stock

11

PISTON RINGSET 1ST (1ST O.S)

308-11610-11-00

1
Out of stock

11

PISTON RINGSET 2ND (2ND O.S)

308-11610-21-00

1
Out of stock

11

PISTON RINGSET STD (STD)

311-11610-00-00

1
Out of stock

11

PISTON RINGSET 1ST (1ST O.S)

311-11610-10-00

1
Out of stock

11

PISTON RINGSET 2ND (2ND O.S)

311-11610-20-00

1
Out of stock

12

. SHIM, CRANK 4 (25-44-03)

156-11564-00-03

1
Out of stock

12

. SHIM, CRANK 4 (25-44-05)

156-11564-00-04

1
Out of stock

13

BEARING(3KW)

93306-30630-00

—

$64.14

In stock

14

CIRCLIP, R-TYPE

(93420-72023-00)

1
Out of stock

15

OIL SEAL, SW-TYPE (SW-30-72-10)

93103-30044-00

1
Out of stock

16

WASHER (492)

90201-12535-00

—
Out of stock

17

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

18

NUT(55K)

90170-12347-00

—

$8.43

In stock

19

OIL SEAL, SW-TYPE (SW-42-72-10)

93103-42045-00

1
Out of stock

20

GEAR, PRI DRIVE

(214-16111-00-00)

1
Out of stock

21

O-RING (437)

93210-24235-00

—

$5.72

In stock

22

NUT

90170-18089-00

1
Out of stock

23

SPRING

214-16119-00-00

—
Out of stock

24

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

25

KEY, WOOD RUFF (324)

90280-05014-00

—

$7.82

In stock
