1970 Yamaha RT1 (RT1M) OIL Tank Diagram

← All diagrams

Find the part on the OIL Tank diagram for your 1970 Yamaha RT1 (RT1M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

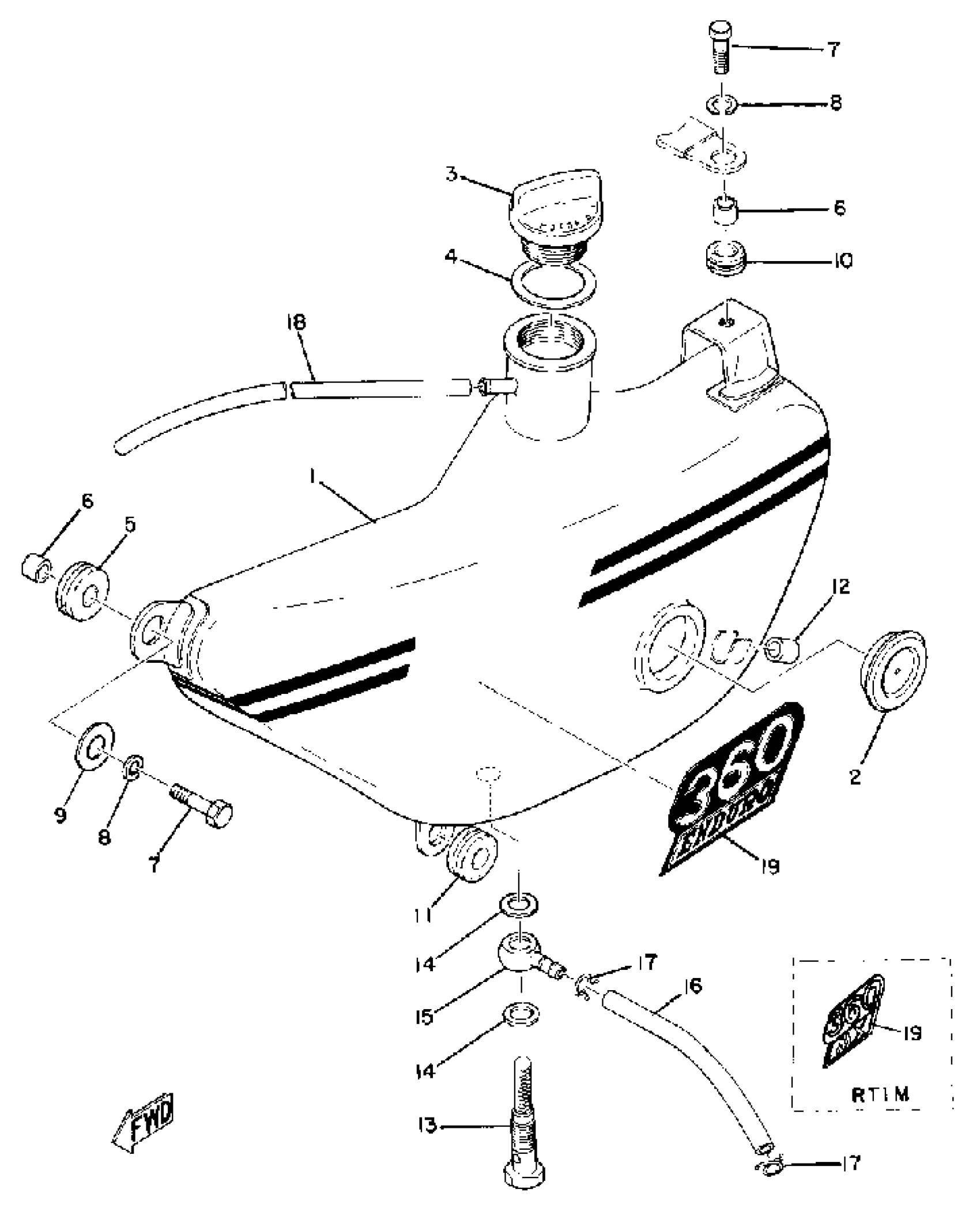

1970 Yamaha RT1 (RT1M) OIL Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL TANK ASSEMBLY

(214-21705-00-04)

1
Out of stock

1

OIL TANK ASSEMBLY

(214-21705-00-05)

1
Out of stock

2

GAUGE, LEVEL

214-21761-00-00

—

$25.15

In stock

3

BODY, OIL TANK CAP

1A0-21771-00-00

1

$30.35

In stock

4

GASKET 214217720000

90430-29114-00

1

$6.20

In stock

5

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

6

COLLAR (J10)

90387-06026-00

1

$6.91

In stock

7

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

8

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

9

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

10

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

11

GROMMET 214217460000

90480-10091-00

1

$6.45

In stock

12

DAMPER, OIL TANK

437-21779-00-00

—

$7.51

In stock

13

SCREW, UNION

(214-21768-00-00)

1
Out of stock

14

GASKET

(90430-10029-00)

1
Out of stock

15

COLLAR, UNION SCREW

214-21769-00-00

1
Out of stock

16

HOSE (L600)

90445-083J5-00

—

$7.65

In stock

17

CLIP 101235600

90467-08003-00

—

$6.13

In stock

18

HOSE

(90446-06006-00)

1
Out of stock

19

EMBLEM 7

(275-21787-02-00)

1
Out of stock

19

EMBLEM 7

(284-21787-00-00)

1
Out of stock
