1970 Yamaha RT1 (RT1M) Crank & Piston Diagram

← All diagrams

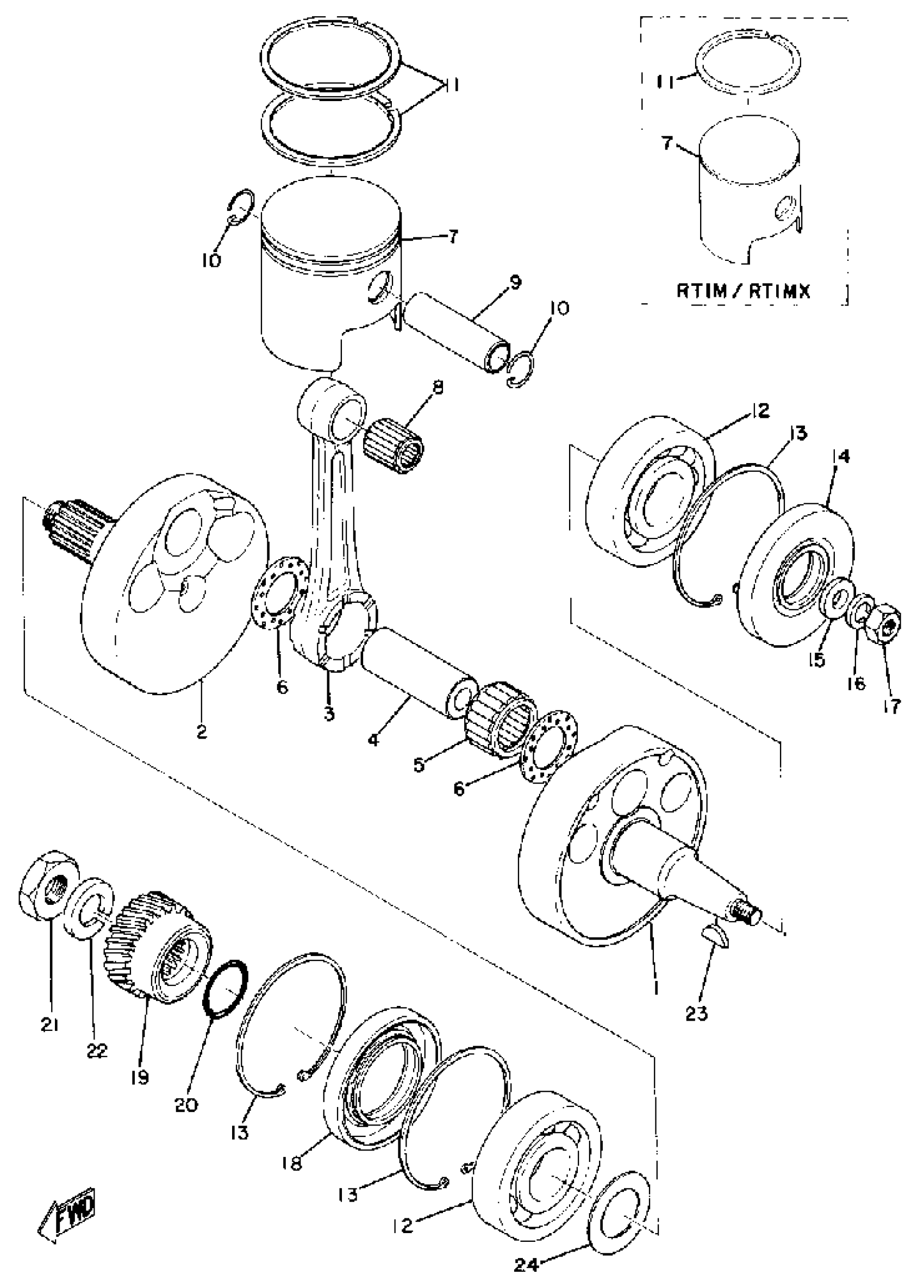

Find the part on the Crank & Piston diagram for your 1970 Yamaha RT1 (RT1M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha RT1 (RT1M) Crank & Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSEMBLY

(275-11400-00-00)

1
Out of stock

1

CRANK 1

(275-11412-00-00)

1
Out of stock

2

CRANK 2

(275-11422-00-00)

1
Out of stock

3

. ROD, CONNECTING

431-11651-00-00

1
Out of stock

4

PIN, CRANK

2X4-11681-00-00

1

$73.68

In stock

5

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

—

$66.55

In stock

6

WASHER 275116850000

90209-25085-00

1

$10.43

In stock

7

PISTON STD

(275-11631-00-96)

1
Out of stock

7

PISTON 1 O/S 0.25

(275-11635-00-00)

1
Out of stock

7

PISTON 2 O/S 0.50

(275-11636-00-00)

1
Out of stock

7

PISTON 3 O/S 0.75

(275-11637-00-00)

1
Out of stock

7

PISTON 4 O/S 1.00

(275-11638-00-00)

1
Out of stock

7

PISTON STD

(284-11631-00-96)

1
Out of stock

7

PISTON 1 O/S 0.25

(284-11635-00-00)

1
Out of stock

7

PISTON 2 O/S 0.50

(284-11636-00-00)

1
Out of stock

7

PISTON 3 O/S 0.75

(284-11637-00-00)

1
Out of stock

7

PISTON 4 O/S 1.00

(284-11638-00-00)

1
Out of stock

8

—

$32.87

In stock

9

PIN, PISTON

275-11633-00-00

—

$30.66

In stock

10

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

11

PISTON RINGSET STD

(275-11601-00-00)

1
Out of stock

11

PISTON RINGSET 1ST

(275-11601-10-00)

1
Out of stock

11

PISTON RINGSET 2ND

(275-11601-20-00)

1
Out of stock

11

PISTON RINGSET 3RD

(275-11601-30-00)

1
Out of stock

11

PISTON RINGSET 4TH

(275-11601-40-00)

1
Out of stock

11

RING, PISTON STD

(284-11611-00-00)

1
Out of stock

11

RING, PISTON 1ST

(284-11611-10-00)

1
Out of stock

11

RING, PISTON 2ND

284-11611-20-00

1
Out of stock

11

RING, PISTON 3RD

(284-11611-30-00)

1
Out of stock

11

RING, PISTON 4TH

(284-11611-40-00)

1
Out of stock

12

BEARING(3KW)

93306-30630-00

—

$64.14

In stock

13

CIRCLIP, R-TYPE

(93420-72023-00)

1
Out of stock

14

OIL SEAL, SW-TYPE (SW-30-72-10)

93103-30044-00

1
Out of stock

15

WASHER (492)

90201-12535-00

—
Out of stock

16

SPRING

214-16119-00-00

—
Out of stock

16

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

17

NUT(55K)

90170-12347-00

—

$8.43

In stock

18

OIL SEAL, SW-TYPE (SW-42-72-10)

93103-42045-00

1
Out of stock

19

GEAR, PRI DRIVE

(214-16111-00-00)

1
Out of stock

20

O-RING (437)

93210-24235-00

—

$5.72

In stock

21

NUT

90170-18089-00

1
Out of stock

22

WASHER(N15)

92907-18100-00

—

$7.09

In stock

23

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

24

. SHIM, CRANK 4 (25-44-03)

156-11564-00-03

1
Out of stock

24

. SHIM, CRANK 4 (25-44-05)

156-11564-00-04

1
Out of stock
