1970 Yamaha RT1 (RT1M) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1970 Yamaha RT1 (RT1M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

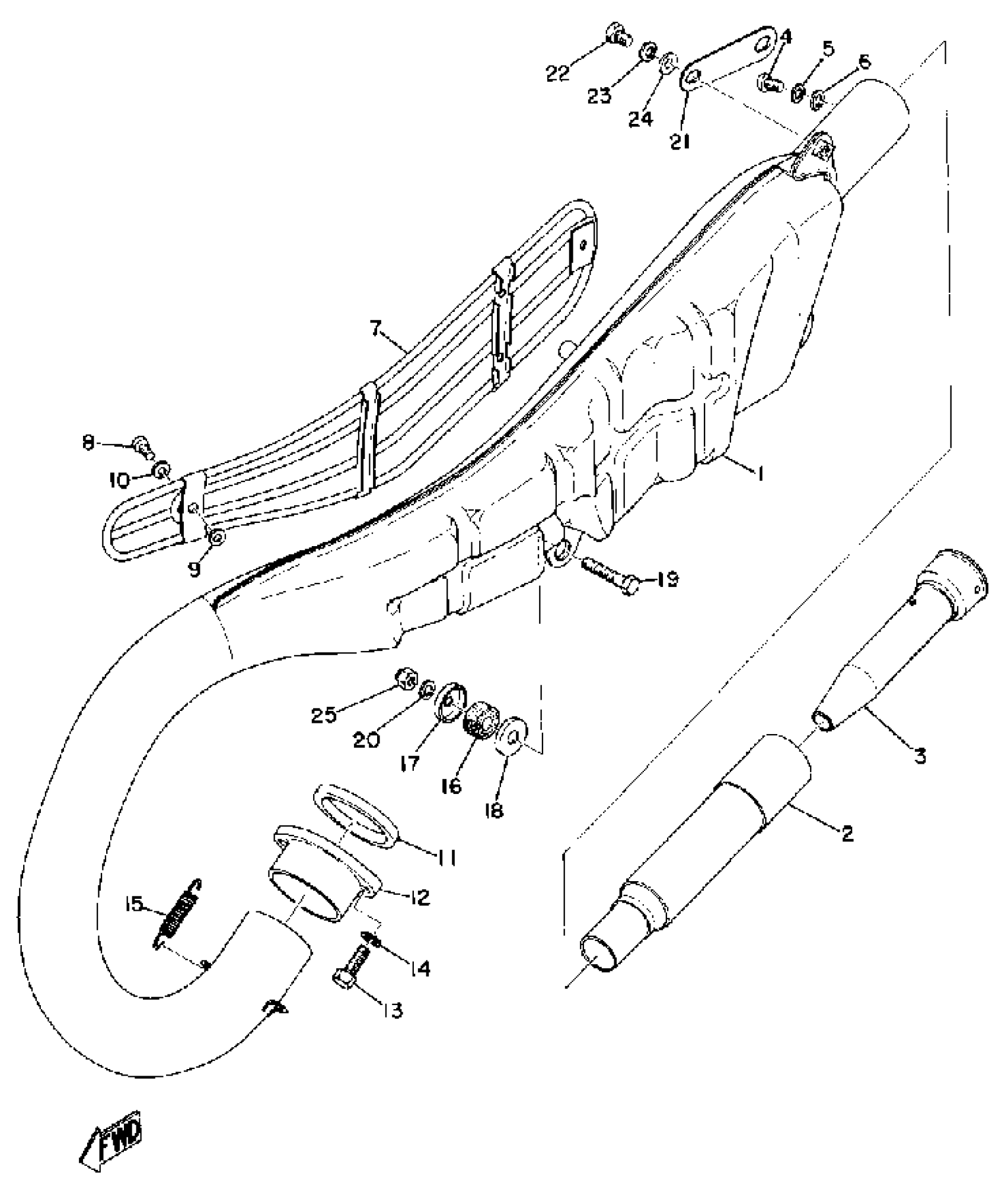

1970 Yamaha RT1 (RT1M) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(291-14610-30-00)

1
Out of stock

2

SILENCER, EXHAUST

(275-14753-30-00)

1
Out of stock

3

PIPE, OUTLET

(275-14752-30-00)

1
Out of stock

3

. PIPE, OUTLET

291-14752-30-00

1
Out of stock

4

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

7

PROTECTOR, MUFF 1

214-14718-00-00

1
Out of stock

8

SCREW, BIND(J45)

98980-06012-00

1

$4.70

In stock

9

WASHER, PLATE(3MT)

90202-05188-00

1

$6.18

In stock

10

WASHER, PLATE(3MB)

90202-05187-00

1

$1.32

In stock

11

GASKET, EXHAUST PIPE

214-14613-09-00

1

$15.83

In stock

12

NUT, RING

(214-14612-00-00)

1
Out of stock

13

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

SPRING 214-14683-01

90506-12029-00

—

$6.49

In stock

16

GROMMET (16R)

90480-14329-00

—

$6.68

In stock

17

PLATE, MUFFLER

(214-14793-01-00)

1
Out of stock

18

PLATE, MUFFLER

(214-14794-00-00)

1
Out of stock

19

BOLT(3RV)

97014-06035-00

—

$1.54

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

STAY, MUFFLER 1

214-14771-00-00

1
Out of stock

22

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

25

NUT, REAR FENDER

(214-21635-00-00)

1
Out of stock
