1970 Yamaha RT1 (RT1M) Cylinder - Crankcase Diagram

← All diagrams

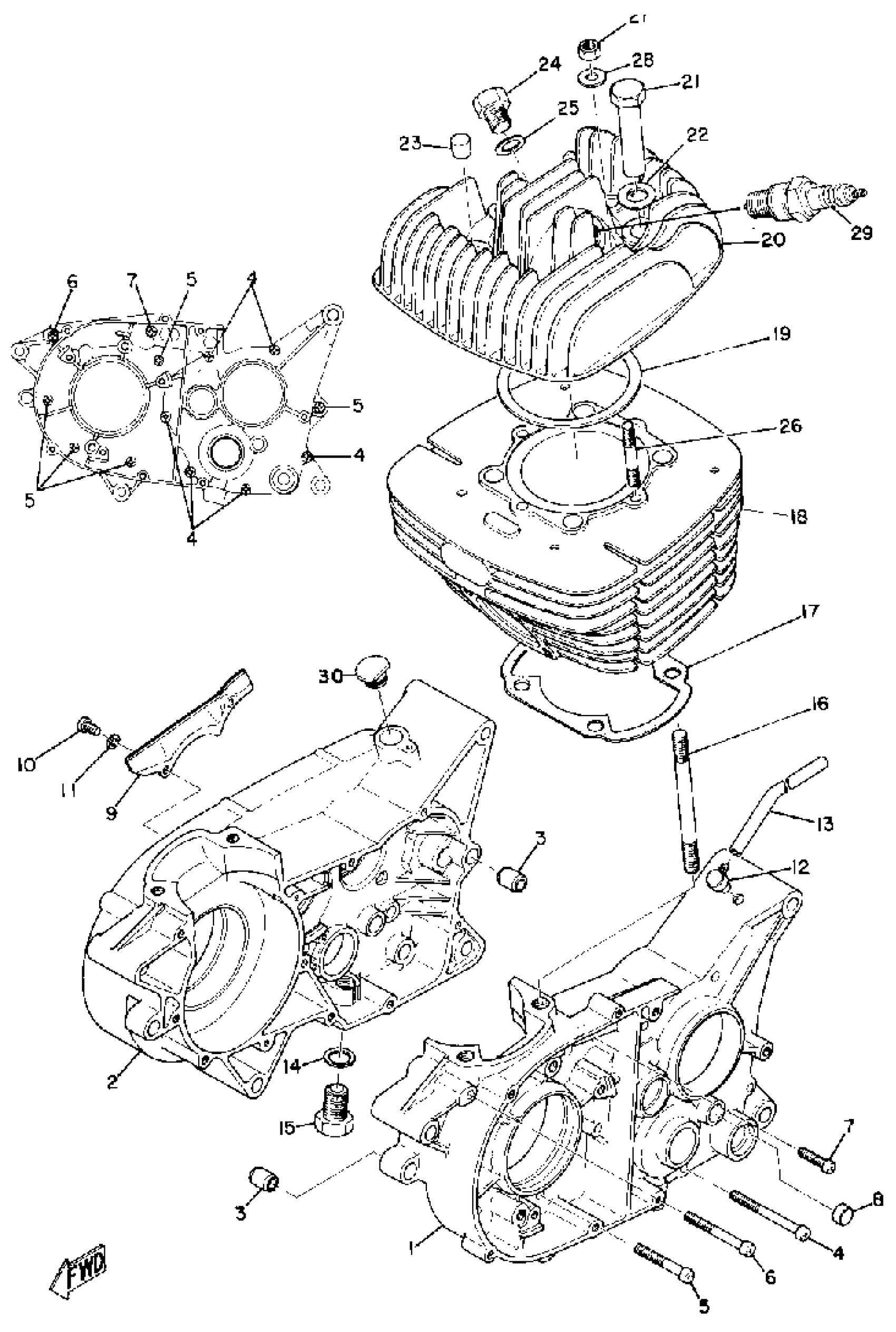

Find the part on the Cylinder - Crankcase diagram for your 1970 Yamaha RT1 (RT1M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1970 Yamaha RT1 (RT1M) Cylinder - Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(275-15111-01-00)

1
Out of stock

2

CRANKCASE 2

(275-15121-01-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

SCREW PAN HEAD

98580-06565-00

—
Out of stock

5

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

6

SCREW, BIND (JH1)

98580-06560-00

—

$6.86

In stock

7

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

8

PLUG, BLIND

214-15385-00-00

—

$6.72

In stock

9

COVER

(214-15492-00-00)

1
Out of stock

10

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

11

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

12

BREATHER

583-15371-00-00

1
Out of stock

13

HOSE(7EG)

90446-07241-00

1

$7.42

In stock

14

WASHER, PROTECTOR

4F4-14766-00-00

1

$6.11

In stock

15

BOLT

90109-14385-00

1

$13.66

In stock

16

BOLT, STUD (214-11361-00)

90116-10089-00

1
Out of stock

17

GASKET, CYLINDER

275-11351-09-00

1
Out of stock

18

CYLINDER 1

(275-11311-01-00)

1
Out of stock

18

CYLINDER 1

(284-11311-00-00)

1
Out of stock

19

GASKET (275-11181-00)

90430-83065-00

1
Out of stock

20

HEAD, CYLINDER 1

(275-11111-00-00)

1
Out of stock

20

NO LONGER AVAILABLE

284-11111-00-00

1
Out of stock

21

NUT, SPEC''L SHAPE

(90179-10182-00)

1
Out of stock

22

WASHER, PLATE (3X3)

90201-15797-00

—

$6.29

In stock

23

ABSORBER 1

(171-11161-00-00)

1
Out of stock

24

PLUG, BLIND

90340-14022-00

1
Out of stock

25

GASKET

214-11198-01-00

—

$2.66

In stock

26

BOLT, STUD(3XV)

90116-08564-00

—

$9.60

In stock

27

NUT, HEXAGON

90170-08031-00

1
Out of stock

28

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

29

SPARK PLUG B9EN

(94701-00016-00)

1
Out of stock

29

BR9ES NGK SCREW TOP PLUG 4PK

BR9-ES000-00-00

1
Out of stock

30

CAP, HOUSING

(241-17819-00-00)

1
Out of stock
