1970 Yamaha RT1 (RT1M) Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1970 Yamaha RT1 (RT1M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

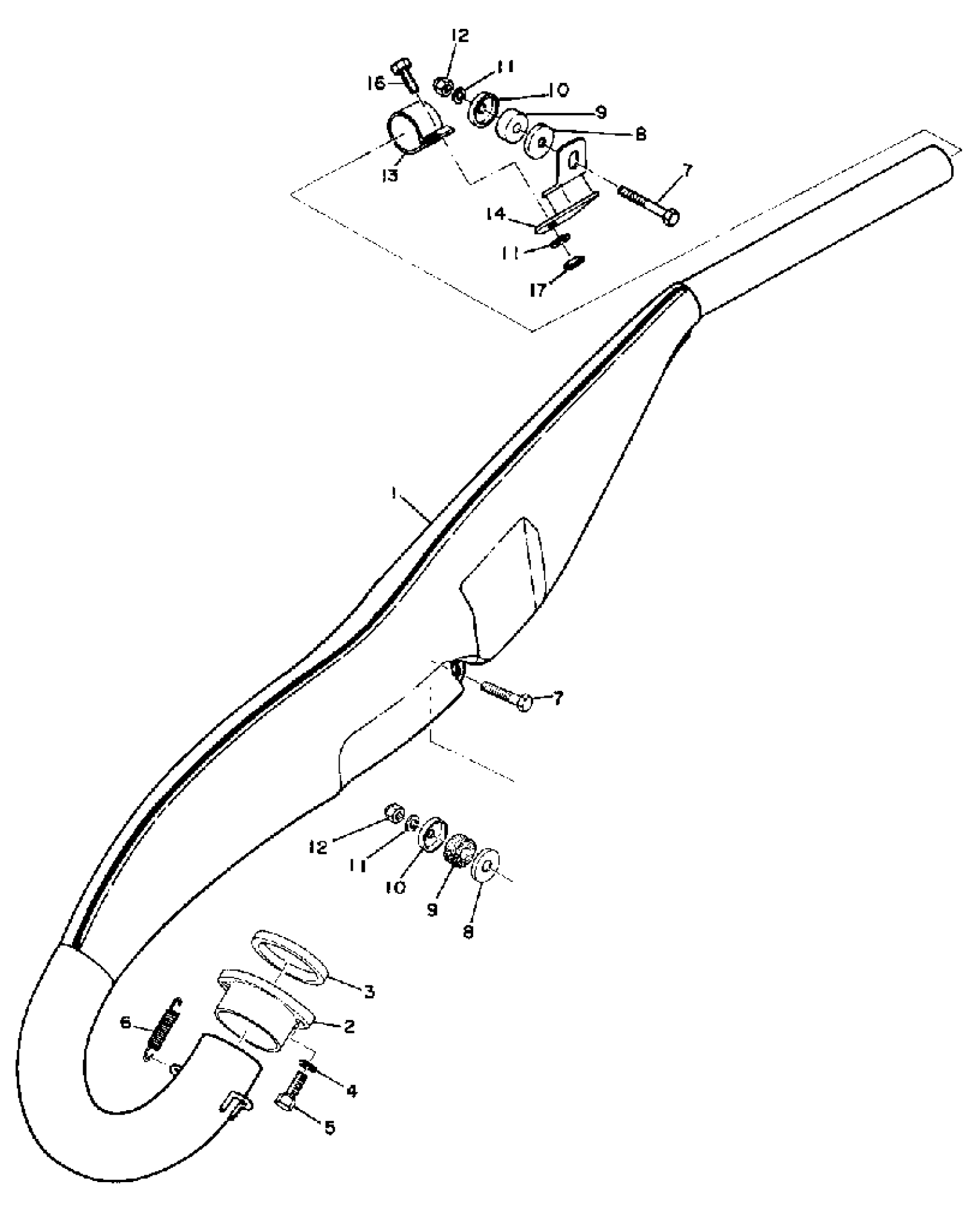

1970 Yamaha RT1 (RT1M) Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(285-14610-10-00)

1
Out of stock

2

NUT, RING

(214-14612-00-00)

1
Out of stock

3

GASKET, EXHAUST PIPE

214-14613-09-00

1

$15.83

In stock

4

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

5

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

6

SPRING 214-14683-01

90506-12029-00

—

$6.49

In stock

7

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

8

PLATE, MUFFLER

(214-14794-00-00)

1
Out of stock

9

GROMMET (16R)

90480-14329-00

1

$6.68

In stock

10

PLATE, MUFFLER

(214-14793-01-00)

1
Out of stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

NUT, REAR FENDER

(214-21635-00-00)

1
Out of stock

13

STAY, MUFFLER 2

(285-14781-11-00)

1
Out of stock

14

STAY, MUFFLER

(285-14791-10-00)

1
Out of stock

15

BOLT, HEXAGON

97013-06045-00

1

$1.51

In stock

16

BOLT, HEXAGON

97017-06020-00

1

$2.55

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock
