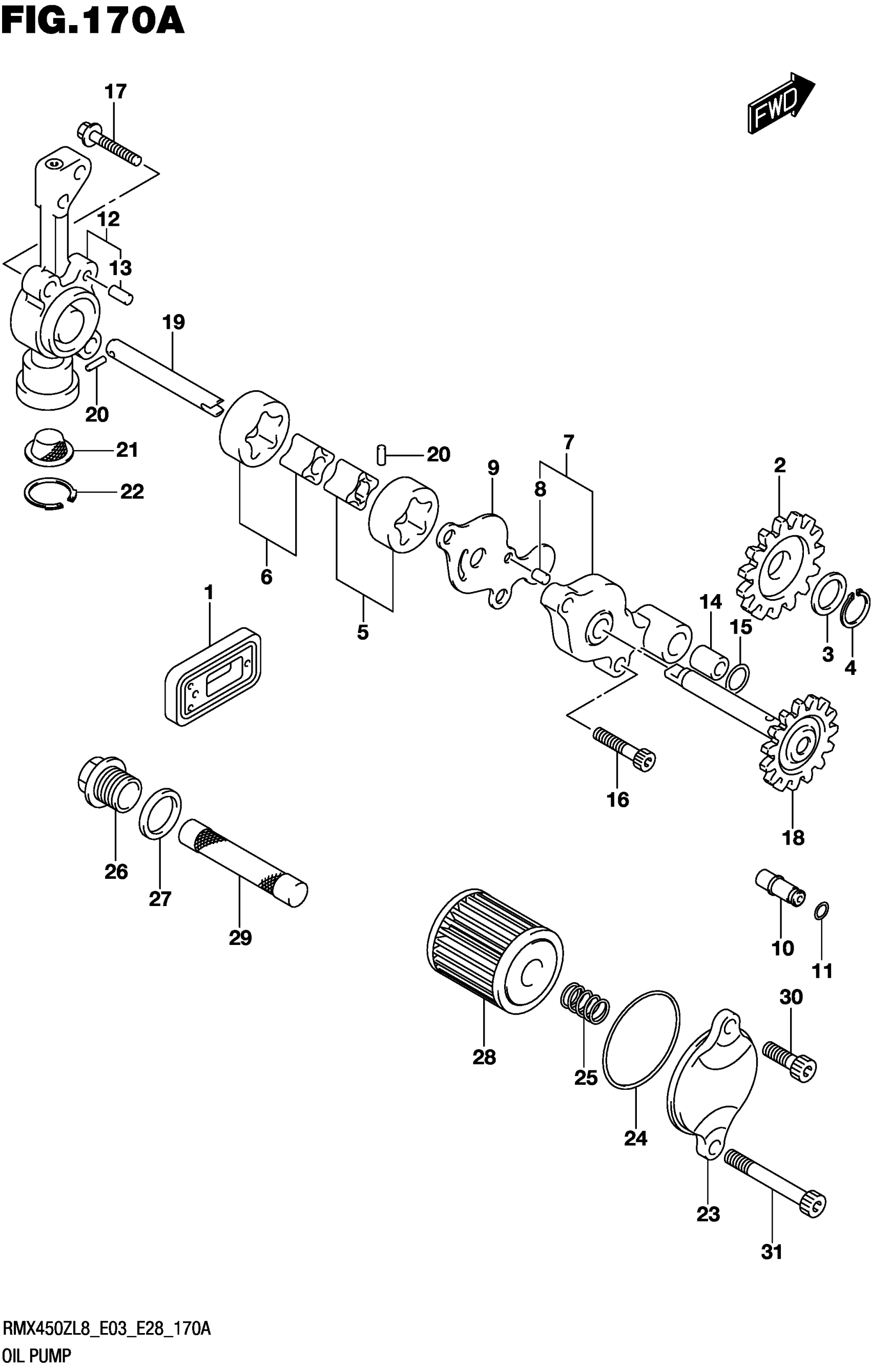

Find the part on the OIL Pump diagram for your 2018 Suzuki RMX450ZL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki RMX450ZL8 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE ASSY

13150-28H00

1

$48.37

In stock

2

1

$75.98

In stock

3

SHIM (12X18X0.5)

09181-12130

1

$2.23

In stock

4

CIRCLIP

08331-3112A

1
Out of stock

5

1

$49.72

In stock

6

ROTOR SET,OIL PUMP

16410-45G00

1

$40.72

In stock

7

COVER,OIL PUMP NO.1

16430-28H00

1

$49.73

In stock

8

PIN (4X13.8)

04221-04089

1
Out of stock

9

PLATE,OIL PUMP NO.1

16432-35G10

1

$8.73

In stock

10

VALVE ASSY,OIL RELIEF

16440-28H00

1

$83.62

In stock

11

O-RING (D:1.2,ID:4.7)

09280-05007

1
Out of stock

12

COVER

16450-28H01

1
Out of stock

13

PIN (4X13.8)

04221-04089

1
Out of stock

14

PIN (8.5X18X2.3)

04211-09149

1
Out of stock

15

1

$3.58

In stock

16

BOLT

07130-0520A

2

$2.40

In stock

17

BOLT

01547-0625A

1
Out of stock

18

1

$86.12

In stock

19

SHAFT,OIL PUMP NO.2

16443-28H00

1

$21.88

In stock

20

PIN (2.5X11.8)

09261-02008

2

$1.77

In stock

21

1

$10.97

In stock

22

CIRCLIP

08331-4119A

1
Out of stock

23

1

$24.46

In stock

25

SPRING

09440-10038

1

$3.00

In stock

26

CAP,ENG OIL STRAINER

16316-10H01

1

$26.77

In stock

27

GASKET (16X22X2)

09168-16002

1
Out of stock

28

FILTER ASSY,ENG OIL

16510-35G00

1

$9.67

In stock

29

STRAINER

16520-10H00

1

$28.80

In stock

30

BOLT

01547-0616A

1
Out of stock

31

BOLT

01547-0640A

1
Out of stock
