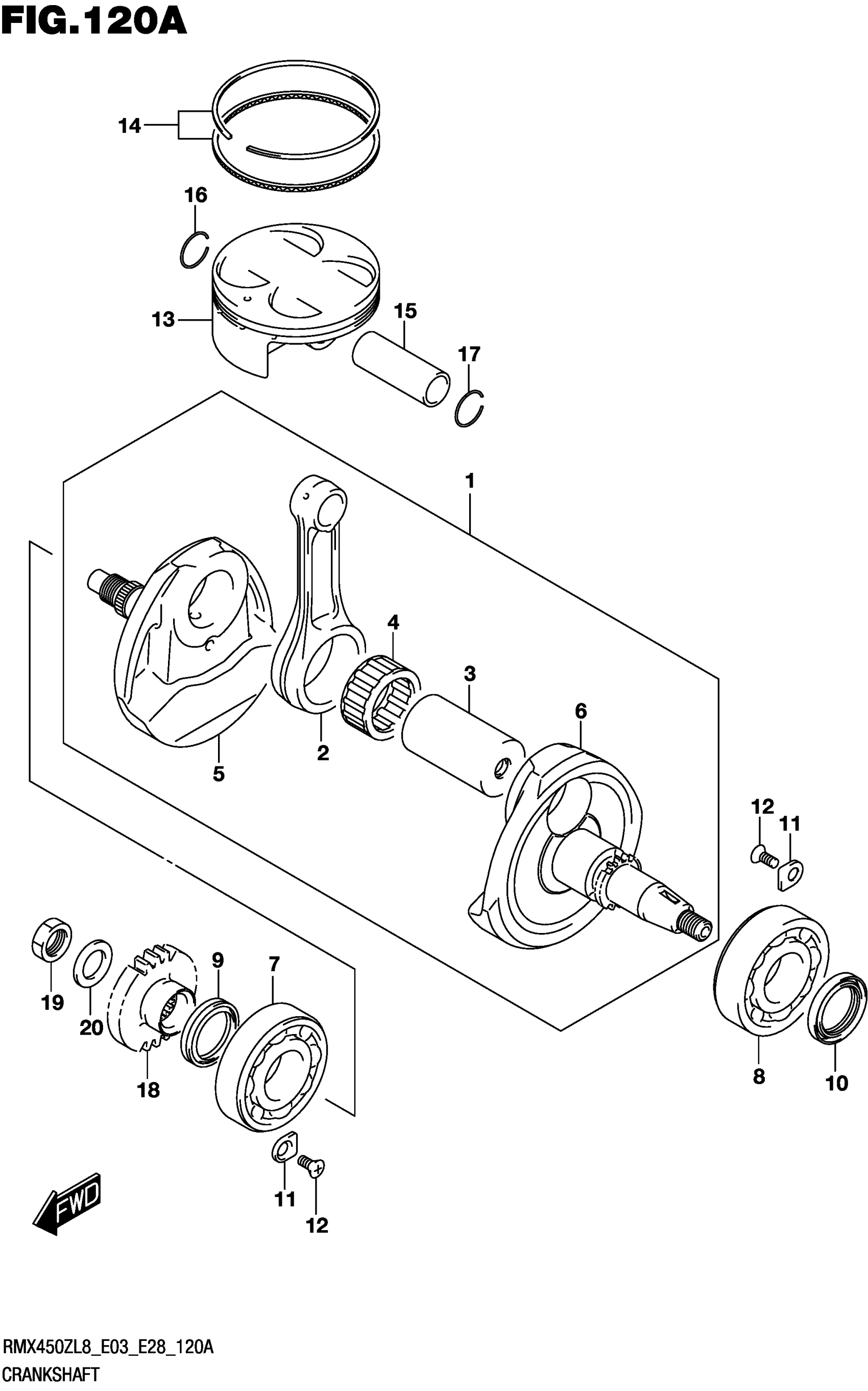

Find the part on the Crankshaft diagram for your 2018 Suzuki RMX450ZL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki RMX450ZL8 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY

12200-02J10

1

$761.75

In stock

2

.ROD

12160-28H00-0B0

1

$230.95

In stock

3

.PIN

12210-35G03

1

$105.67

In stock

4

.BEARING (34X42X20)

09263-34014-0B0

1

$152.90

In stock

5

.CRANKSHAFT

12220-02J00

—
Out of stock

6

.CRANKSHAFT

12261-02J00

—
Out of stock

7

1

$96.62

In stock

8

1

$144.80

In stock

10

1

$19.95

In stock

11

RETAINER

24741-20A00

4

$2.92

In stock

12

SCREW (6X12)

09126-06011

4
Out of stock

13

PISTON

12111-28H10-0F0

1

$294.72

In stock

14

RING SET,PISTON

12140-28820

1

$53.15

In stock

15

PIN

12151-35G01

1

$24.46

In stock

16

RING,SNAP

09381-19001

1

$2.48

In stock

17

CIRCLIP (21.5X1.2)

09381-19005

1
Out of stock

18

GEAR,PRIMARY DRIVE (NT:24)

21111-28H00

1
Out of stock

19

NUT

09140-16036

1

$16.05

In stock

20

WASHER

09164-16002

1
Out of stock
