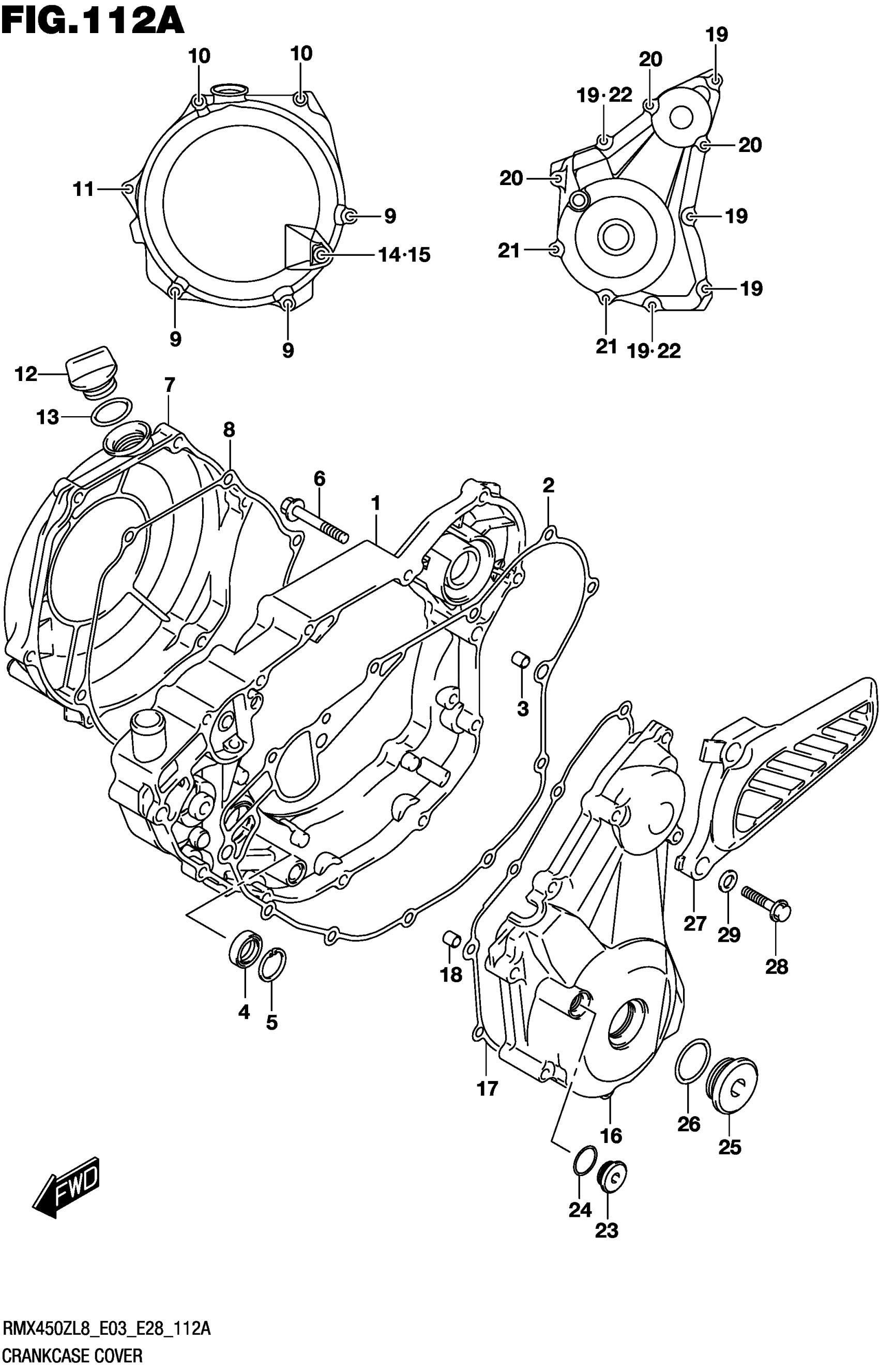

Find the part on the Crankcase Cover diagram for your 2018 Suzuki RMX450ZL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki RMX450ZL8 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER

11340-28H10

1

$275.40

In stock

2

.GASKET,CLUTCH COVER

11482-28H00

1

$23.96

In stock

3

PIN (8.5X18X2.3)

04211-09149

2
Out of stock

4

SEAL,OIL (12X22X6)

09282-12012

1

$19.53

In stock

5

CIRCLIP

08331-41249

1
Out of stock

6

BOLT

01547-0625A

7
Out of stock

7

COVER,CLUTCH OUTER

11371-02J00

1

$254.50

In stock

8

1

$15.82

In stock

9

BOLT

01547-0625A

3
Out of stock

10

BOLT

01547-0665A

2

$2.52

In stock

11

.BOLT

01547-0670A

1
Out of stock

12

PLUG

09259-20008-XC0

1

$7.27

In stock

13

O-RING (D:3.1,ID:16.8)

09280-17003

1
Out of stock

14

SCREW (6X10)

09139-06055

1

$1.70

In stock

15

GASKET (6.2X11X1.2)

09168-06004

1
Out of stock

16

COVER

11351-02J00

1

$334.73

In stock

17

.GASKET

11483-02J00

1

$22.32

In stock

18

PIN (8.5X18X2.3)

04211-09149

1
Out of stock

19

BOLT

01547-0625A

5
Out of stock

20

BOLT

01547-0640A

3
Out of stock

21

BOLT

01547-0650A

2
Out of stock

22

GASKET (5.8X13X1.2)

09168-06023

2
Out of stock

23

PLUG (12X9)

09248-12007

1
Out of stock

24

O-RING (D:1.9,ID:9.8)

09280-10016

1
Out of stock

25

PLUG (26X9)

09259-26011

1

$10.69

In stock

26

O-RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

27

COVER

11360-02J00

1
Out of stock

28

BOLT (6X30)

09103-06297

2
Out of stock

29

WASHER

08322-0106A

2
Out of stock
