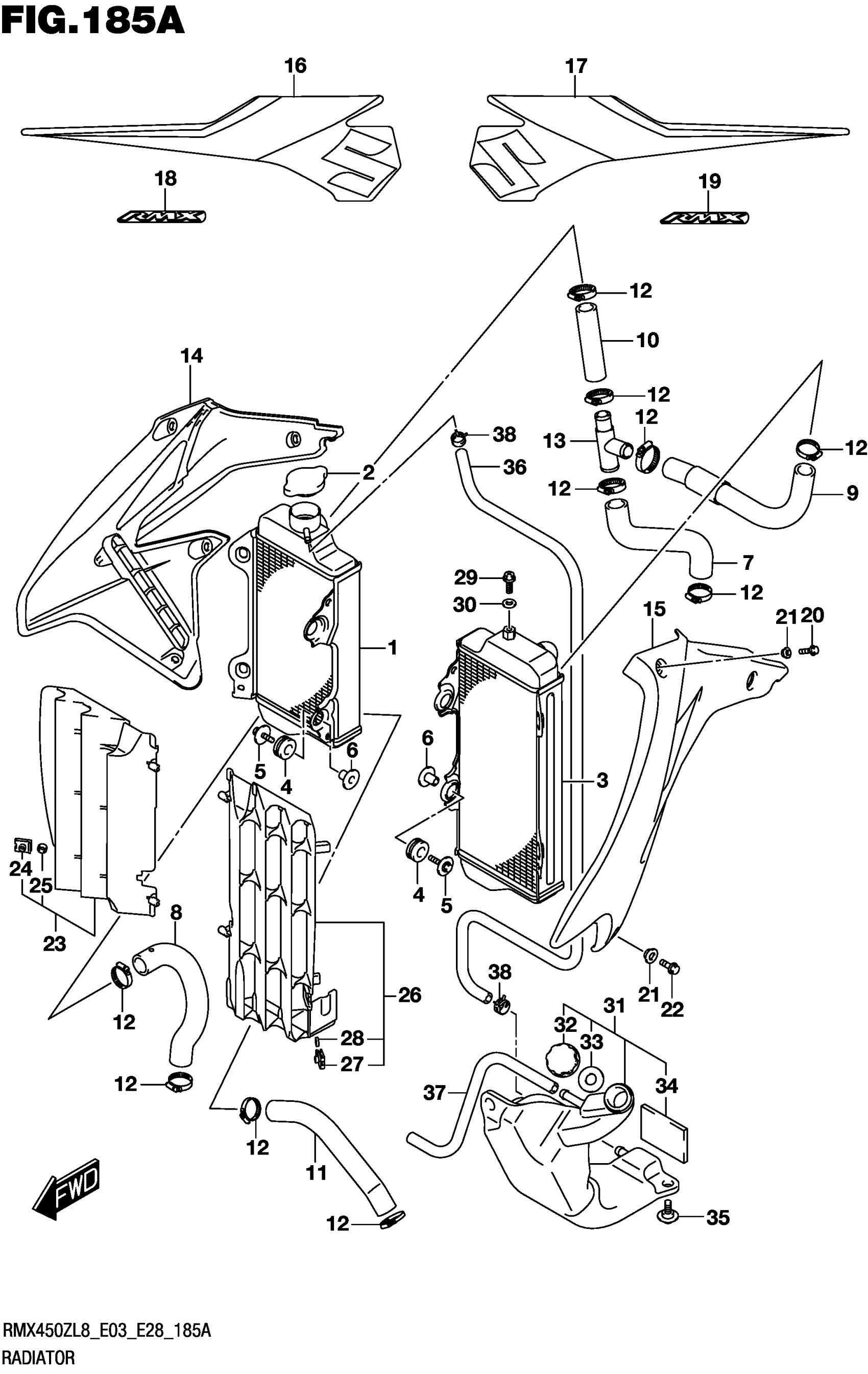

Suzuki RMX450ZL8 (2018) RADIATOR Diagram

#

Description
Price

1

RADIATOR

17710-28H21

$442.80

2

CAP,RADIATOR (1.1)

17730-08J00

$38.90

3

RADIATOR

17720-28H20

$509.05

4

CUSHION RADIATOR LWR

17787-19A00

$3.26

5

BOLT (6X25)

09116-06186

$2.66

6

SPACER (6.5X10.5X14.1)

09180-06243

$4.92

7

HOSE

17851-28H00

$20.97

8

HOSE

17852-28H00

$25.42

9

HOSE

17853-28H10

$26.45

10

HOSE

17854-28H00

Unavailable

11

HOSE

17855-28H00

$20.53

12

CLAMP

09402-28513

$6.31

13

JOINT

17860-02J00

Unavailable

14

COVER

17761-28H02-GY8

$116.63

14

COVER

17761-28H02-GY8

$116.63

15

COVER

17762-28H02-GY8

$116.63

15

COVER

17762-28H02-GY8

$116.63

16

TAPE

68111-02J00-BLB

$34.17

17

TAPE

68121-02J00-BLB

Unavailable

18

EMBLEM

68666-02J00-AR9

$24.27

19

EMBLEM

68666-02J00-AR9

$24.27

20

BOLT

01547-0612A

$2.01

21

WASHER

47191-02J00

$20.47

22

BOLT

01547-0616A

$2.01

23

LOUVER

17801-28H10

$58.93

24

.NUT

09148-06017

$2.93

25

.SPACER (6.2X10X2.2)

09180-06129

$1.47

26

LOUVER

17802-28H10

$58.93

27

.NUT

09148-06017

$2.93

28

.SPACER (6.2X10X2.2)

09180-06129

$1.47

29

UNION BOLT,AIR VENT

17568-50F00

$6.32

30

GASKET (6.4X11.5X0.84)

09168-06026

$2.80

31

TANK ASSY

17910-02J00

Unavailable

32

.CAP

17931-02J00

Unavailable

33

.GASKET

17932-02J00

Unavailable

34

.CUSHION

17912-02J00

Unavailable

35

BOLT

17913-02J00

Unavailable

36

HOSE

17981-02J00

$28.05

37

HOSE (5X9X600) | L:600->360

09352-50901-600

$7.37

38

CLIP (ID:8.6)

09401-08411

$1.77
