2018 Suzuki RMX450ZL8 CAM Chain Diagram

← All diagrams

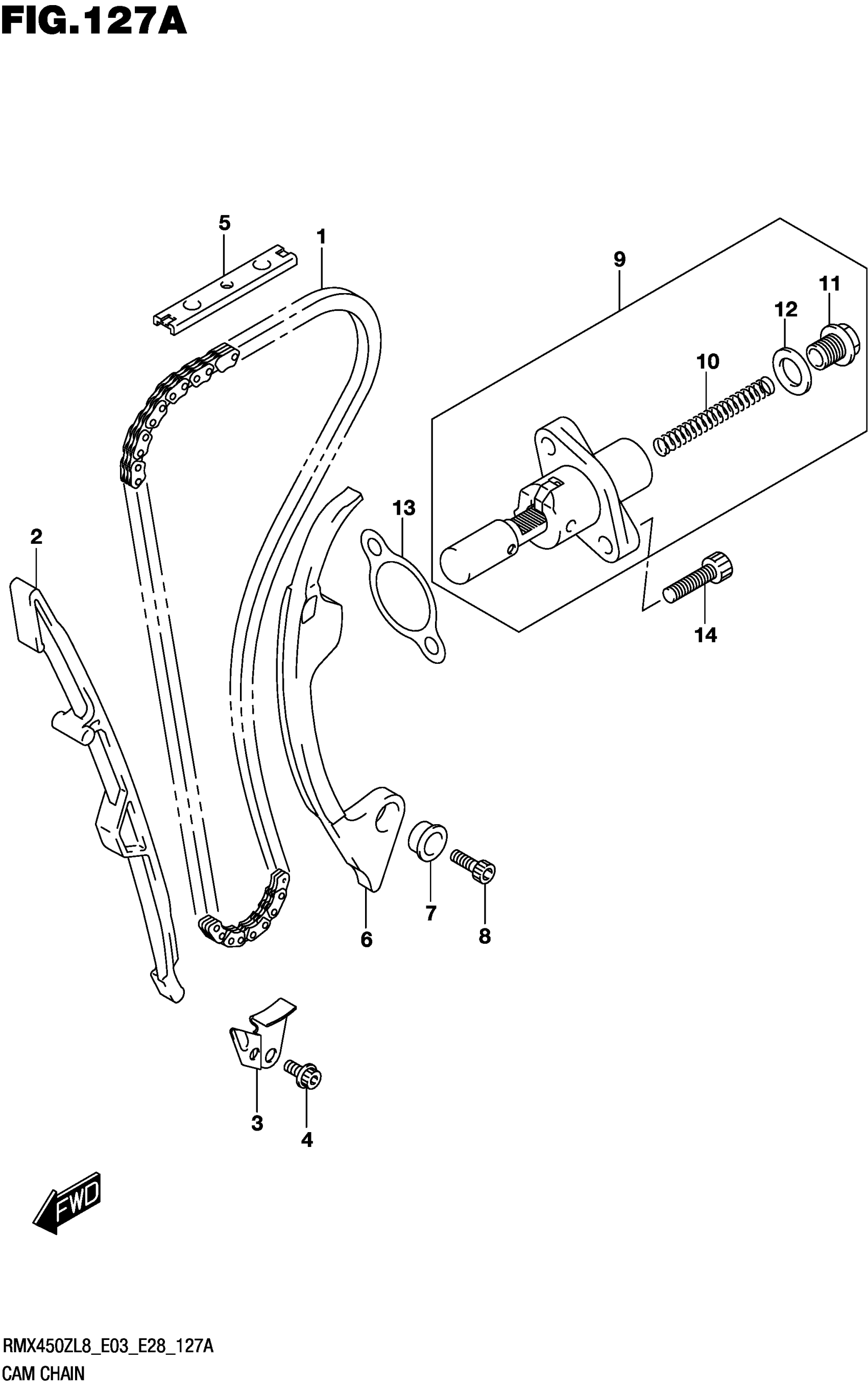

Find the part on the CAM Chain diagram for your 2018 Suzuki RMX450ZL8, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Suzuki RMX450ZL8 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$49.96

In stock

1

1

$49.96

In stock

2

GUIDE

12771-28H00

1

$44.63

In stock

3

1

$9.08

In stock

4

.BOLT

07120-0610A

1
Out of stock

6

1

$87.92

In stock

7

1

$17.12

In stock

8

BOLT This part replaces 07130-0616A.

07130-0616B

1
Out of stock

9

ADJUSTER ASSY

12830-35G10

1

$190.43

In stock

10

.SPRING

12831-39F00

1

$5.91

In stock

11

.PLUG

12833-05A00

1

$21.62

In stock

12

1

$4.76

In stock

13

1

$3.24

In stock

14

BOLT (6X25)

07130-0625A

2

$2.85

In stock
