2009 Suzuki RM-Z450 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2009 Suzuki RM-Z450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

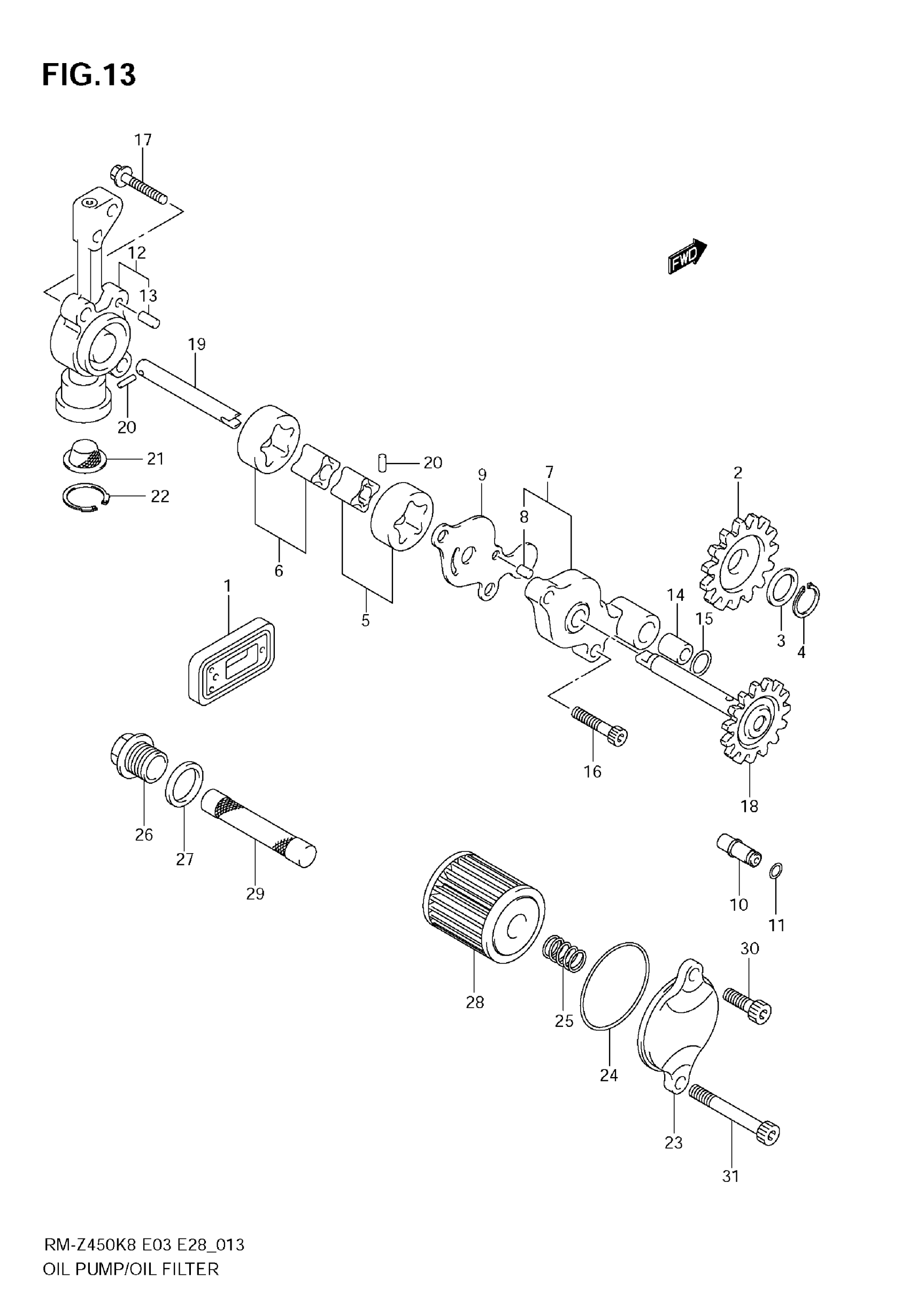

2009 Suzuki RM-Z450 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE ASSY, OIL REED

13150-28H00

1
Out of stock

2

GEAR,OIL PUMP IDLE (NT:15)

16321-28H00

1
Out of stock

3

WASHER

09181-12130

1
Out of stock

4

CIRCLIP This part replaces 08331-31129.

08331-3112A

1
Out of stock

5

ROTOR SET,OIL PUMP NO.1

16410-35G00

1
Out of stock

6

ROTOR SET,OIL PUMP

16410-45G00

1
Out of stock

7

COVER,OIL PUMP NO.1 | Includes Item(s) 8

16430-28H00

1
Out of stock

8

PIN (4X13.8)

04221-04089

1
Out of stock

9

PLATE,OIL PUMP NO.1

16432-35G10

1
Out of stock

10

VALVE ASSY, OIL RELIEF

16440-28H00

1
Out of stock

11

O RING

09280-05007

1
Out of stock

12

COVER, OIL PUMP NO.2 | Includes Item(s) 13 This part replaces 16450-28H00.

16450-28H01

1
Out of stock

13

PIN (4X13.8)

04221-04089

1
Out of stock

14

PIN

04211-09149

1
Out of stock

15

.O RING (D:1.9,ID:8.6)

09280-09005

1
Out of stock

16

BOLT

07130-0520B

2
Out of stock

17

BOLT

09103-06250

1
Out of stock

18

SHAFT,OIL PUMP DRIVEN GEAR (N

16440-35G10

1
Out of stock

19

SHAFT,OIL PUMP NO.2

16443-28H00

1
Out of stock

20

PIN

09261-02008

2

$1.77

In stock

21

STRAINER,OIL PUMP NO.2

16530-28H00

1
Out of stock

22

CIRCLIP This part replaces 08331-41196.

08331-4119A

1
Out of stock

23

CAP,ENG OIL FILTER OUTER

16315-35G30

1
Out of stock

24

O-RING (D:2,ID:38.5) This part replaces 09280-39001.

09280-39002

1
Out of stock

25

SPRING

09440-10038

1
Out of stock

26

CAP, ENG OIL STRAINER | MODEL K8 This part replaces 16316-10H00.

16316-10H01

1
Out of stock

26

CAP, ENG OIL STRAINER | MODEL K9

16316-10H01

1
Out of stock

27

GASKET

09168-16003

1
Out of stock

28

FILTER, ENG OIL

16510-35G00

1
Out of stock

29

STRAINER, ENGINE OIL

16520-10H00

1
Out of stock

30

BOLT

09103-06234

1
Out of stock

31

BOLT

01547-0640A

1
Out of stock
