2009 Suzuki RM-Z450 Crankshaft Diagram

← All diagrams

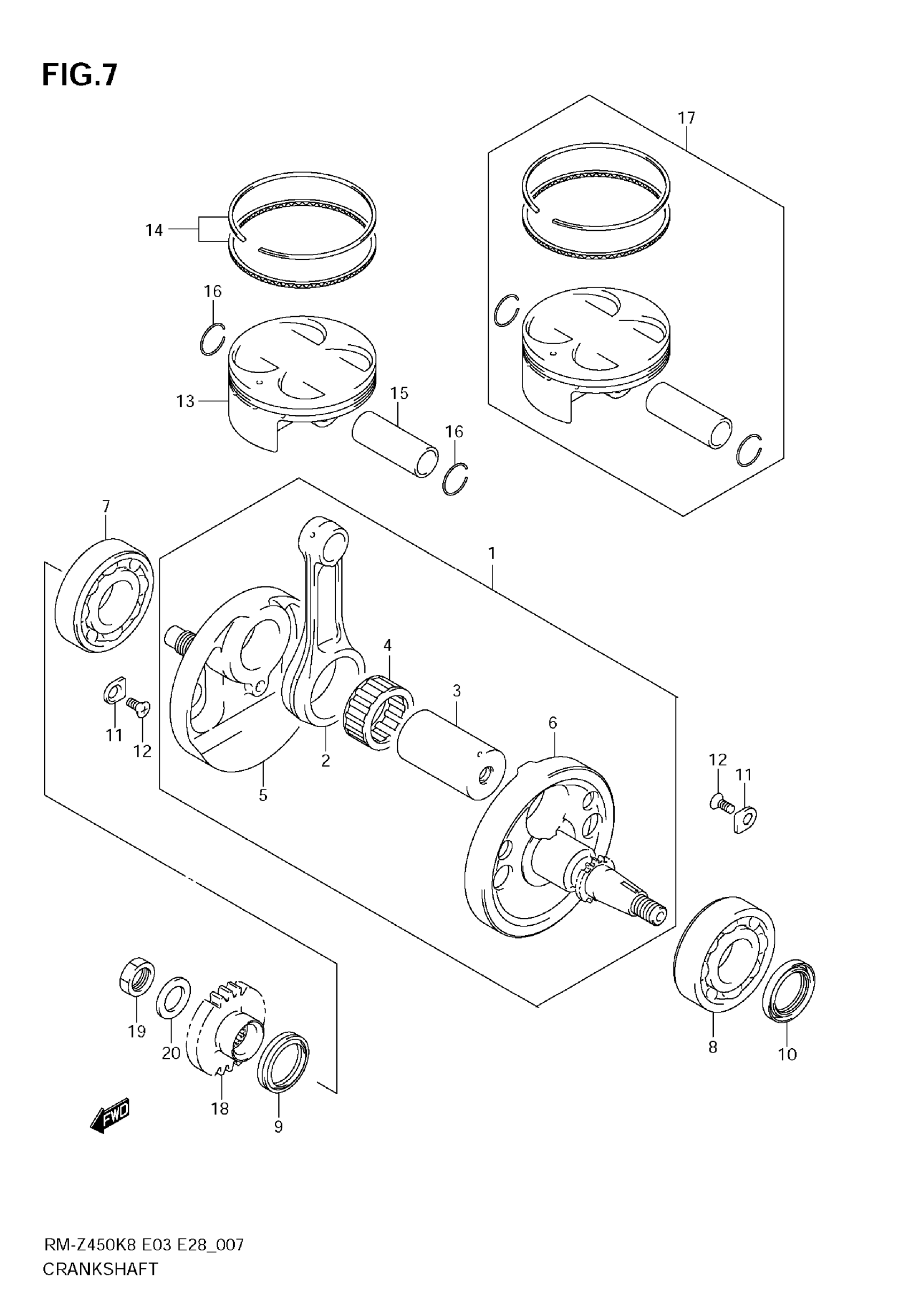

Find the part on the Crankshaft diagram for your 2009 Suzuki RM-Z450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki RM-Z450 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKSHAFT ASSY | MODEL K8 This part replaces 12200-28H00.

12200-28H12

1
Out of stock

1

CRANKSHAFT ASSY | MODEL K9; Includes Item(s) 2 - 6 This part replaces 12200-28H01.

12200-28H12

1
Out of stock

2

ROD, CONNECTING

12160-28H00-0B0

1
Out of stock

3

PIN | MODEL K8 This part replaces 12210-35G01.

12210-35G03

1
Out of stock

3

PIN | MODEL K9 This part replaces 12210-35G02.

12210-35G03

1
Out of stock

4

BEARING (34X42X20) This part replaces 09263-34012-0B0.

09263-34014-0B0

1
Out of stock

5

CRANKSHAFT, RH This part replaces 12220-28H00.

12220-28H10

1
Out of stock

6

CRANKSHAFT, LH This part replaces 12261-28H00.

12261-28H10

1
Out of stock

7

BEARING, RH

09262-30115

1
Out of stock

8

BEARING, LH

09262-32017

1
Out of stock

9

SEAL,OIL (30X40X7) This part replaces 09283-30061.

09283-30076

1
Out of stock

10

SEAL,OIL This part replaces 09283-32037.

09283-32044

1
Out of stock

11

RETAINER

24741-20A00

4
Out of stock

12

SCREW

09126-06011

4
Out of stock

13

PISTON This part replaces 12111-28H00-0F0.

12111-28H10-0F0

1
Out of stock

14

RING SET, PISTON

12140-28810

1
Out of stock

15

PIN, PISTON

12151-35G01

1
Out of stock

16

RING,SNAP

09381-19001

2
Out of stock

17

PISTON KIT INC.REF.NO.13%16 | OPT NOT SHOWN

12110-28810

1
Out of stock

18

GEAR,PRIMARY DRIVE (NT:24)

21111-28H00

1
Out of stock

19

NUT

09140-16036

1
Out of stock

20

WASHER

09164-16002

1
Out of stock
