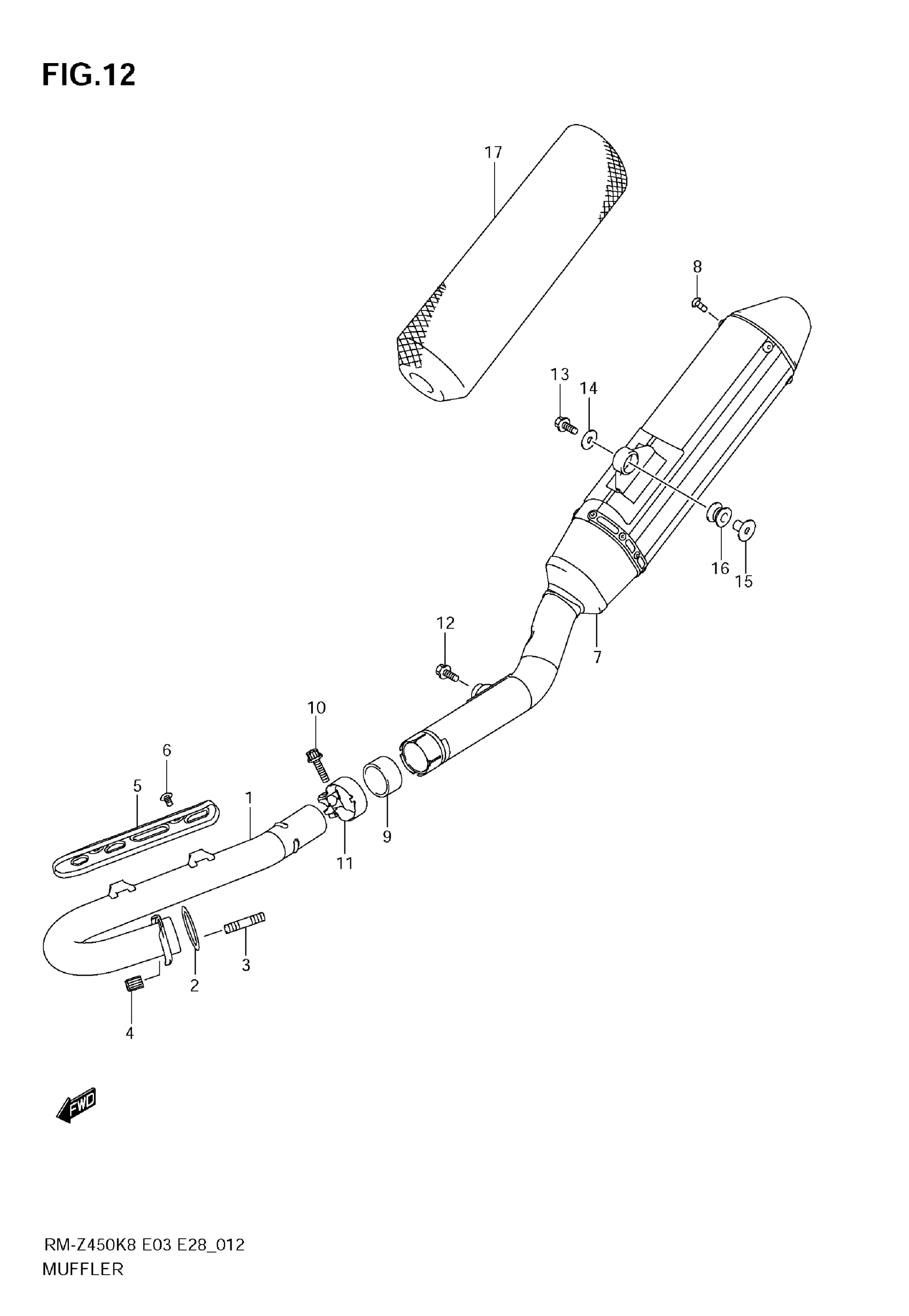

Suzuki RM-Z450 (2009) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST This part replaces 14150-28H10.

14150-28H30

Unavailable

2

.GASKET,EXHAUST PIPE

14181-35G00

$8.52

3

BOLT, STUD

01421-0816B

$2.28

4

NUT

09159-08112

$5.26

5

COVER, EXHAUST PIPE

14186-28H10

$61.78

6

SCREW (6X10)

09139-06172

$2.80

7

BODY, MUFFLER | Includes Item(s) 8

14310-28H10

Unavailable

8

SCREW

09139-05064

$2.56

9

CONNECTOR

14771-42F10

$21.17

10

BOLT, CONNECTOR

07120-0835B

$4.98

11

CLAMP, CONNECTOR

14459-28H00

$41.53

12

BOLT (8X20)

09103-08426

$5.87

13

BOLT (8X35)

09103-08391

$2.53

14

WASHER

09160-08151

$2.00

15

SPACER

09180-08151

$4.73

16

CUSHION

09320-12043

$7.20

17

SILENCER, MUFFLER | OPT

14351-28H10

Unavailable
