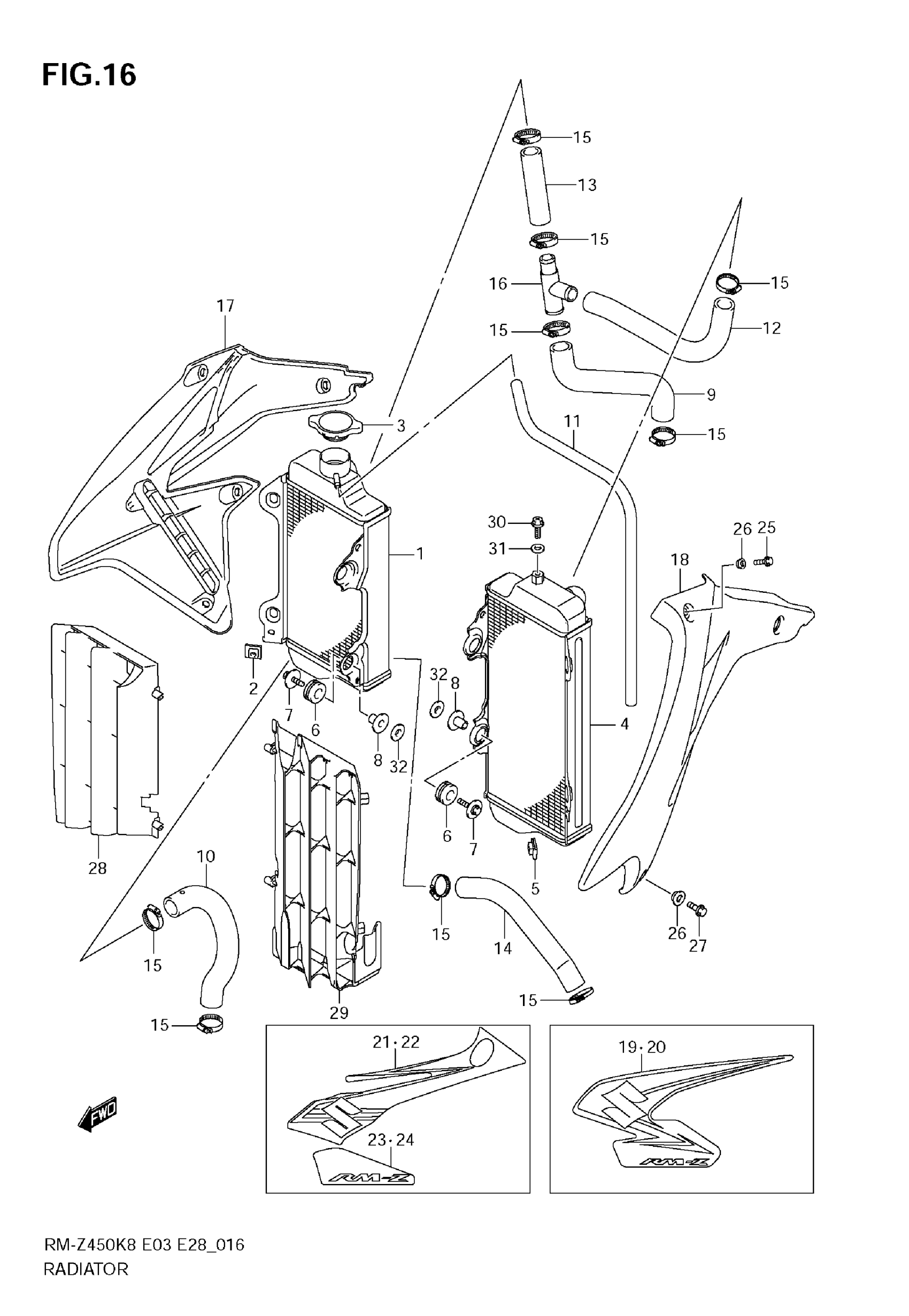

Suzuki RM-Z450 (2009) RADIATOR Diagram

RADIATOR, RH | Includes Item(s) 2 This part replaces 17710-28H00.

17710-28H21

$442.80

NUT, FAN ASSY

17712-40F00

$4.42

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$38.90

RADIATOR, LH | Includes Item(s) 5 This part replaces 17720-28H00.

17720-28H20

$509.05

NUT, FAN ASSY

17712-40F00

$4.42

CUSHION, SUPPORT

17787-19A00

$3.26

BOLT (6X25)

09116-06186

$2.66

SPACER

09180-06243

$4.92

HOSE, INLET

17851-28H00

$20.97

HOSE, OUTLET

17852-28H00

$25.42

HOSE (5X8X2000) | L:1000!650 This part replaces 09351-50803-00A.

09351-50803-00B

$8.21

HOSE, JOINT UPPER NO.1

17853-28H00

$29.80

HOSE, JOINT UPPER NO.2

17854-28H00

Unavailable

HOSE, JOINT LOWER

17855-28H00

$20.53

CLAMP

09402-28513

$6.31

JOINT, RADIATOR HOSE

17857-35G10

$8.73

COVER, RADIATOR, RH (YELLOW/BLUE) | MODEL K8

17761-28H00-EYY

Unavailable

COVER, RADIATOR RH (YELLOW/BLACK) | MODEL K9 This part replaces 17761-28H00-GY8.

17761-28H02-GY8

$116.63

COVER, RADIATOR, LH (YELLOW/BLUE) | MODEL K8

17762-28H00-EYY

Unavailable

COVER, RADIATOR LH (YELLOW/BLACK) | MODEL K9 This part replaces 17762-28H00-GY8.

17762-28H02-GY8

$116.63

TAPE, RADIATOR COVER, RH | MODEL K8

68660-28H00-EMA

Unavailable

TAPE, RADIATOR COVER, LH | MODEL K8

68670-28H00-EMA

Unavailable

TAPE, RADIATOR COVER, RH | MODEL K9

68660-28H10-FYF

Unavailable

TAPE, RADIATOR COVER, LH | MODEL K9

68670-28H10-FYF

Unavailable

EMBLEM, RADIATOR COVER, RH | MODEL K9

68665-28H00-DCP

Unavailable

EMBLEM, RADIATOR COVER, LH | MODEL K9

68675-28H00-DCP

Unavailable

BOLT (6X12)

09103-06233

$2.18

WASHER This part replaces 47191-10H01.

47191-28H00

$9.03

BOLT (6X16)

09103-06234

$2.17

LOUVER, RADIATOR RH This part replaces 17831-28H00.

17801-28H10

$58.93

LOUVER, RADIATOR LH This part replaces 17832-28H00.

17802-28H10

$58.93

BOLT, AIR RELEASE

17568-50F00

$6.32

GASKET

09168-06026

$2.80

WASHER

09160-06162

Unavailable
