2009 Suzuki RM-Z450 CAM Chain Diagram

← All diagrams

Find the part on the CAM Chain diagram for your 2009 Suzuki RM-Z450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

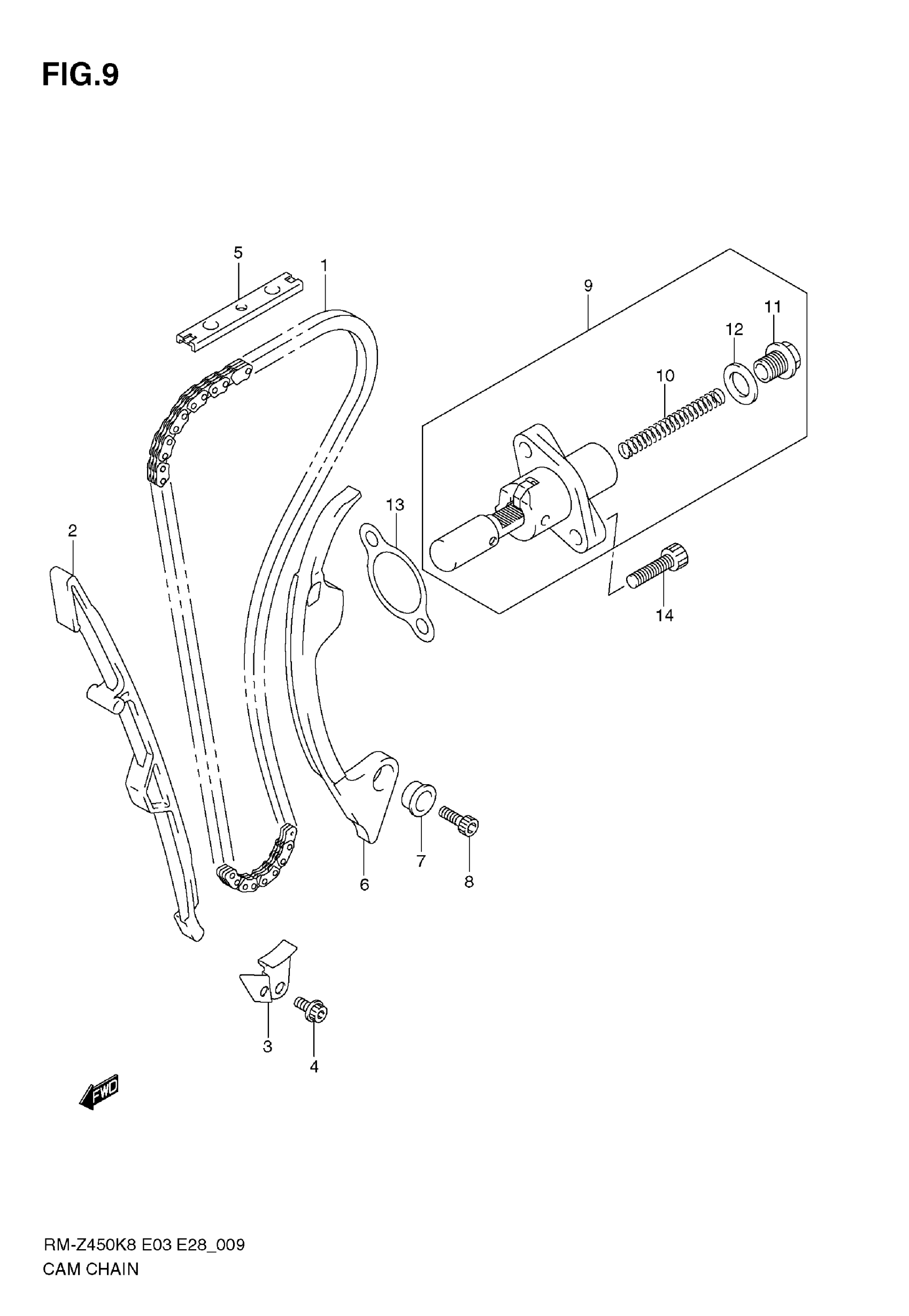

2009 Suzuki RM-Z450 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN,CAMSHAFT DRIVE (82RH201

12760-35G00

1
Out of stock

2

GUIDE, CAM CHAIN NO.1

12771-28H00

1
Out of stock

3

RETAINER

12773-28H00

1
Out of stock

4

.BOLT

07120-0610A

1
Out of stock

5

GUIDE,CAM CHAIN NO.2 This part replaces 12782-35G00.

12782-35G01

1
Out of stock

6

TENSIONER,CAM C This part replaces 12811-28H00.

12811-28H01

1
Out of stock

7

SPACER

12812-35G00

1
Out of stock

8

BOLT This part replaces 07130-0616A.

07130-0616B

1
Out of stock

9

ADJUSTER ASSY, TENSIONER | Includes Item(s) 10 - 12

12830-35G10

1
Out of stock

10

SPRING

12831-39F00

1
Out of stock

11

PLUG

12833-05A00

1
Out of stock

12

GASKET

12837-24F10

1
Out of stock

13

.GASKET,TENSIONER ADJUSTER

12837-24A10

1
Out of stock

14

BOLT (6X25)

07130-0625A

2
Out of stock
Camshaft - Valve →
