2009 Suzuki RM-Z450 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2009 Suzuki RM-Z450, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

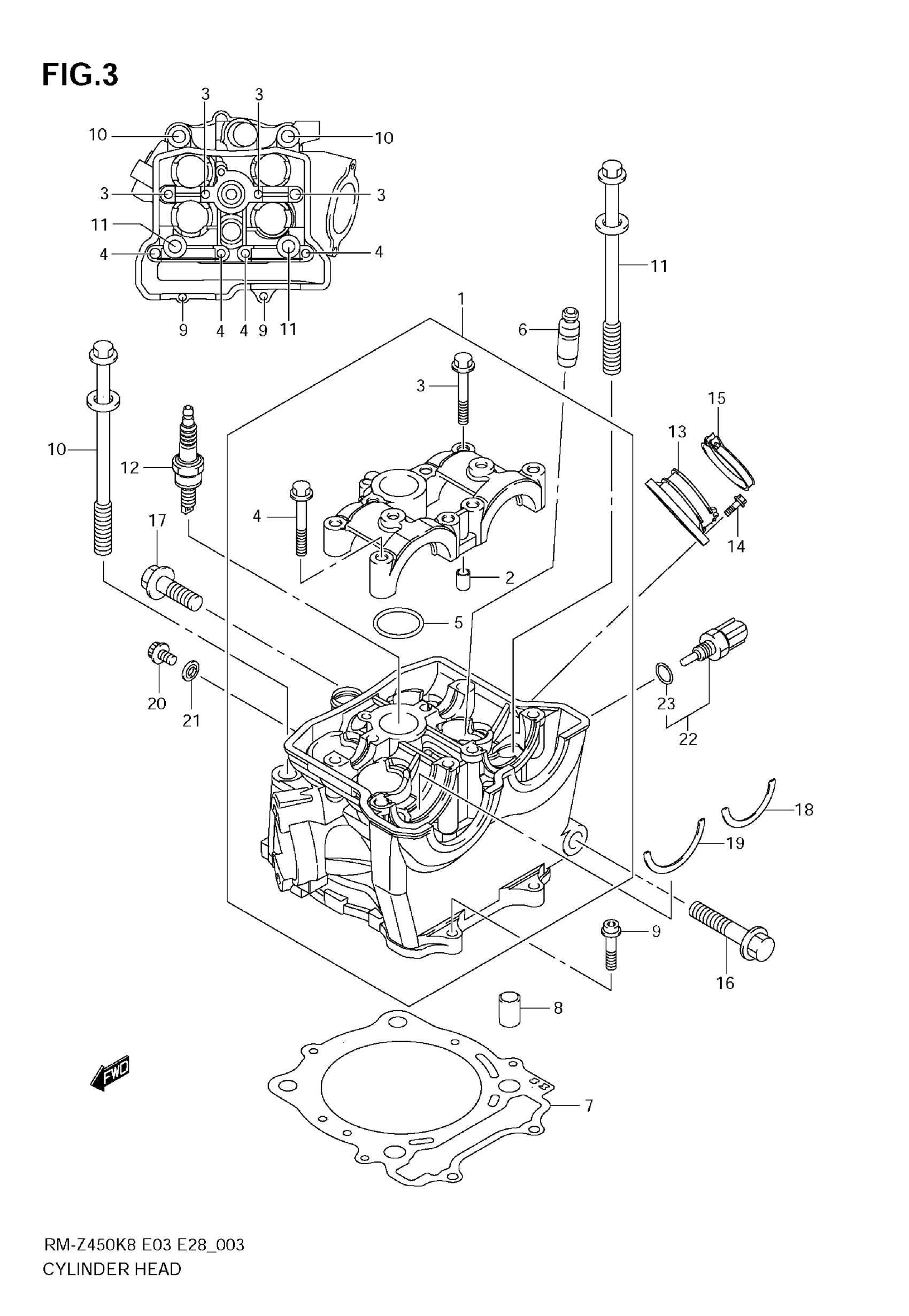

2009 Suzuki RM-Z450 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$1,320.38

In stock

2

PIN, CAMSHAFT HOUSING

09206-08001

2
Out of stock

3

BOLT, CAMSHAFT HOUSING (6X40)

09103-06266

4
Out of stock

4

4

$2.75

In stock

5

O RING

09280-26007

1

$6.41

In stock

6

4

$42.82

In stock

7

.GASKET,CYLINDER HEAD

11141-28H00

1

$32.90

In stock

8

PIN, CYL HEAD KNOCK

04211-13189

2
Out of stock

9

BOLT, CYLINDER HEAD (L25)

07120-0625A

2
Out of stock

10

2

$16.44

In stock

11

2

$9.29

In stock

13

1

$91.67

In stock

14

BOLT

01547-06207

2
Out of stock

15

CLAMP, INTAKE PIPE

09402-60901

1

$20.80

In stock

16

1

$7.68

In stock

17

1

$4.70

In stock

18

1

$3.55

In stock

19

C RING, EXHAUST

12749-10H00

1

$4.27

In stock

20

.BOLT

07120-0610A

1
Out of stock

21

GASKET

09168-06023

1
Out of stock

22

1

$53.34

In stock

23

.O RING

13655-14G00

1

$10.48

In stock
