2010 Suzuki RM-Z250L0 Gasket SET Diagram

← All diagrams

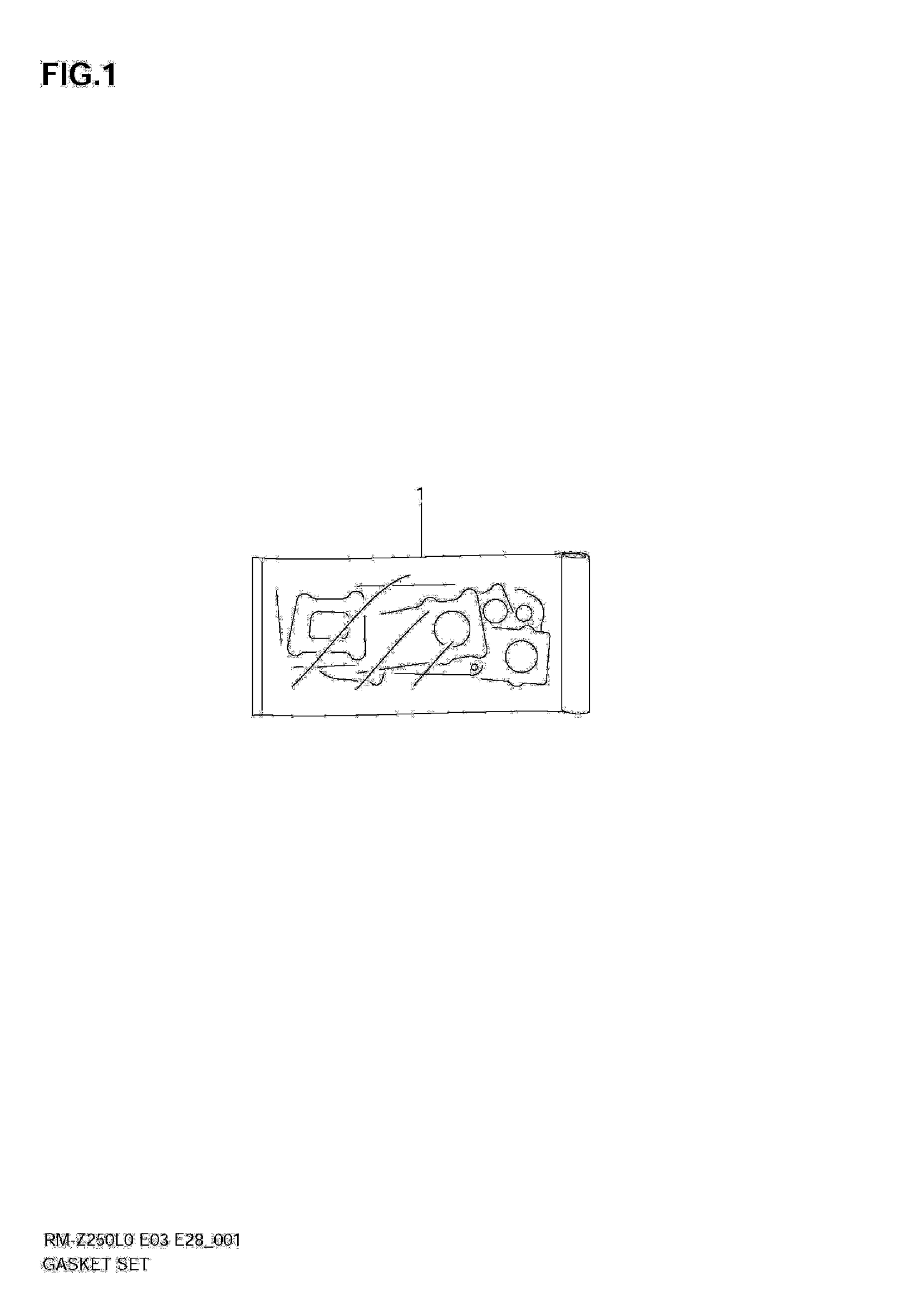

Find the part on the Gasket SET diagram for your 2010 Suzuki RM-Z250L0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki RM-Z250L0 Gasket SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET SET | OPT

11403-49860

1
Out of stock

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-49H00

1
Out of stock

3

GASKET, CYL HEAD COVER NO.1 | NOT SHOWN

11173-49H00

1
Out of stock

4

GASKET, CYL HEAD COVER NO.2 | NOT SHOWN

11178-49H00

1
Out of stock

5

GASKET, CYLINDER | NOT SHOWN

11241-49H00

1
Out of stock

6

GASKET, CRANKCASE | NOT SHOWN

11481-49H00

1
Out of stock

7

GASKET, CLUTCH COVER | NOT SHOWN

11482-10H00

1
Out of stock

8

GASKET, MAGNETO COVER | NOT SHOWN

11483-49H00

1
Out of stock

9

GASKET, CLUTCH COVER OUTER | NOT SHOWN

11484-10H00

1
Out of stock

10

GASKET, EXHAUST PIPE | NOT SHOWN

14181-49H00

1
Out of stock

11

O RING, WATER PUMP CASE | NOT SHOWN

17431-10H00

1
Out of stock
