2010 Suzuki RM-Z250L0 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2010 Suzuki RM-Z250L0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

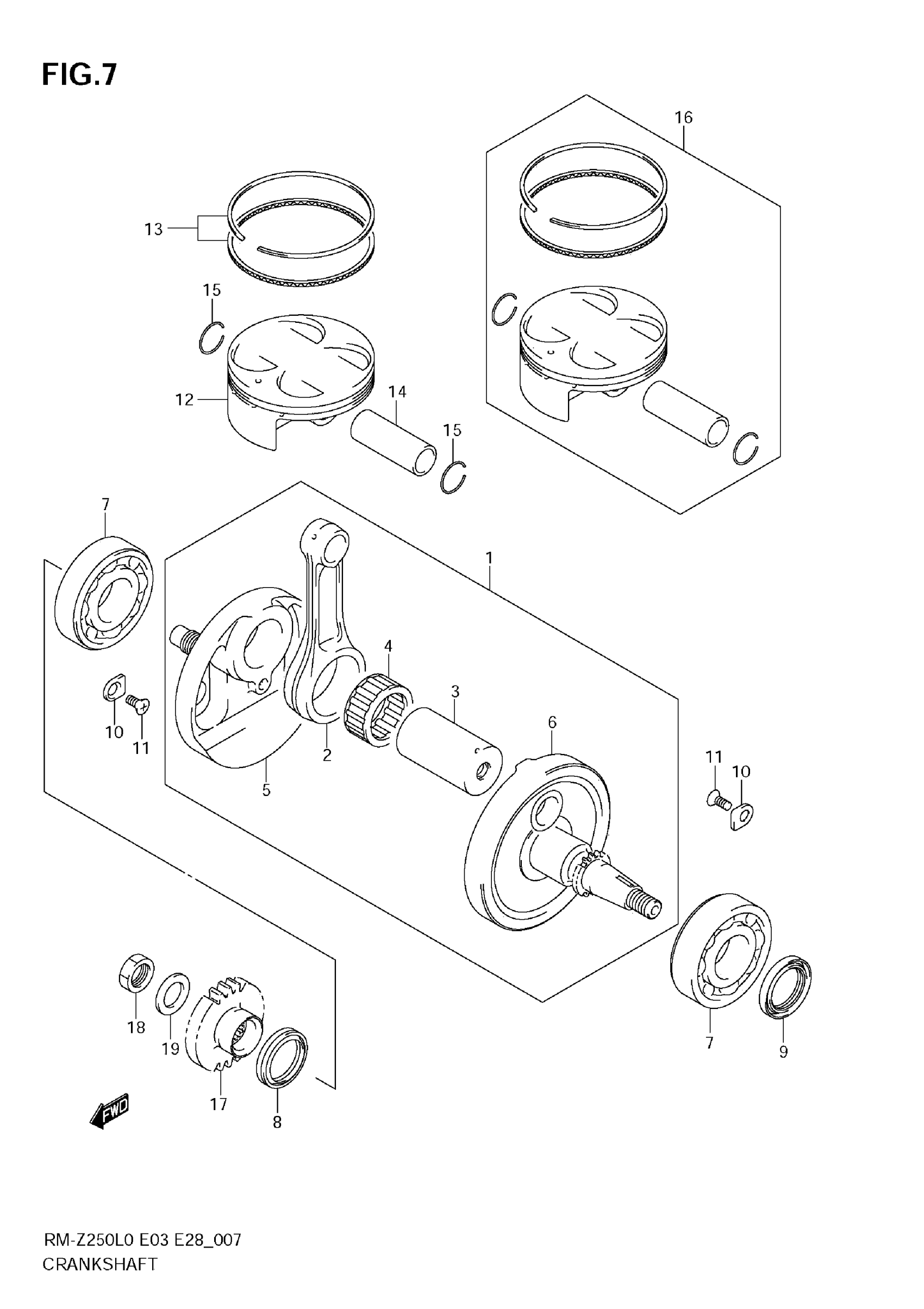

2010 Suzuki RM-Z250L0 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$923.07

In stock

2

ROD, CONNECTING

12161-49H00-0B0

1

$178.92

In stock

3

1

$87.52

In stock

4

BEARING

09263-30060-0B0

1

$106.40

In stock

5

CRANKSHAFT, RH

12220-49H00

1
Out of stock

6

CRANKSHAFT, LH

12261-49H00

1
Out of stock

7

BEARING, CRANKSHAFT

09262-30122

2

$84.01

In stock

8

1

$14.83

In stock

9

1

$9.12

In stock

10

RETAINER

24741-37F00

4

$5.33

In stock

11

SCREW

09126-06011

4
Out of stock

12

PISTON

12111-49H00-0F0

1

$273.43

In stock

13

RING SET, PISTON

12140-10810

1

$48.22

In stock

14

PIN, PISTON

12151-10H00

1

$19.62

In stock

15

CIRCLIP

09381-16001

2

$1.80

In stock

16

1

$307.90

In stock

17

GEAR, PRIMARY DRIVE

21111-49H00

1

$107.60

In stock

18

NUT

09140-16036

1

$16.05

In stock

19

WASHER

09164-16002

1
Out of stock
