2010 Suzuki RM-Z250L0 CAM Chain Diagram

← All diagrams

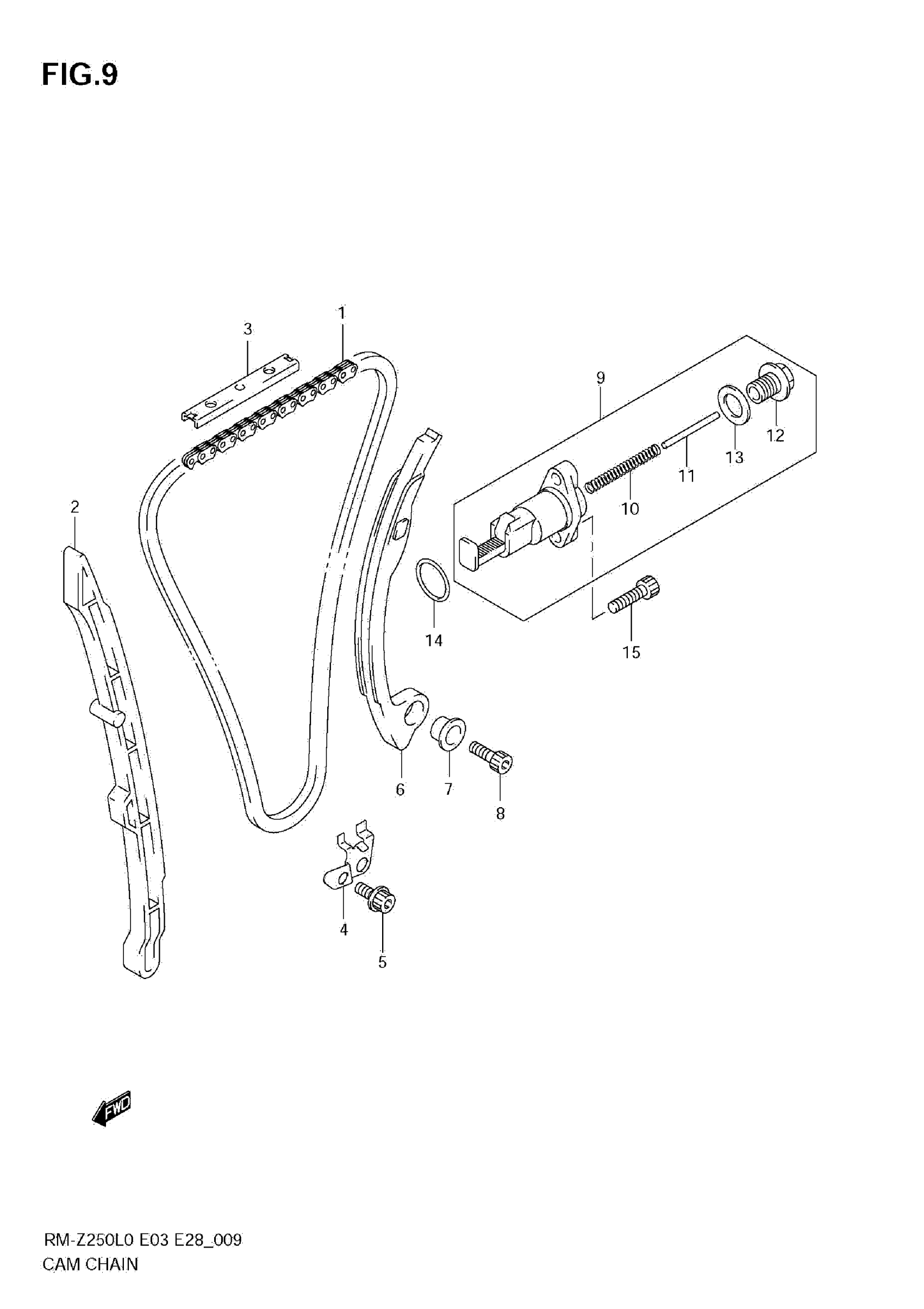

Find the part on the CAM Chain diagram for your 2010 Suzuki RM-Z250L0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2010 Suzuki RM-Z250L0 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$43.61

In stock

2

GUIDE, CAM CHAIN NO.1

12771-49H00

1

$31.02

In stock

4

1

$8.21

In stock

5

.BOLT

07120-0610A

1
Out of stock

6

1

$52.57

In stock

7

SPACER

12812-35G00

1

$17.12

In stock

8

BOLT This part replaces 07130-0616A.

07130-0616B

1
Out of stock

9

1

$147.72

In stock

10

SPRING

12831-10H00

1

$7.75

In stock

11

BAR

12836-10H00

1

$9.50

In stock

12

PLUG

12833-10H00

1

$24.38

In stock

13

GASKET

12837-24F10

1

$4.76

In stock

14

O RING, ADJUSTER

09280-19001

1

$1.49

In stock

15

BOLT (6X25)

07130-0625A

2

$2.85

In stock
