2010 Suzuki RM-Z250L0 Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 2010 Suzuki RM-Z250L0, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

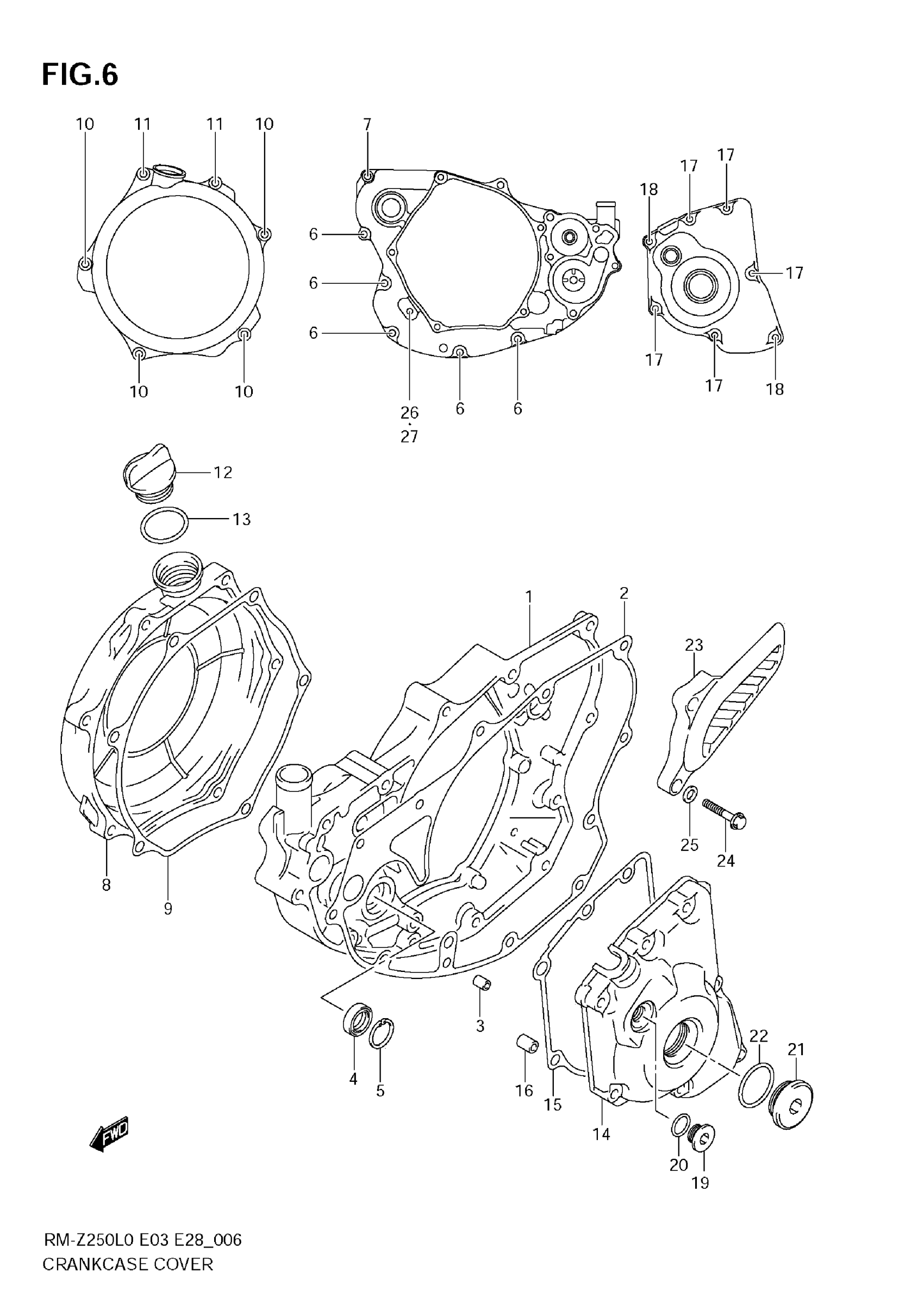

2010 Suzuki RM-Z250L0 Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CLUTCH INNER

11340-10H10

1
Out of stock

2

GASKET, CLUTCH COVER

11482-10H00

1

$19.59

In stock

3

PIN

04211-09109

2
Out of stock

4

SEAL,OIL (12X22X6)

09282-12012

1

$19.53

In stock

5

CIRCLIP This part replaces 08331-4124A.

08331-41249

1
Out of stock

6

BOLT (6X25)

01547-0625A

5
Out of stock

7

BOLT

01547-0630A

1

$2.48

In stock

8

COVER, CLUTCH OUTER

11371-10H00

1
Out of stock

9

1

$13.99

In stock

10

BOLT, OUTER COVER (6X25)

01547-0625A

4
Out of stock

11

2

$2.92

In stock

12

1

$7.27

In stock

13

O RING

09280-17003

1
Out of stock

14

COVER, MAGNETO

11351-49H00

1

$307.05

In stock

15

GASKET, MAGNETO COVER

11483-49H00

1

$12.50

In stock

16

PIN

04211-09109

2
Out of stock

17

BOLT

01547-0630A

5

$2.48

In stock

18

BOLT (6X35)

01547-0635A

2
Out of stock

19

PLUG, T.D.C.

09248-12007

1
Out of stock

20

O RING (D:1.9,ID:9.8)

09280-10016

1
Out of stock

21

PLUG, CRANK HOLE

09259-26011

1

$10.69

In stock

22

O RING (D:3.1,ID:22.7)

09280-22008

1
Out of stock

23

1

$31.68

In stock

24

BOLT

01547-0630A

2

$2.48

In stock

25

WASHER

08322-0106B

2
Out of stock

26

.BOLT

07120-0610A

1
Out of stock

27

GASKET

09168-06023

1
Out of stock
