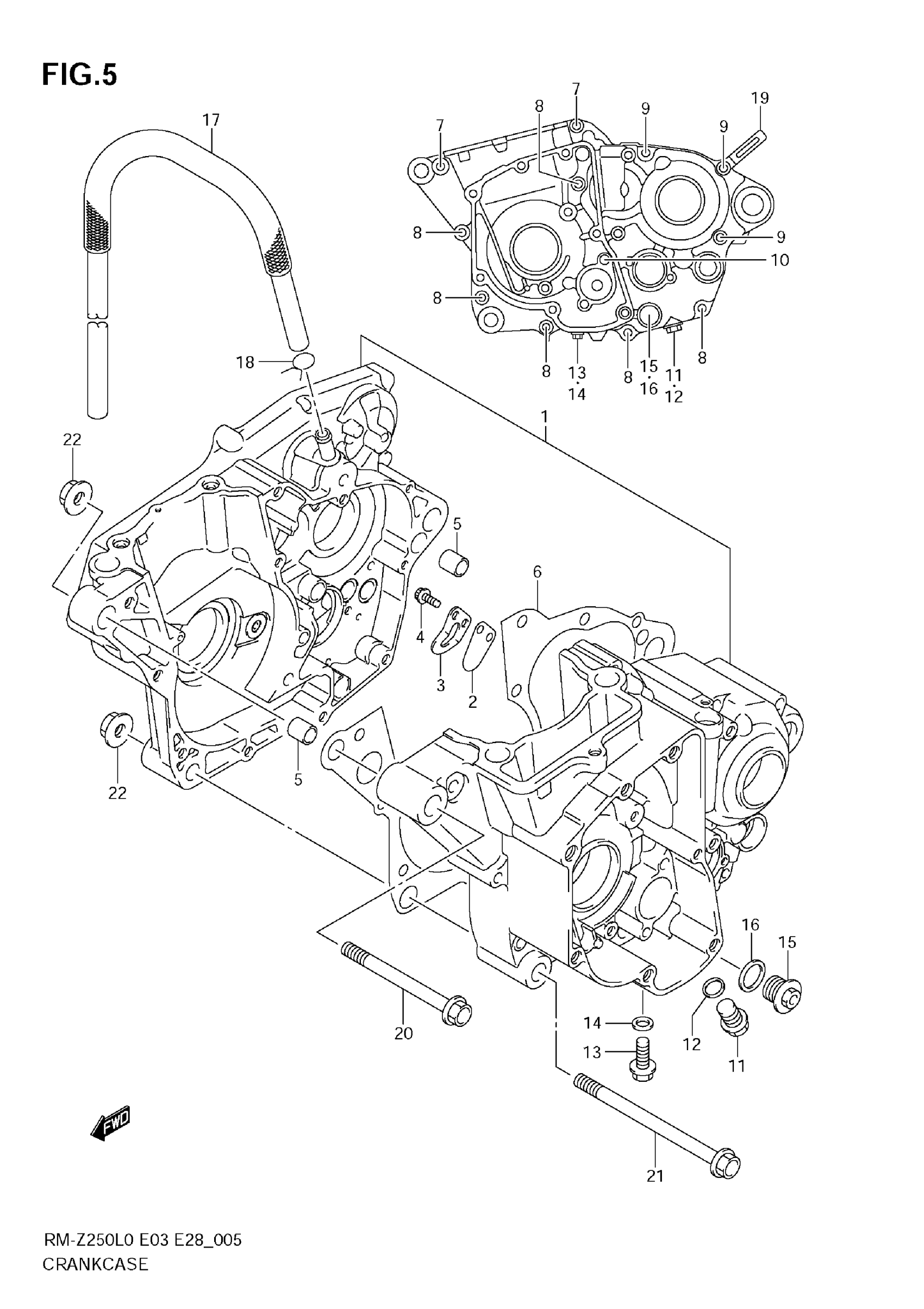

Suzuki RM-Z250L0 (2010) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY This part replaces 11301-49810.

11301-49811

Unavailable

2

VALVE, CRANKCASE REED

11322-35G00

$11.83

3

STOPPER, CRANKCASE REED VALVE

11323-35G00

$10.62

4

BOLT

07120-0512A

$2.38

5

PIN, CRANKCASE

09206-13020

$2.44

6

GASKET, CRANKCASE

11481-49H00

$28.88

7

BOLT, CRANKCASE

01547-0640A

$2.38

8

BOLT

01547-0650A

$2.51

9

BOLT, CRANKCASE

01547-0670A

$2.80

10

BOLT, CRANKCASE

01547-0680A

$3.58

11

PLUG, OIL DRAIN

09247-12012

$6.40

12

GASKET

09168-12002

$1.63

13

PLUG, OIL DRAIN NO.2

09103-08254

$3.30

14

GASKET

09168-08034

$2.12

15

CAP, ENG OIL STRAINER

16316-10H01

$25.69

16

GASKET

09168-16002

$1.97

17

HOSE,BREATHER This part replaces 11332-35G11.

11332-49H11

$25.25

18

CLIP, BREATHER HOSE

09401-13301

$2.95

19

CLAMP, BREATHER HOSE

09404-06429

$1.88

20

BOLT (10X96)

09103-10387

$8.48

21

BOLT (10X120)

09103-10388

$5.64

22

NUT

09159-10078

$2.81
