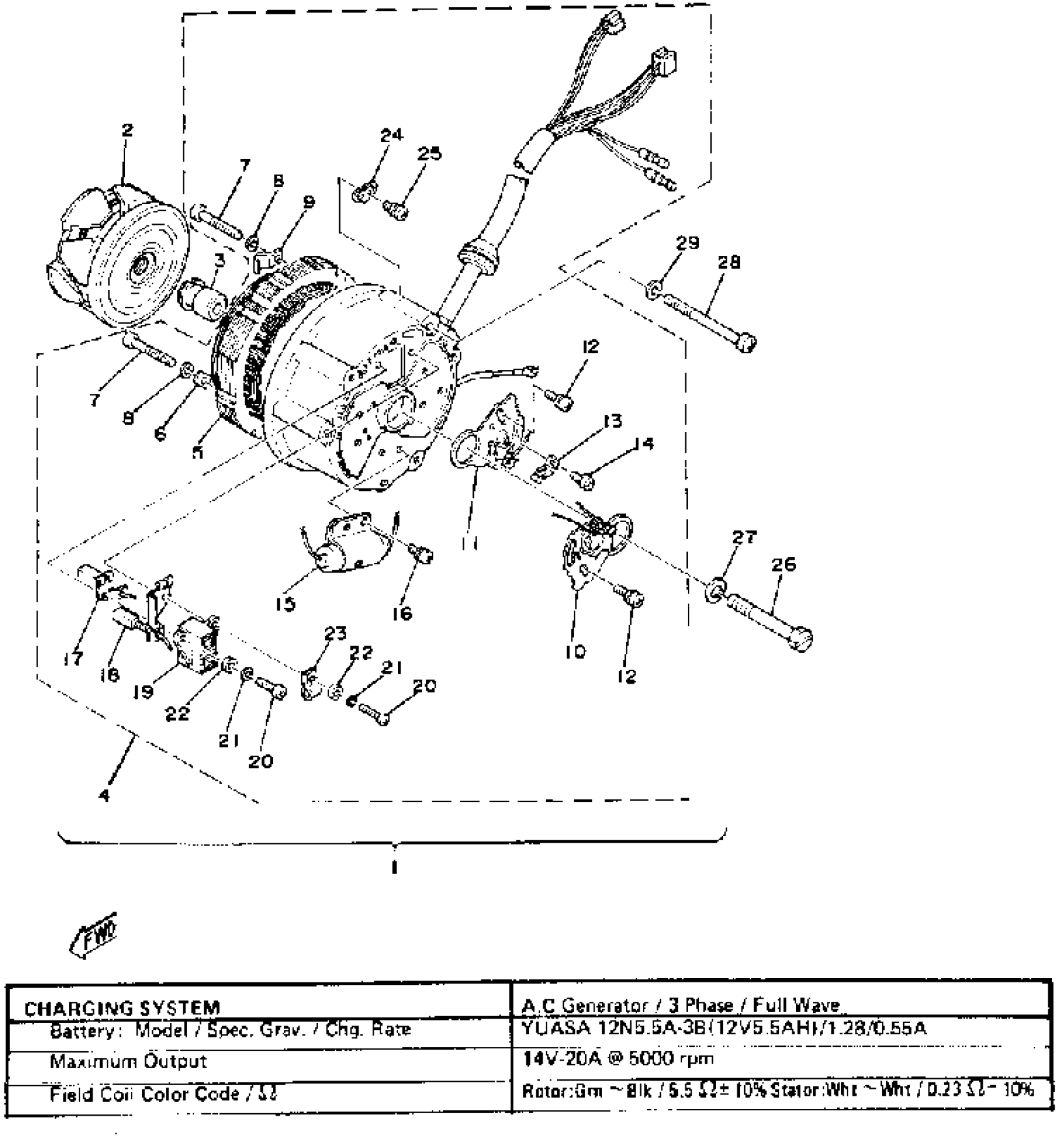

Find the part on the A - C - Generator diagram for your 1979 Yamaha RD400 (RD400F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha RD400 (RD400F) A - C - Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

AC GENERATOR ASSEMBLY

(2V0-81600-60-00)

1
Out of stock

2

. ROTOR ASSEMBLY

1A0-81650-20-00

1
Out of stock

3

. CAM

1A0-81651-20-00

1
Out of stock

4

STATOR ASSEMBLY

(2V0-81610-60-00)

1
Out of stock

5

.. ARMATURE ASSEMBLY

1A0-81640-60-00

1
Out of stock

6

PLATE, ARMTR FTNG

(1A0-81639-20-00)

1
Out of stock

7

SCREW, PAN

98507-05035-00

1

$6.69

In stock

8

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

9

BRACKET, CONDENSER

(1A0-81627-20-00)

1
Out of stock

10

.. CONTACT BRKR ASSEMBLY

2V0-81621-60-00

1
Out of stock

11

.. CONTACT BRKR ASSEMBLY

2V0-81622-60-00

1
Out of stock

12

SCREW, PAN HEAD

98511-04012-00

1
Out of stock

13

LUBRICATOR

(131-81231-20-00)

1
Out of stock

14

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

15

.. CONDENSER 1

360-81625-90-00

1
Out of stock

16

SCREW, PAN HEAD

110-81346-21-00

—

$4.32

In stock

17

. BRUSH 1

1A0-81611-20-00

1
Out of stock

18

.. BRUSH 2

1A0-81612-20-00

1
Out of stock

19

.. HOLDER, BRUSH

1A0-81613-20-00

1
Out of stock

20

SCREW, PAN HEAD

98507-04018-00

—
Out of stock

21

YBS67-4 WASHER, SPRING

92990-04100-00

—

$0.60

In stock

22

SPACER

(1A0-81661-20-00)

1
Out of stock

23

CLAMP

(1A0-81628-20-00)

1
Out of stock

24

PLATE, TIMING

(1A0-81632-20-00)

1
Out of stock

25

SCREW, PAN HEAD

110-81346-21-00

—

$4.32

In stock

26

BOLT

90101-07438-00

1
Out of stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

28

SCREW PAN HEAD

98580-06570-00

—

$17.32

In stock

29

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
